Diagnostic Trouble Code Chart

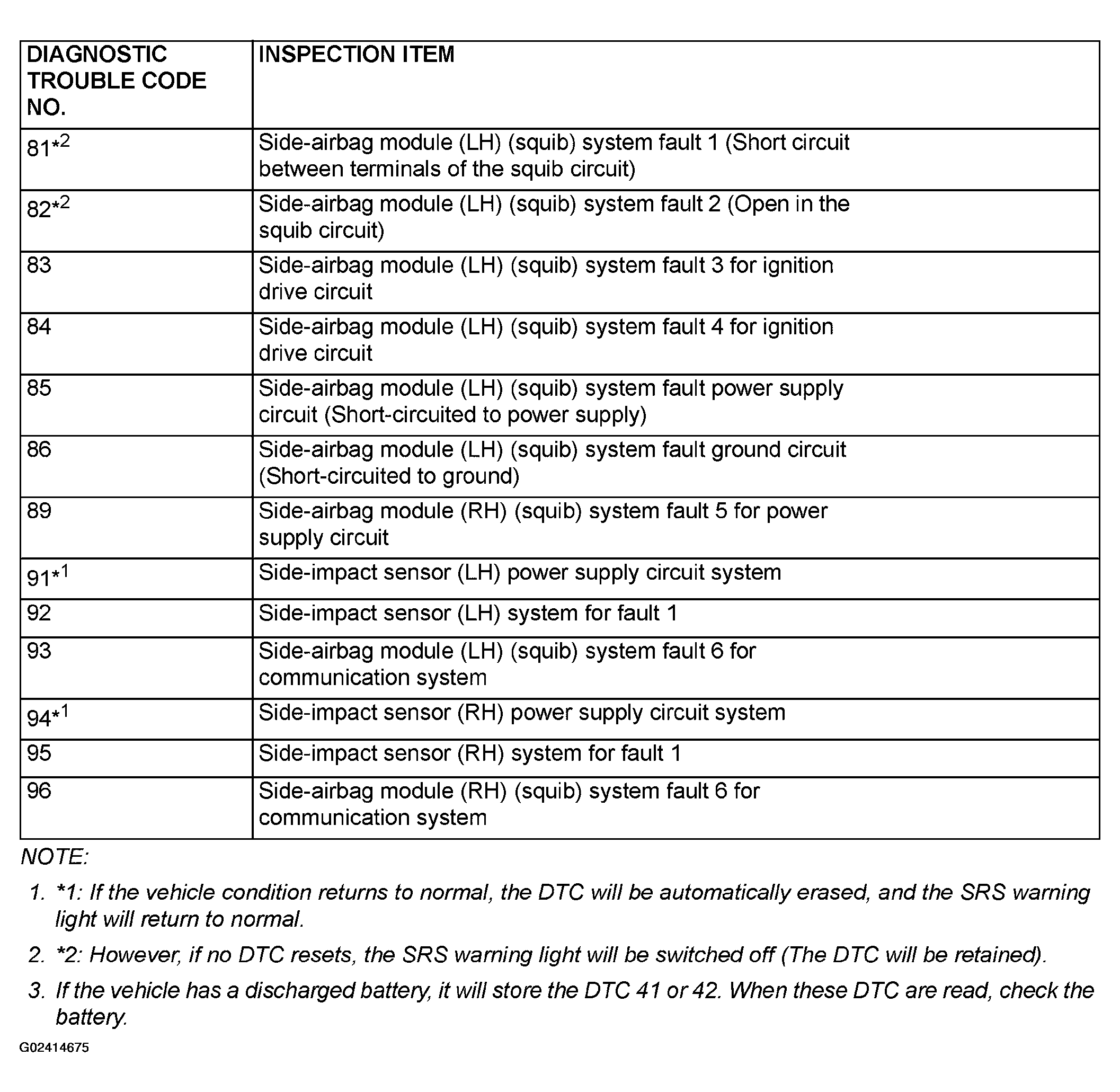

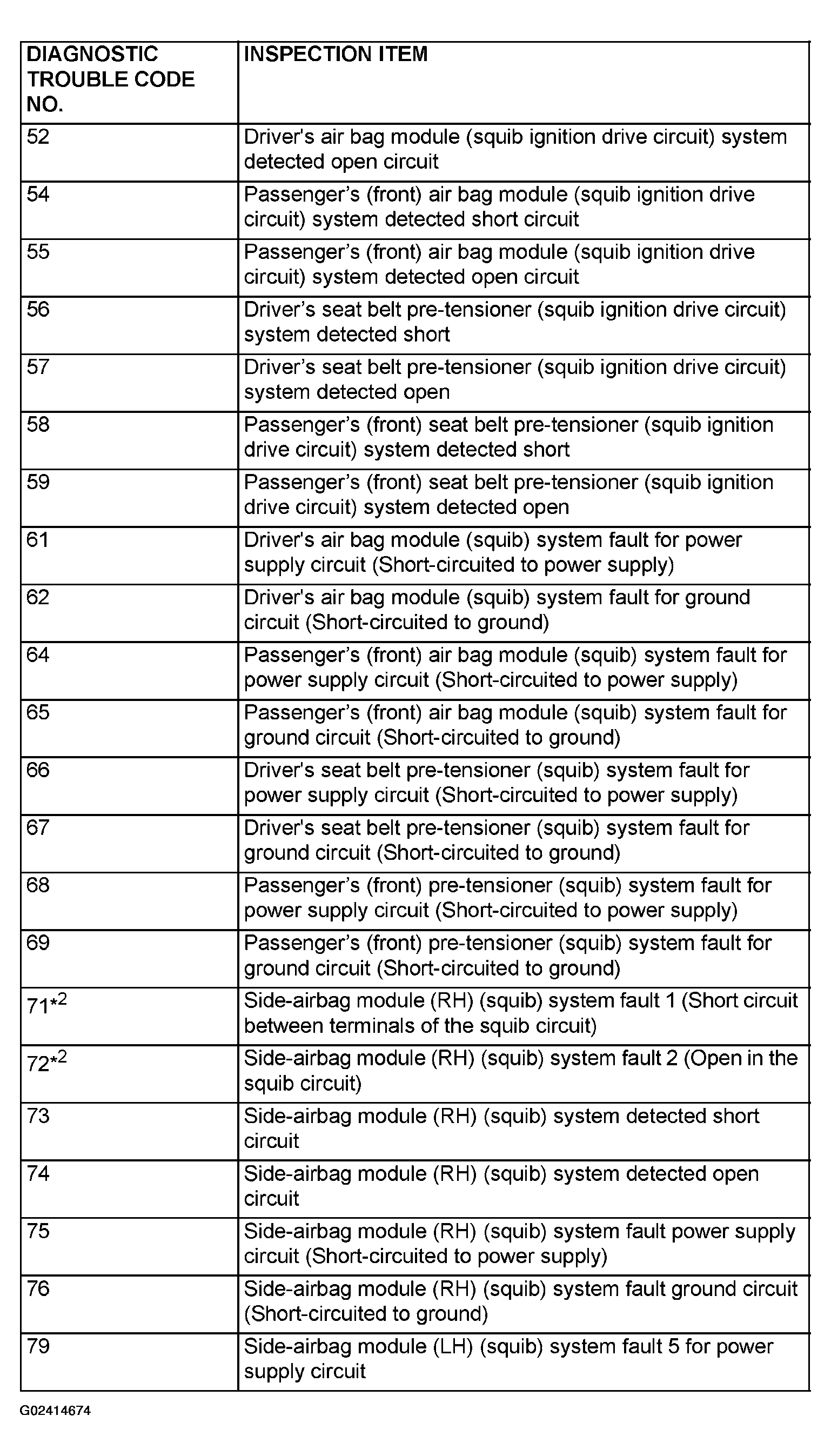

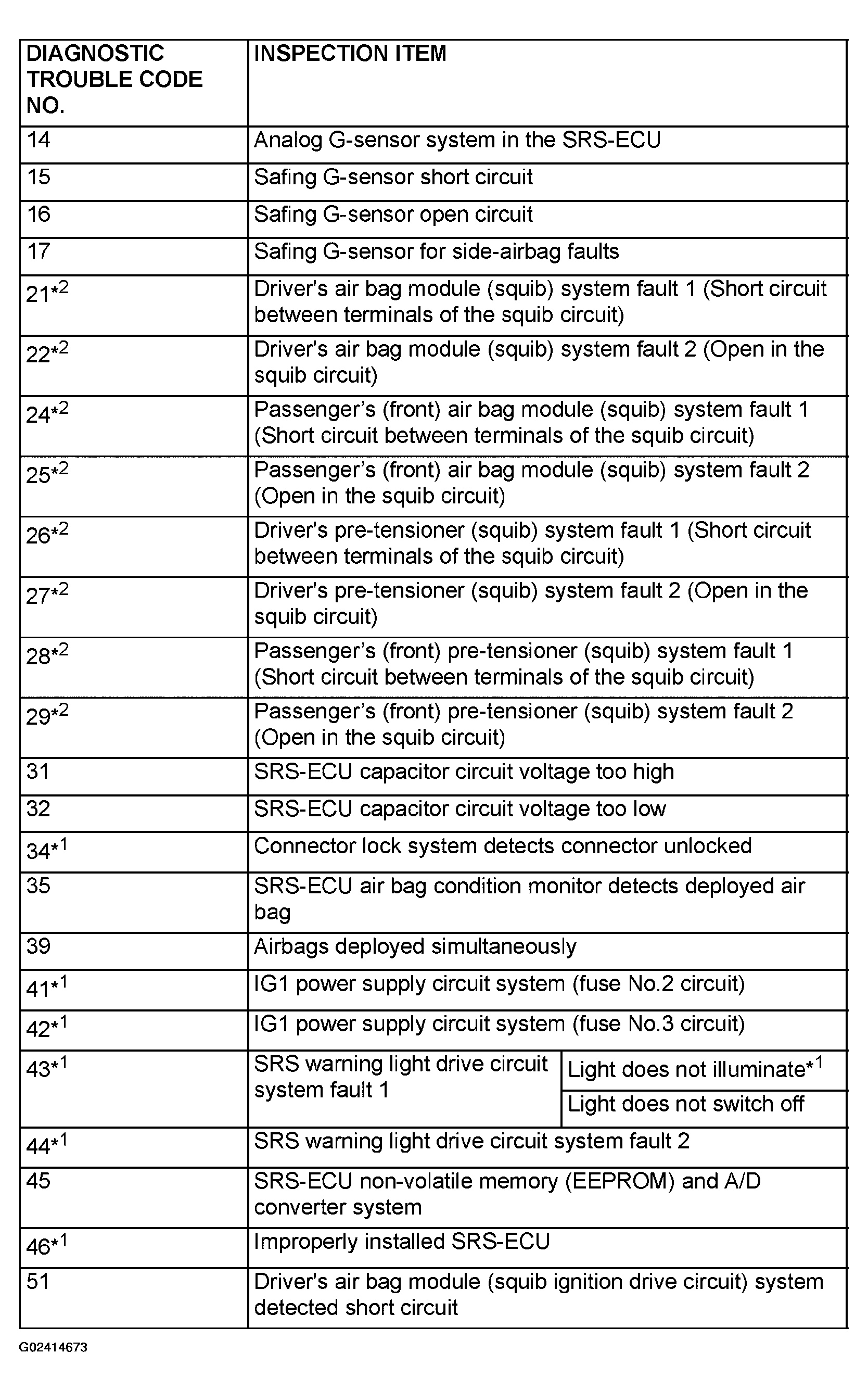

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC 14, 15, 16, 17, 31, 32, 45, 51, 52, 54, 55, 56, 57, 58, 59, 73, 74, 83, 84 | Analog G-Sensor System in the SRS-ECU, Safing G-Sensor Short/Open Circuit, Safing G-Sensor for Side-Airbag Faults, SRS-ECU Capacitor Circuit Voltage too High/Low, SRS-ECU Non-Volatile Memory (EEPROM) and A/D Converter System, Driver's Air Bag Module (Squib Ignition Drive Circuit) System Detected Short/Open Circuit, Passenger's (Front) Air Bag Module (Squib Ignition Drive Circuit) System Detected Short/Open Circuit, Driver's Seat Belt Pre-tensioner (Squib Ignition Drive Circuit) System Detected Short/Open Circuit, Passenger's Seat Belt Pre-tensioner (Squib Ignition Drive Circuit) System Detected Short/Open Circuit, Side-Airbag Module (RH) (Squib) System Detected Short/Open Circuit, Side-Airbag Module (LH) (Squib) System Fault 3/4 for Ignition Drive Circuit |
| DTC 21 | Driver's Air Bag Module (Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit) |
| DTC 22 | Driver's Air Bag Module (Squib) System Fault 2 (Open in the Squib Circuit) |
| DTC 24 | Passenger's (Front) Air Bag Module (Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit) |
| DTC 25 | Passenger's (Front) Air Bag Module (Squib) System Fault 2 (Open in the Squib Circuit) |
| DTC 26 | Driver's Seat Belt Pre-Tensioner (Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit) |
| DTC 27 | Driver's Seat Belt Pre-Tensioner (Squib) System Fault 2 (Open in the Squib Circuit) |
| DTC 28 | Passenger's (Front) Seat Belt Pre-Tensioner (Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit) |
| DTC 29 | Passenger's (Front) Seat Belt Pre-Tensioner (Squib) System Fault 2 (Open in the Squib Circuit) |
| DTC 34 | Connector Lock System Detects Connector Unlocked |
| DTC 35 | SRS-ECU Air Bag Condition Monitor Detects Deployed Air Bag |
| DTC 39 | Airbags Deployed Simultaneously |
| DTC 41 | IG1 Power Supply Circuit System (Fuse No.2 Circuit) |
| DTC 42 | IG1 Power Supply Circuit System (Fuse No.3 Circuit) |
| DTC 43 | SRS Warning Light Drive Circuit System Fault 1 (Light does not Illuminate). |
| DTC 43 | SRS Warning Light Drive Circuit System Fault 1 (Light does not Switch Off). |
| DTC 44 | SRS Warning Light Drive Circuit System Fault 2 |
| DTC 46 | Improper Installation Of Srs-Ecu |
| DTC 61 | Driver's Air Bag Module (Squib) System Fault for Power Supply Circuit (Short-Circuited to Power Supply) |
| DTC 62 | Driver's Air Bag Module (Squib) System Fault for Ground Circuit (Short-Circuited to Ground) |
| DTC 64 | Passenger's (Front) Air Bag Module (Squib) System Fault for Power Supply Circuited (Short-Circuit to Power Supply) |
| DTC 65 | Passenger's (Front) Air Bag Module (Squib) System Fault for Ground Circuit (Short-Circuited to Ground) |
| DTC 66 | Driver's Seat Belt Pre-Tensioner (Squib) System Fault for Power Supply Circuit (Short-Circuit to Power Supply) |
| DTC 67 | Driver's Seat Belt Pre-Tensioner (Squib) System Fault for Ground Circuit (Short-Circuited to Ground) |
| DTC 68 | Passenger's Seat Belt Pre-Tensioner (Squib) System Fault for Power Supply Circuit (Short-Circuited to Power Supply) |
| DTC 69 | Passenger's Seat Belt Pre-Tensioner (Squib) System Fault for Ground Circuit (Short-Circuit to Ground) |
| DTC 71 | Side-Airbag Module (RH) (Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit) |
| DTC 72 | Side-Airbag Module (RH) (Squib) System Fault 2 (Open in the Squib Circuit) |
| DTC 75 | Side-Airbag Module (RH) (Squib) System Fault Power Supply Circuit (Short-Circuited to Power Supply) |
| DTC 76 | Side-Airbag Module (RH) (Squib) System Fault Ground Circuit (Short-Circuited to Ground) |
| DTC 79, 93 | Side-Airbag Module (LH) (Squib) System Fault 5 for Power Supply Circuit & Side-Airbag Module (LH) (Squib) System Fault 6 for Communication System |
| DTC 81 | Side-Airbag Module (LH) (Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit) |
| DTC 82 | Side-Airbag Module (LH) (Squib) System Fault 2 (Open in the Squib Circuit) |
| DTC 85 | Side-Airbag Module (LH) (Squib) System Fault Power Supply Circuit (Short-Circuited to Power Supply) |
| DTC 86 | Side-Airbag Module (LH) (Squib) System Fault Ground Circuit (Short-Circuited to Ground) |
| DTC 89, 96 | Side-Airbag Module (RH) (Squib) System Fault 5 for Power Supply Circuit & Side-Airbag Module (RH) (Squib) System Fault 6 for Communication System |
| DTC 91 | Side Impact Sensor (LH) Power Supply Circuit System |
| DTC 92, 95 | Side Impact Sensor (LH/RH) System for Fault 1 |
| DTC 94 | Side Impact Sensor (RH) Power Supply Circuit System |
Inspect according to the inspection chart that is appropriate for the DTC.
