DTC 24: Passenger's (Front) Air Bag Module (Squib) System Fault 1 (Short Circuit between Terminals of the Squib Circuit): Notes

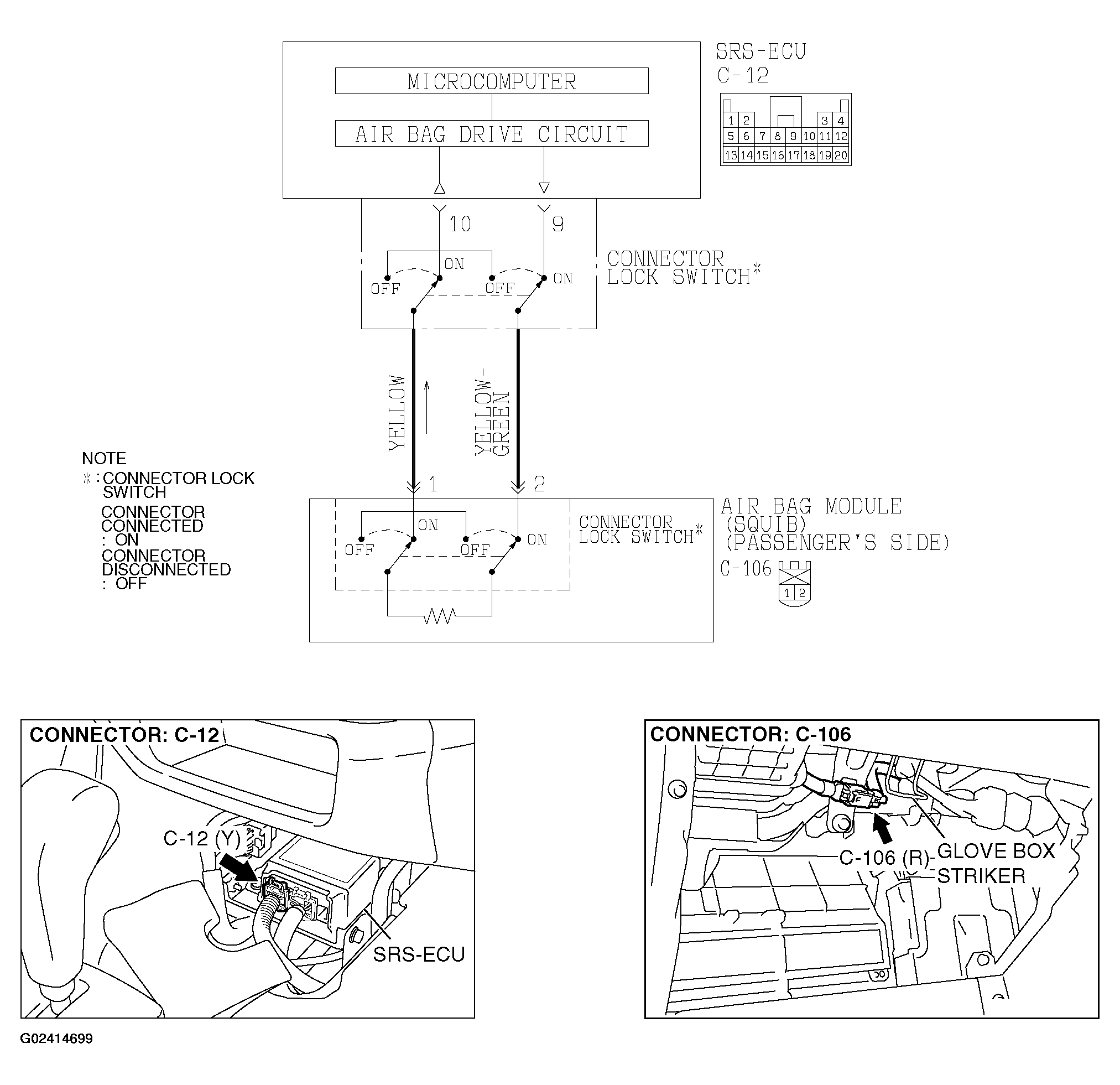

Fig 1: Passenger'S (Front) Air Bag Module (Squib) Circuit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
