DTC 43: SRS Warning Light Drive Circuit System Fault 1 (Light does not Switch Off).: Diagnosis
Required Special Tools:
- MB991958: Scan Tool (MUT-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: MUT-III USB Cable
- MB991911: MUT-III Main Harness B (Vehicles without CAN communication system)

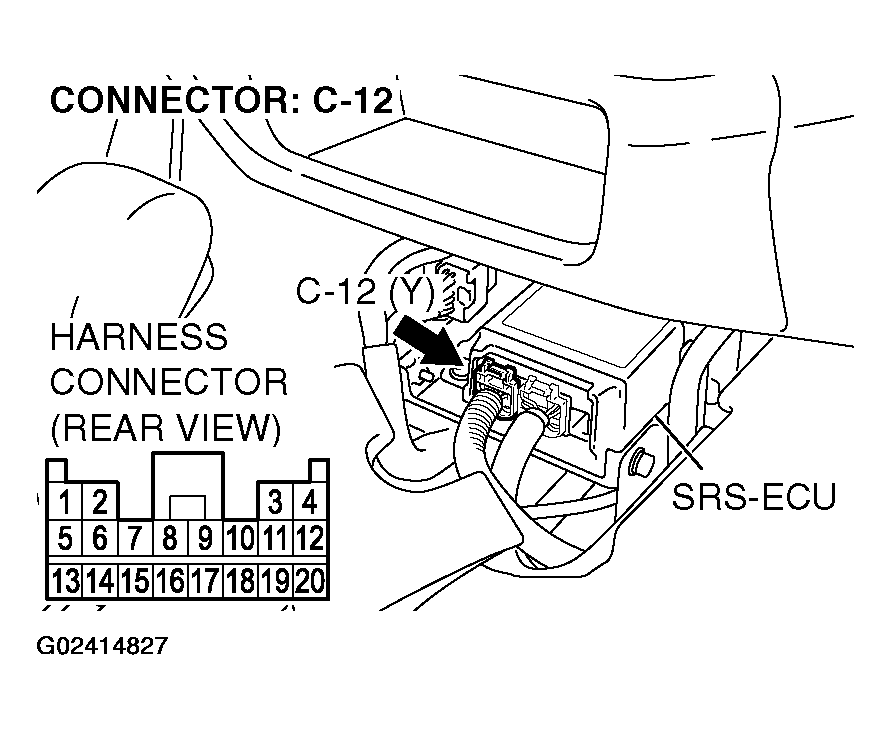

- STEP 1. Check SRS-ECU connector C-12 for damage.
- Disconnect SRS-ECU connector C-12.

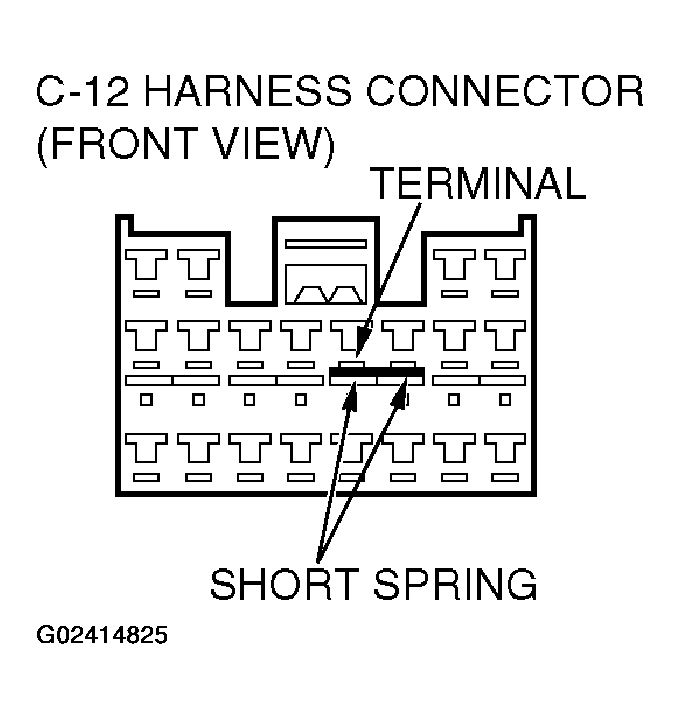

- Check the short spring for warning light inside the harness connector for improper contact or deformation.
Q: Is SRS-ECU connector C-12 in good condition?
- YES: Then go to Step 2.
- NO: Repair or replace the SRS-ECU connector C-12 (Refer to SRS CONTROL UNIT (SRS-ECU) .) Then go to Step 4.
- STEP 2. Check the SRS warning light.
- Disconnect the negative battery cable.
- Disconnect the combination meter connector C-02.
- Connect the negative battery cable.
- Turn the ignition switch to the "ON" position.
Q: Does the SRS warning light go out?
- YES: Go to Step 3.
- NO: Replace the combination meter (Refer to COMBINATION METER ASSEMBLY .) Then go to Step 4.

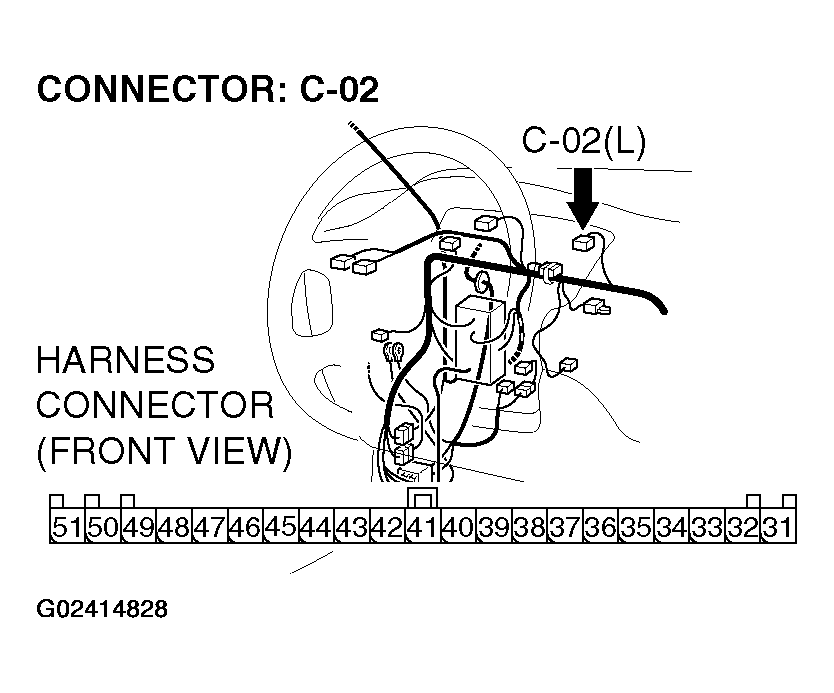

- STEP 3. Check the harness for short circuit to ground between SRS-ECU connector C-12 (terminal No.8) and combination meter connector C-02 (terminal No.36.)
Q: Is the harness wire between the SRS-ECU connector C-12 (terminal No.8) and combination meter connector C-02 (terminal No.36) in good condition?
- YES: Erase the diagnostic trouble code memory, and check the diagnostic trouble code. If DTC 43 sets, replace the SRS-ECU (Refer to SRS CONTROL UNIT (SRS-ECU) .) Then go to Step 4.
- NO: Repair the harness wire between SRS-ECU connector C-12 and combination meter connector C-02. Then go to Step 4.
- STEP 4. Recheck for diagnostic trouble code.
Q: Is DTC 43 set?
- YES: Return to Step 1.
- NO: The procedure is complete (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION .)
