DTC 79, 93: Side-Airbag Module (LH) (Squib) System Fault 5 for Power Supply Circuit & Side-Airbag Module (LH) (Squib) System Fault 6 for Communication System: Notes

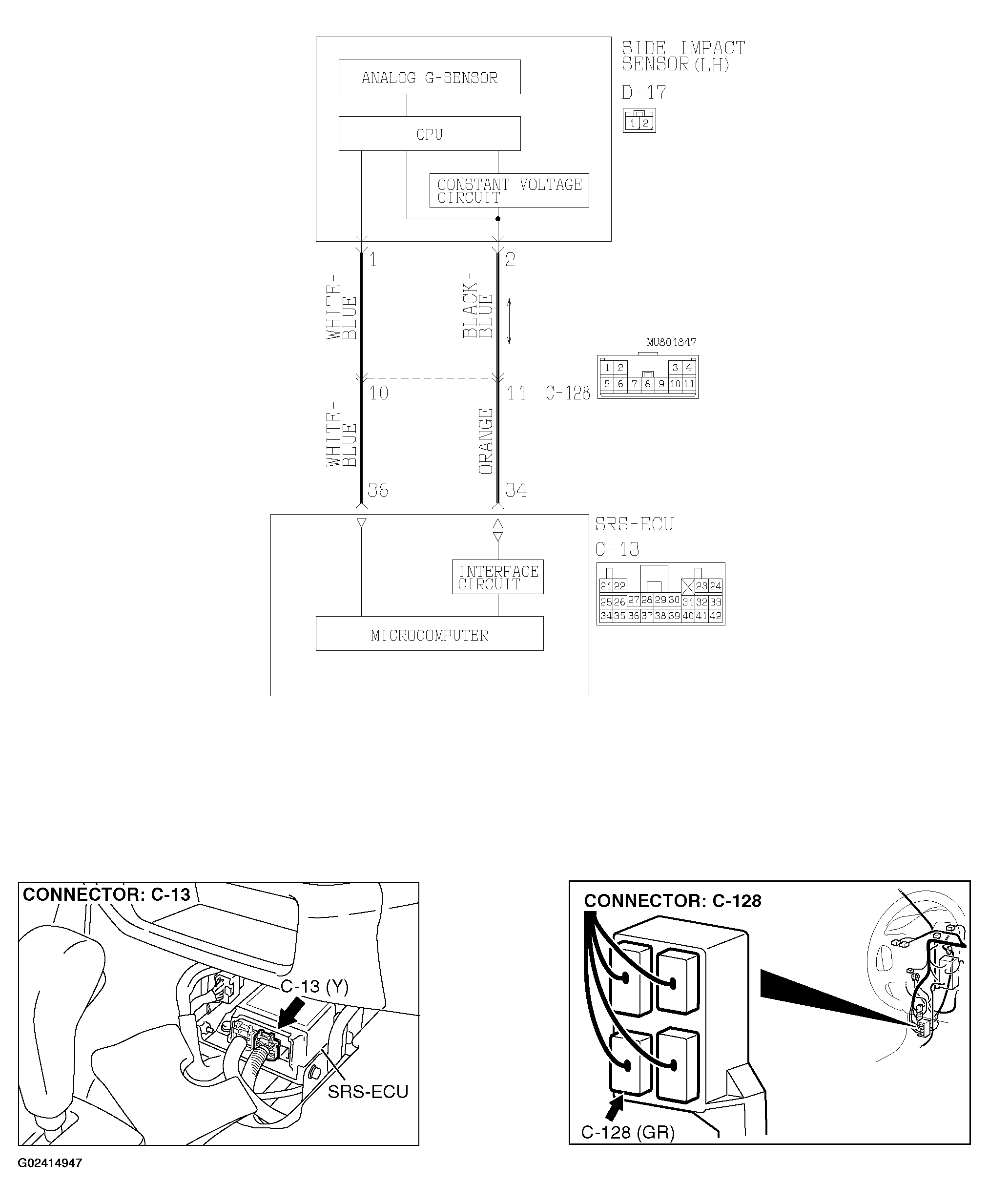

Fig 1: Side Impact Sensor (LH) Power Supply Circuit
G02414947Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

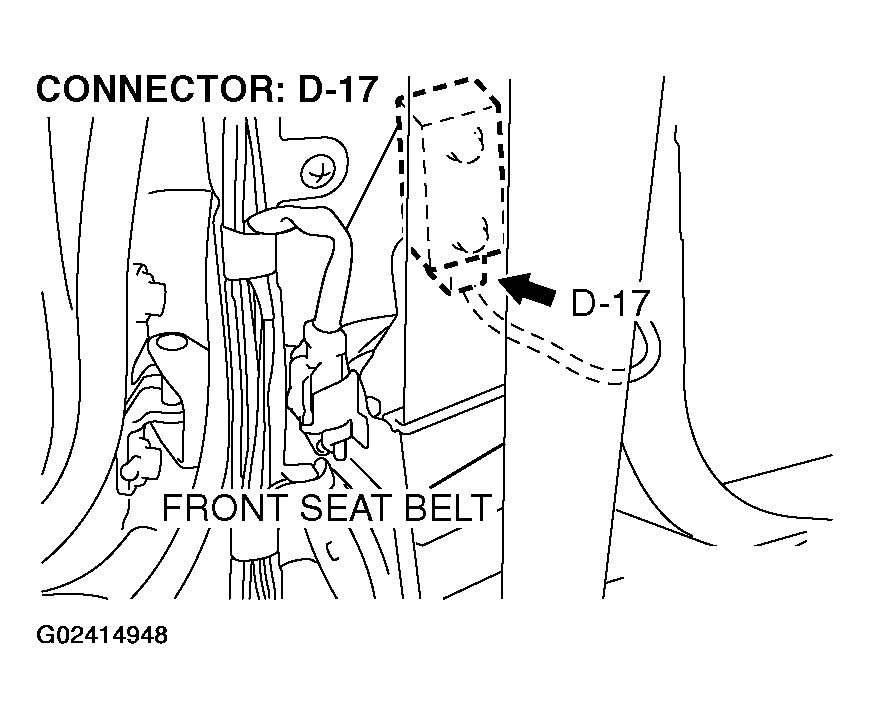

Fig 2: Identifying Harness Connector D-17
G02414948Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
