DTC 86: Side-Airbag Module (LH) (Squib) System Fault Ground Circuit (Short-Circuited to Ground): Notes

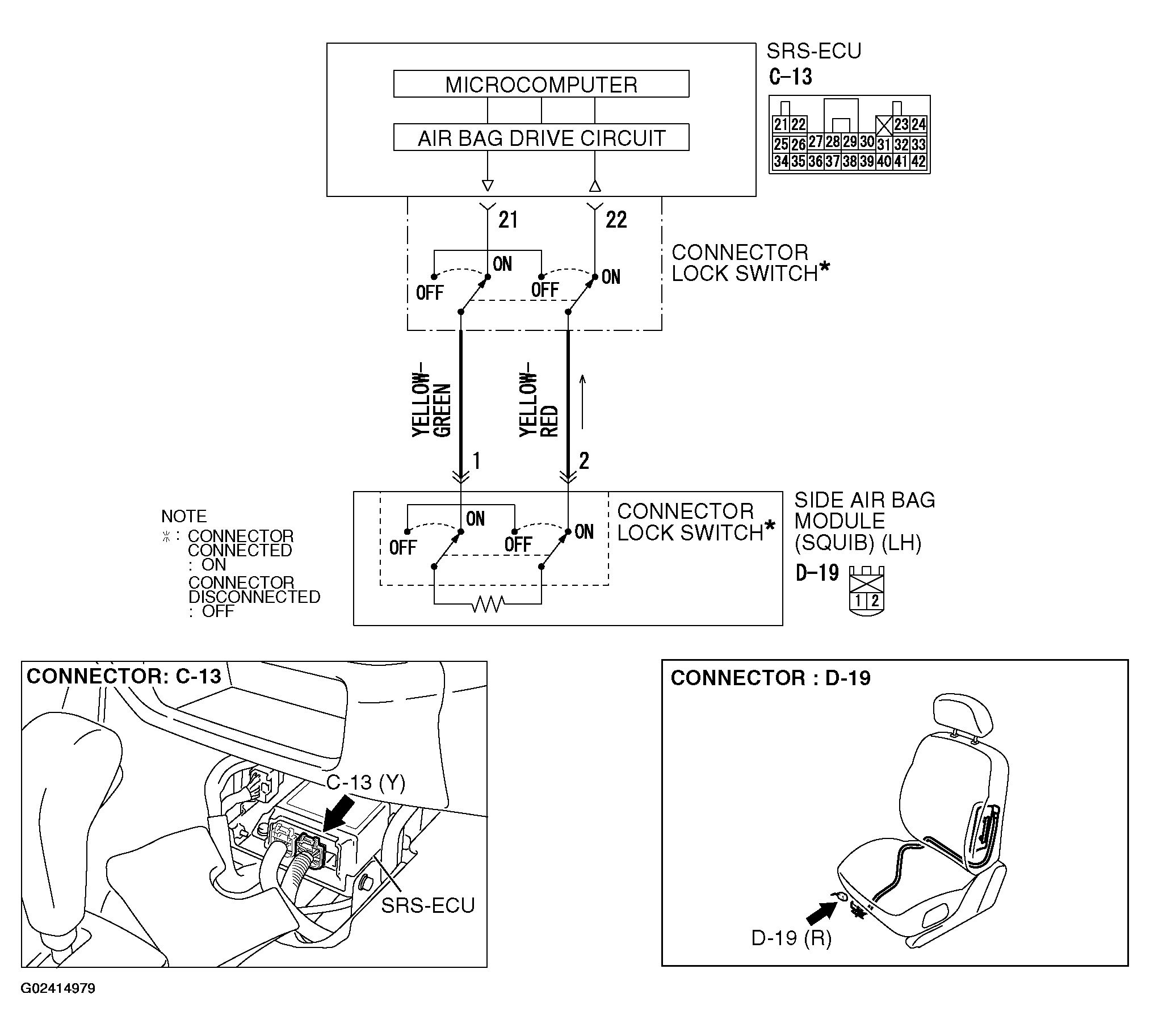

Fig 1: Side-Airbag Module (LH) (Squib) Circuit
G02414979Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
