Removal And Installation: Notes

WARNING:
  • Never attempt to disassemble or repair the SRS-ECU. If faulty, replace it.
  • Do not drop or subject the SRS-ECU to impact or vibration. If denting, cracking, deformation, or rust are discovered in the SRS-ECU, replace it with a new SRS-ECU. Discard the old one.
  • After deployment of an air bag, replace the SRS-ECU with a new one.
  • Never use an ohmmeter on or near the SRS-ECU, and use only the special test equipment described on P.52B-195.

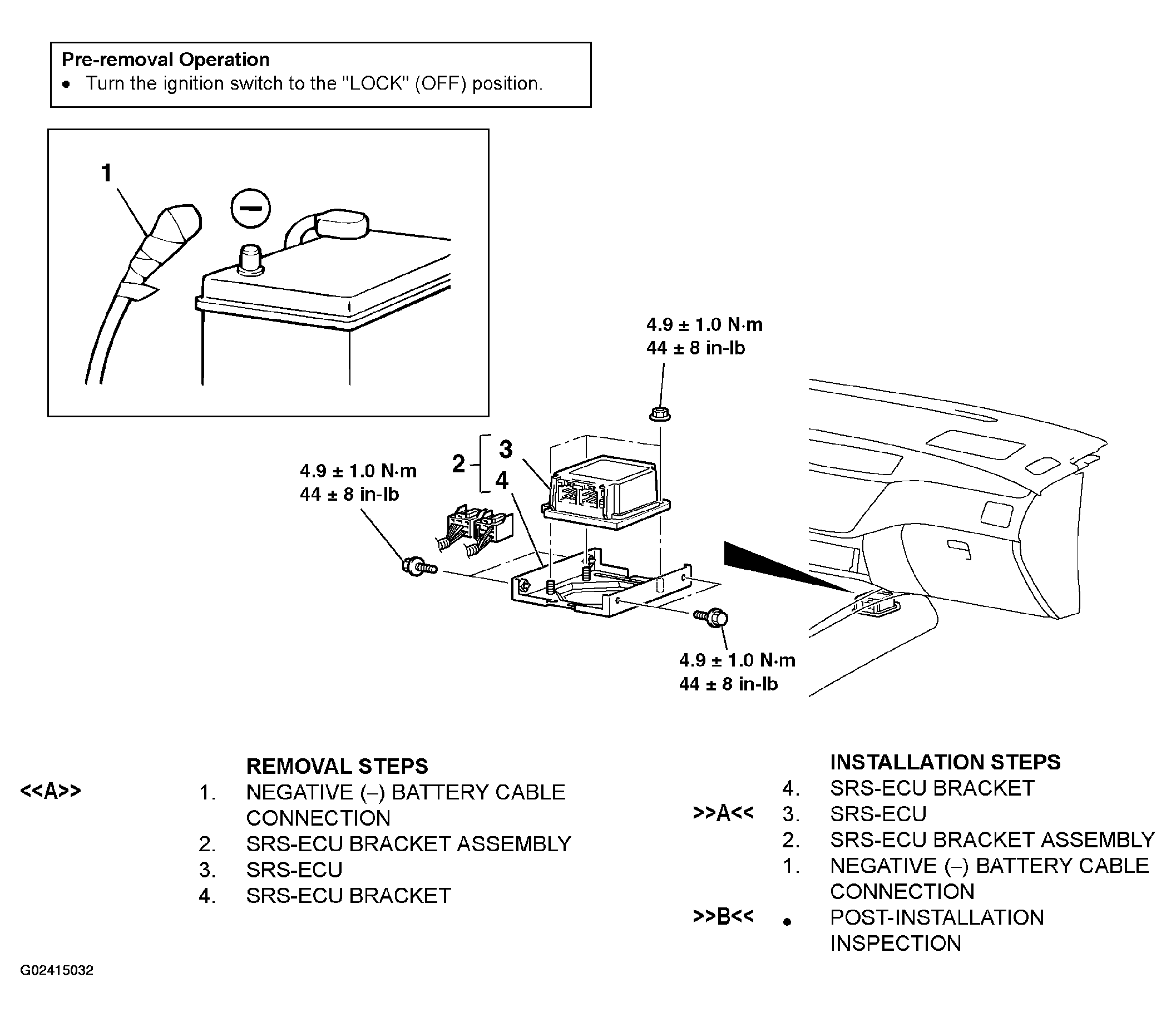

Fig 1: Disconnecting Battery Cable
G02415032Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
