<< A >> Oil Seal Installation

  1. Apply a coating of GENUINE MITSUBISHI POWER STEERING FLUID to the both sides of the oil seal.
  2. Using the following special tools, press the oil seal into the rack housing.
    • MB991197: Bar (long type)
    • MB991199: Oil Seal Installer < Vehicles with 16 inch tire>
    • MB991202: Oil Seal and Bearing Installer < Vehicles with 14 and 15 inch tire>

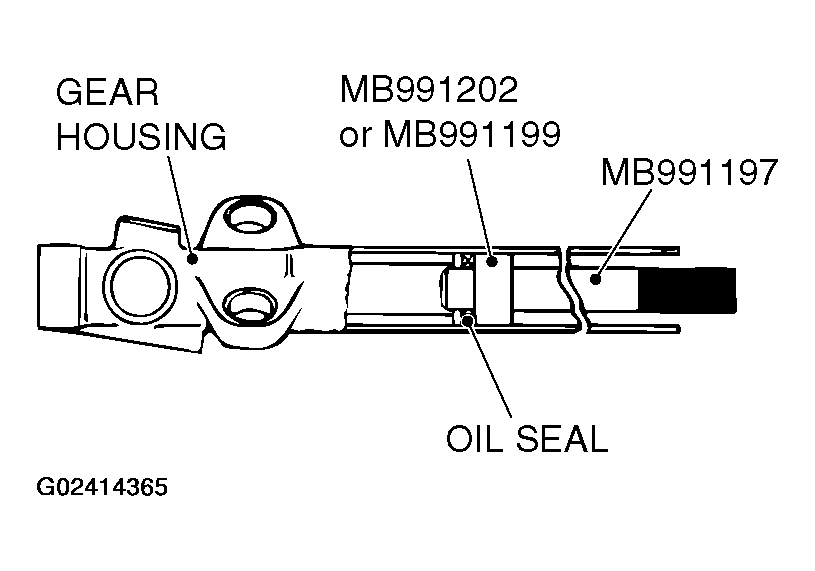

    Fig 1: Pressing Oil Seal Into Rack Housing
    G02414365Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
