INSPECTION PROCEDURE A-5: Communication With The Sunroof Motor Assembly (Sunroof-ECU) Is Not Possible.: Notes

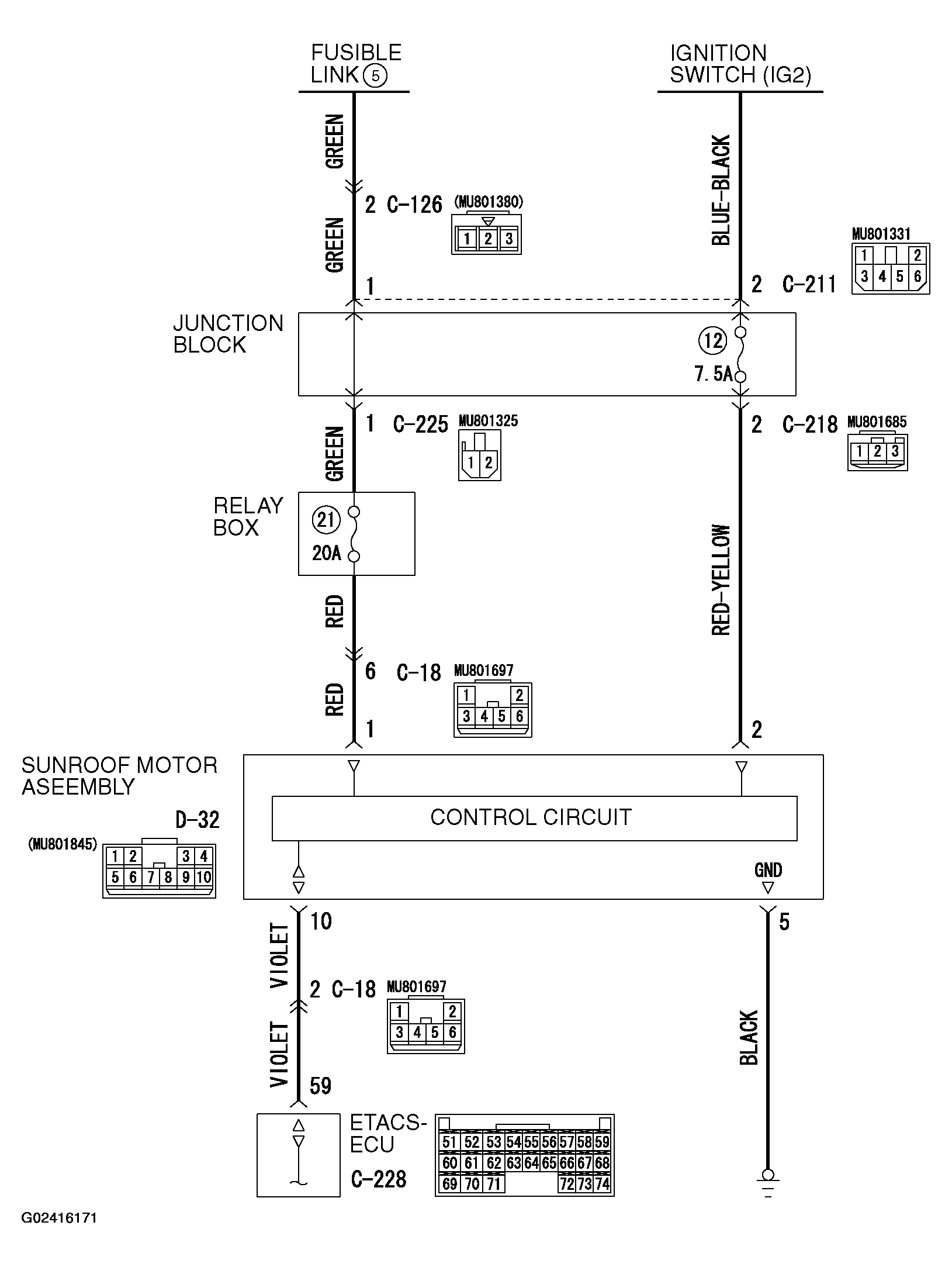

Fig 1: Sunroof Motor Power Supply And SWS Communication Circuit Diagram
G02416171Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

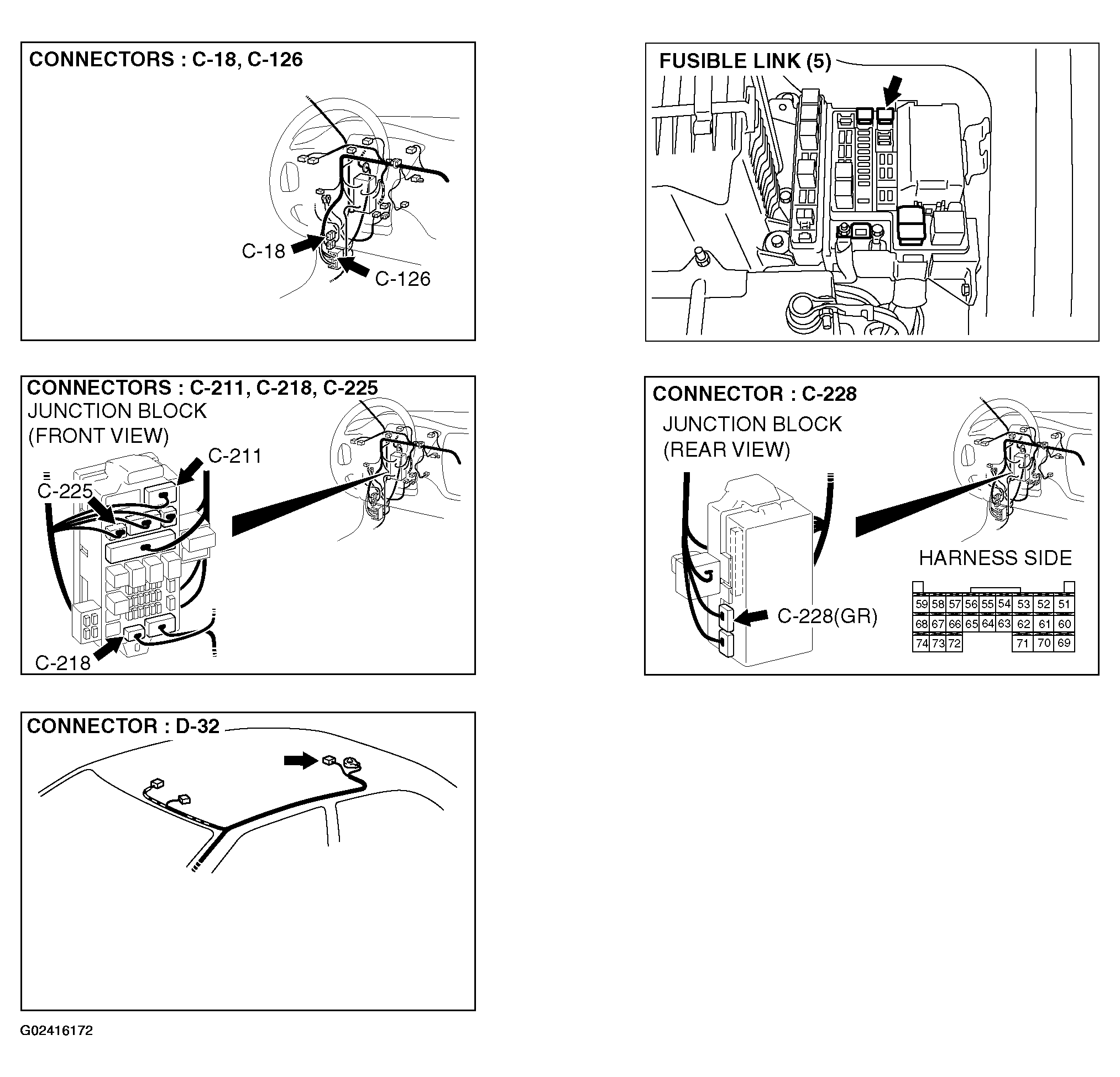

Fig 2: Identifying Connectors
G02416172Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
