INSPECTION PROCEDURE G-3: Windshield Wiper And Washer: Any Of The Windshield Wiper Switch Positions Is Defective.: Notes

NOTE: This troubleshooting procedure requires the use of scan tool MB991958 and SWS monitor kit MB991813. For details on how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR ."

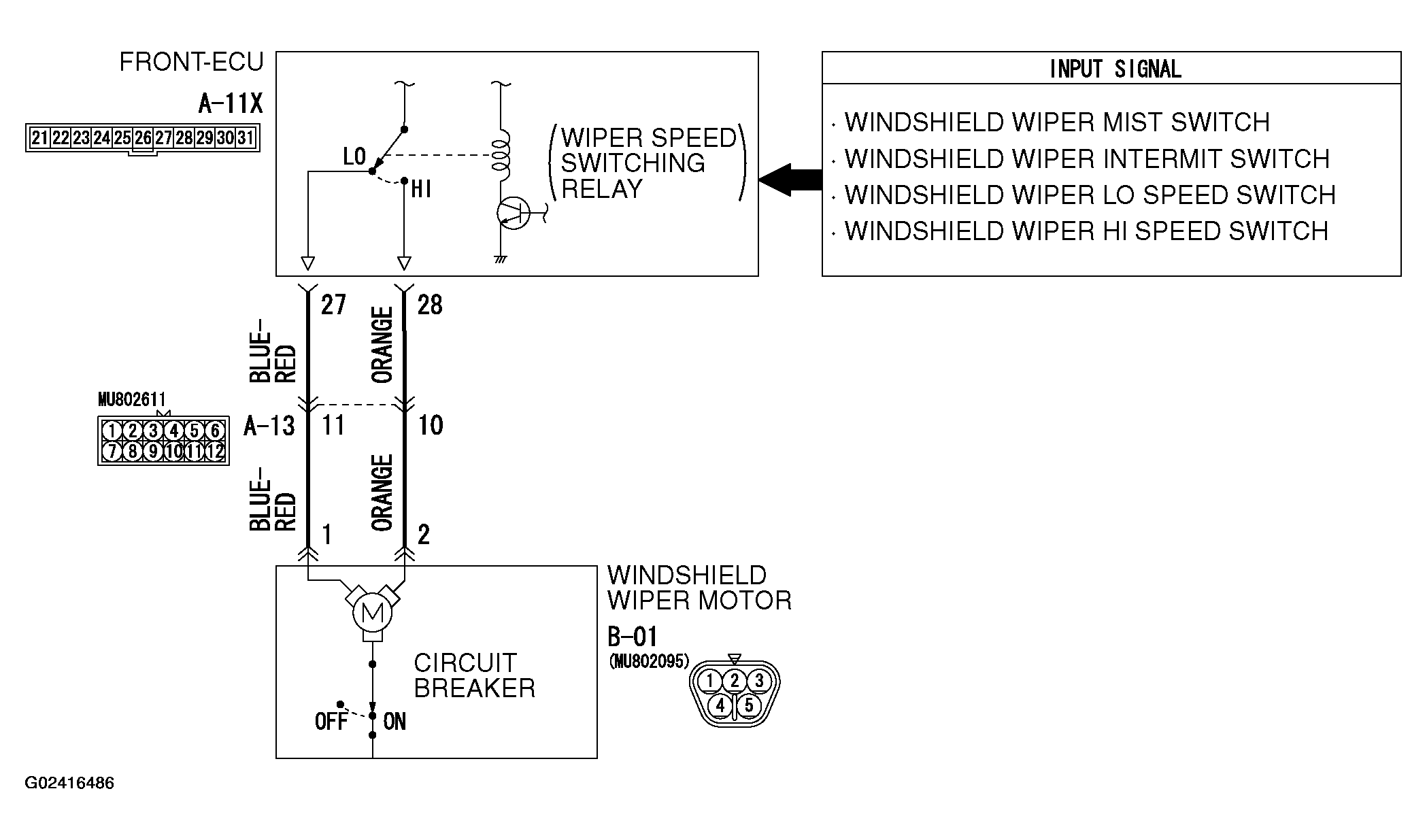

Fig 1: Windshield Wiper Motor Drive Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

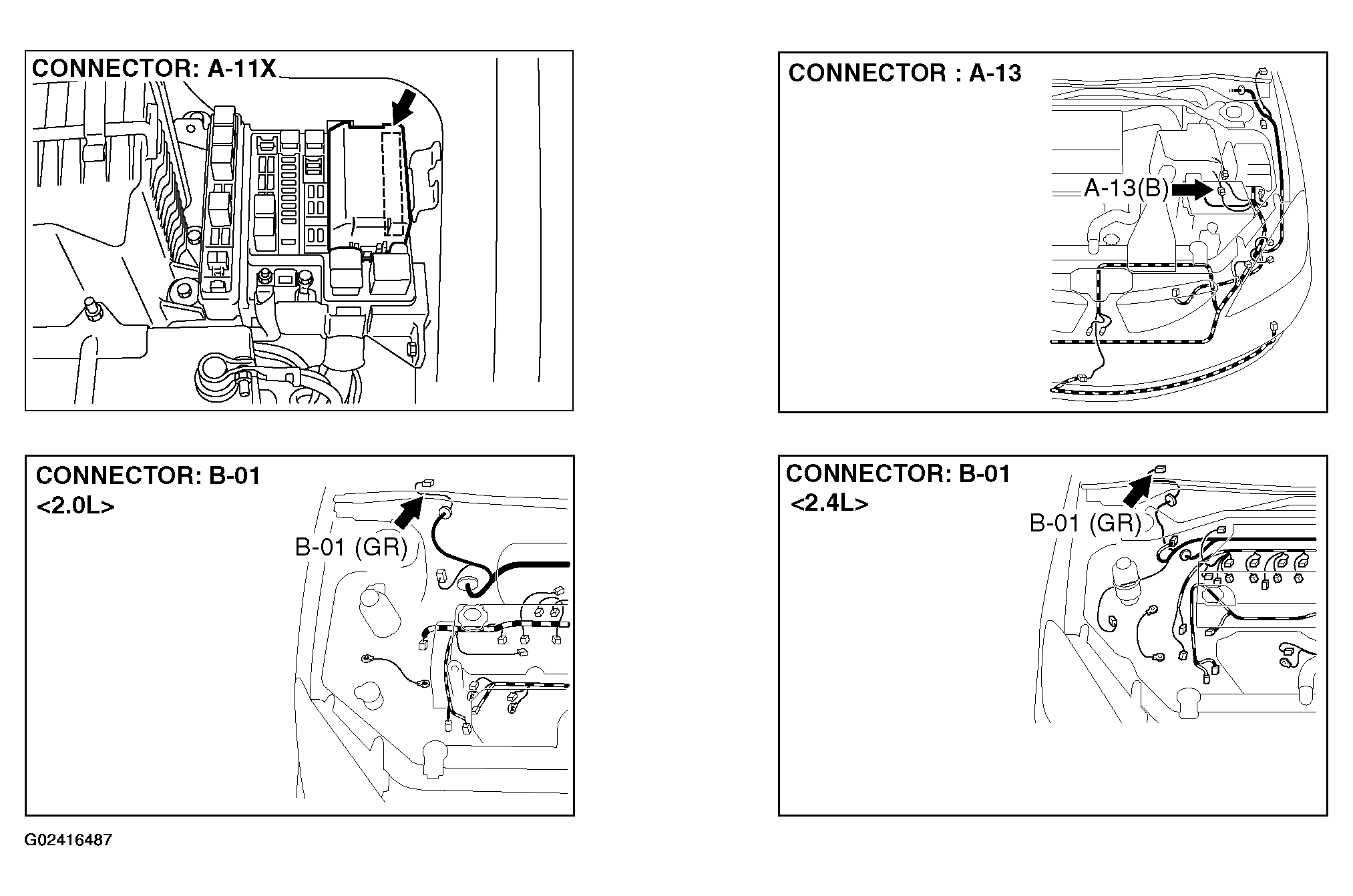

Fig 2: Identifying Connectors

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
