>> A << Front Bumper Side Plate Assembly

Use the rivet tool shown in the illustration to attach the rivet by the following procedure.

1. Insert the rivet into the base material front bumper side plate assembly.
2. Place the recommended tool over section A of the rivet.
3. While pushing the flange surface of the rivet with the recommended tool, press the handle of the tool.
4. The thin part of section A of the rivet will break and the rivet will then be attached.

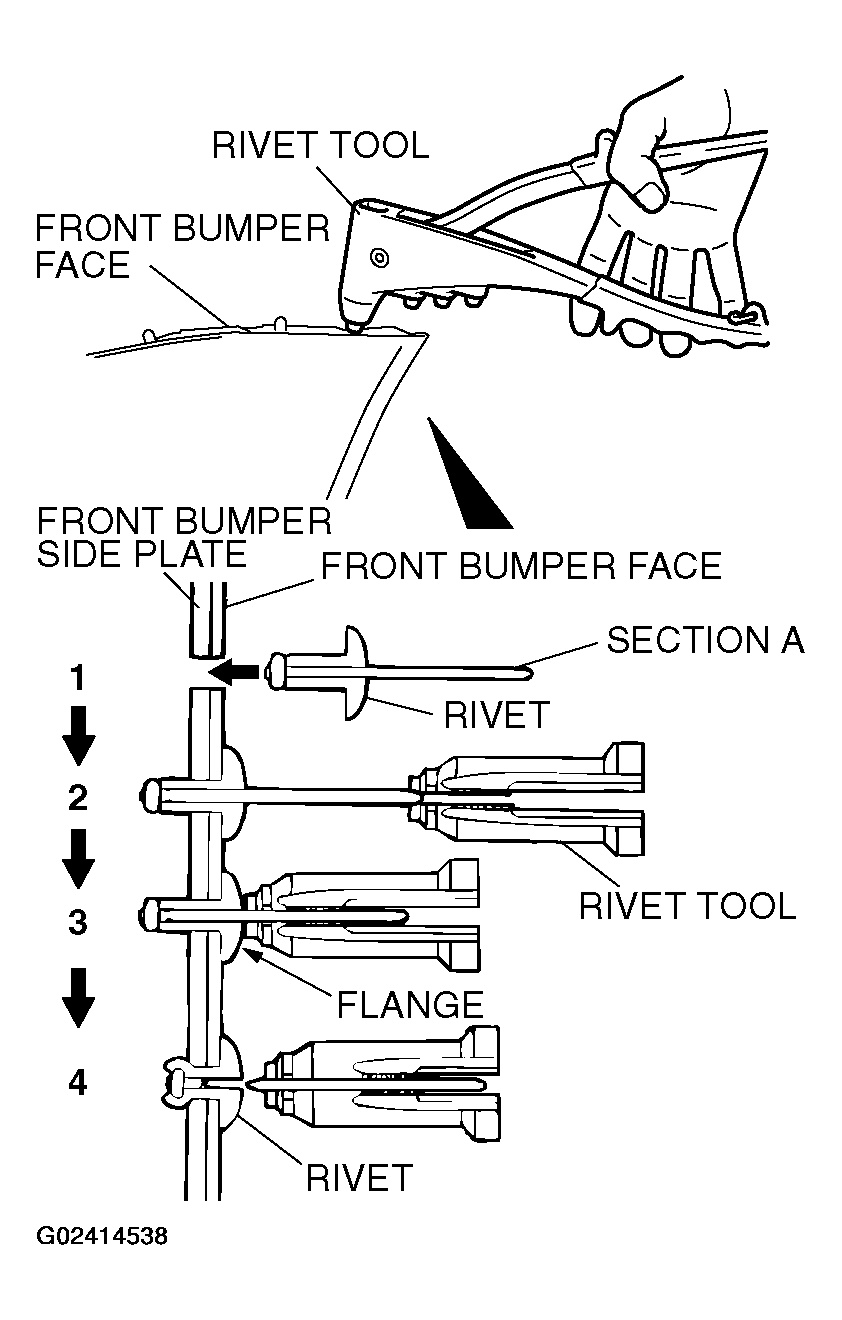

   Fig 1: Inserting Rivet Into Base Material Front Bumper Side Plate Assembly

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
