<< A >> Headlight Assembly Removal

  1. Remove the splash shield, the radiator grill, the front bumper assembly installation clips, the screws and the bolts as shown.

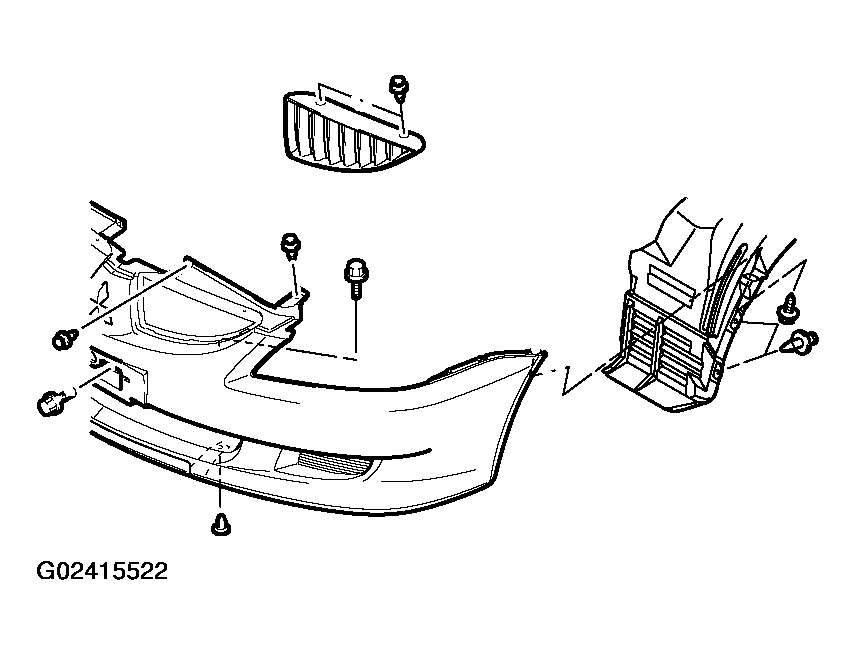

    Fig 1: Removing Splash Shield Radiator Grill Front Bumper Assembly
    G02415522Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Slide the front bumper assembly and remove the headlight assembly.

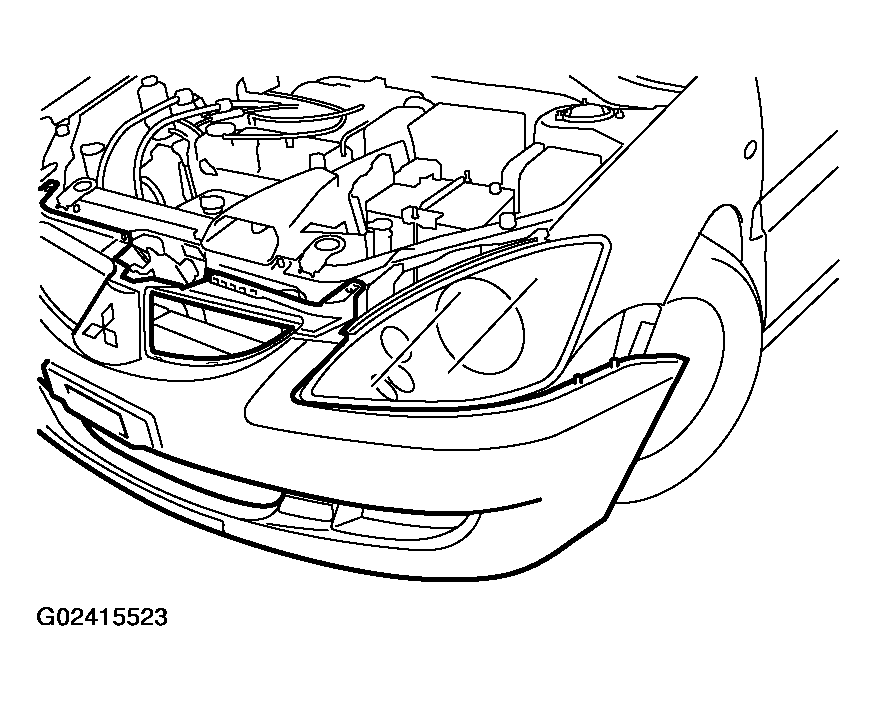

    Fig 2: Removing Headlight Assembly
    G02415523Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
