Position Light Bulb

CAUTION: Do not touch the bulb surface bare-handed or with dirty gloves. If dirt is attached on surface of the bulb, immediately use alcohol or thinner to remove dirt, and install the bulb after well dried.
  1. Disconnect the connector.
  2. Screw out the position light socket to pull out position light bulb.

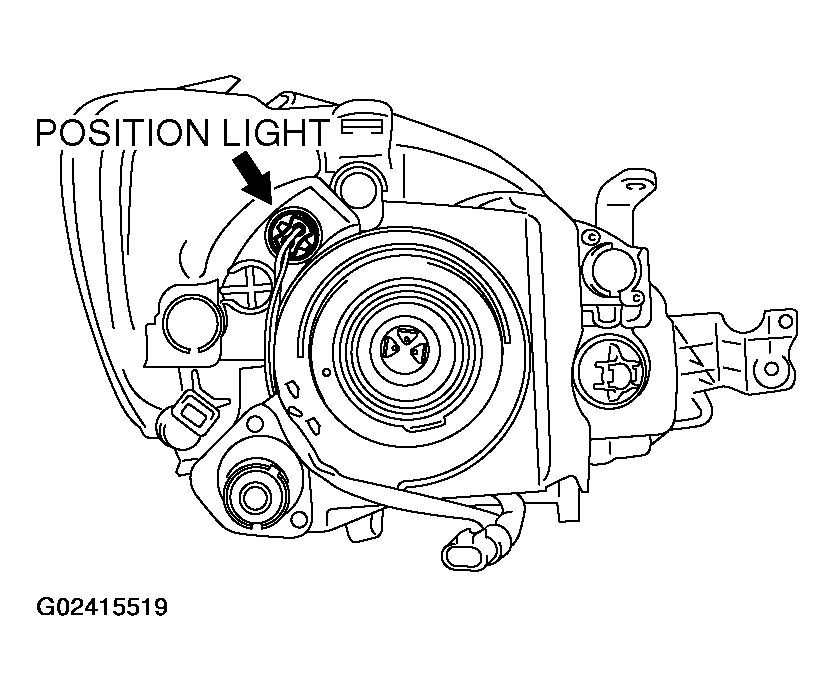

    Fig 1: Pulling Out Position Light Bulb
    G02415519Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
