Headlight Adjustment

NOTE: When adjusting headlight, disconnect the other headlight harness.

The low beam headlight should project on the screen upper edge of the beam (cut-off).
If not the case, turn the adjusting screws to achieve the specified low-beam cut-off location on the aiming screen.

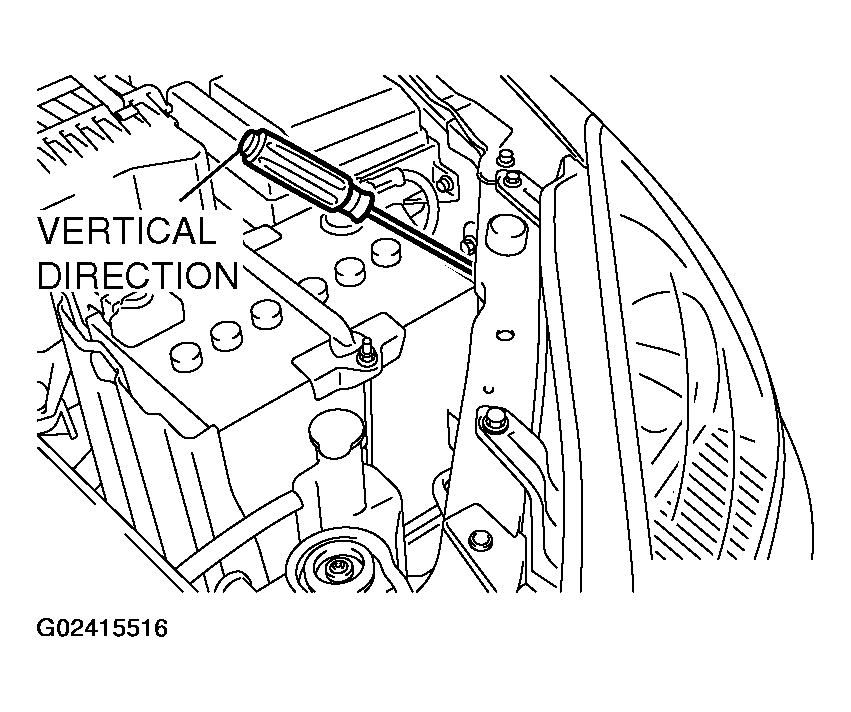

Fig 1: Disconnecting Other Headlight Harness
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Standard value:
2. (Vertical direction) Horizontal center line +/- 50.5 mm (+/- 2.0 inches) (0.38 degrees angle)

CAUTION: Do not cover a headlight for more than three minutes to prevent the plastic headlight lens deformation.

NOTE: There is no horizontal aim adjustment. Horizontal aim is preset and does not require adjustment. High-beam pattern should be correct when the low-beams are adjusted properly.

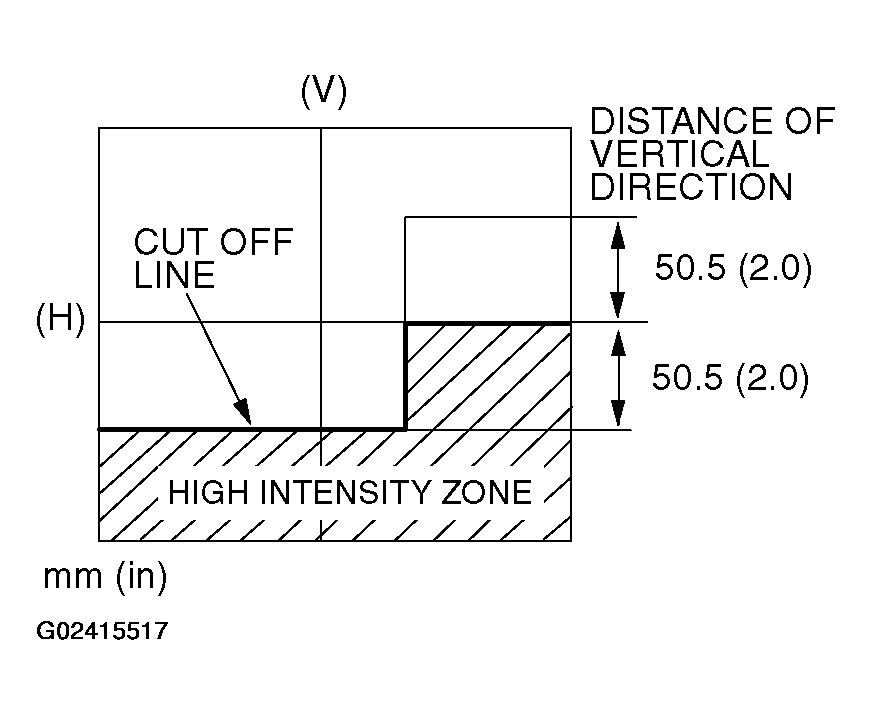

Fig 2: Identifying Distance Vertical Direction Graph

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
