Inspection Procedure M-8: Sunroof Switch: The ETACS-Ecu Does Not Receive Any Signal From The Up, Open Or Close/Down Switch.: Notes

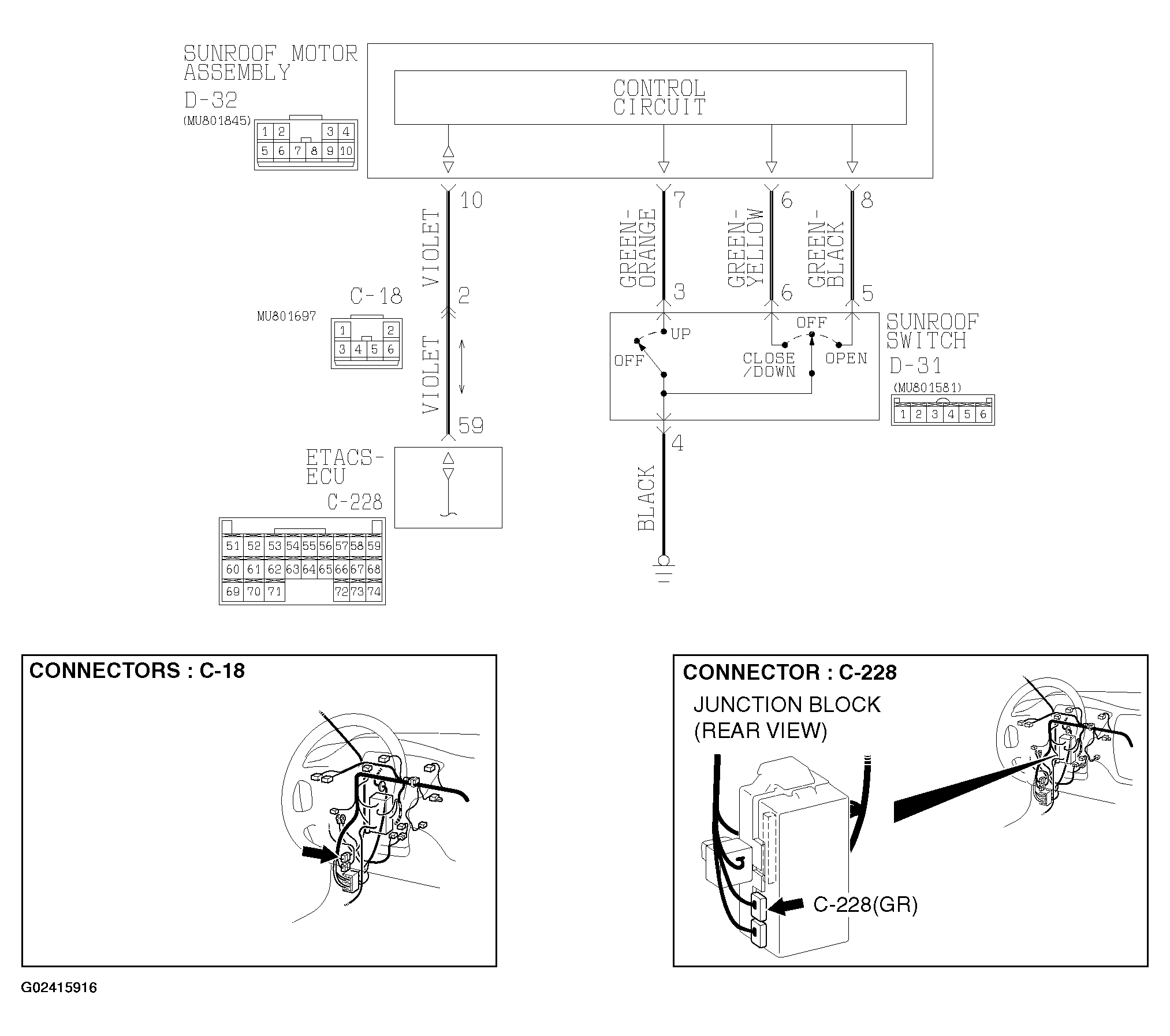

Fig 1: Sunroof Switch Input Circuit Diagram
G02415916Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

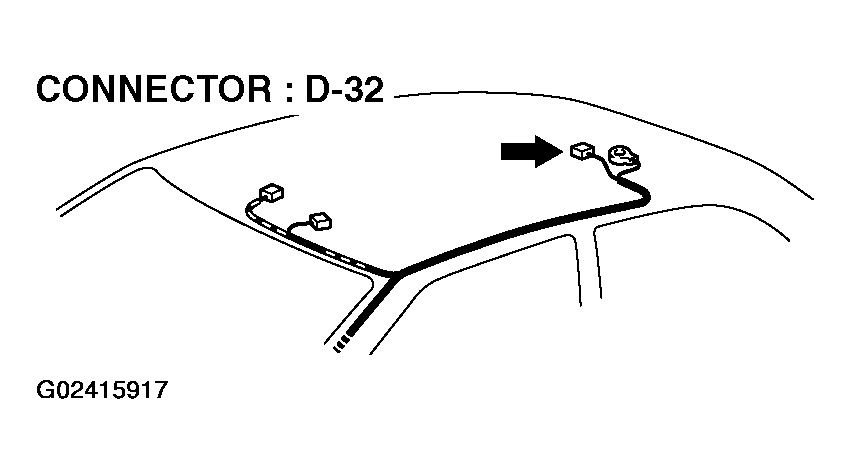

Fig 2: Identifying Connector D-32
G02415917Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
