Removal And Installation < 2.0L Engine >

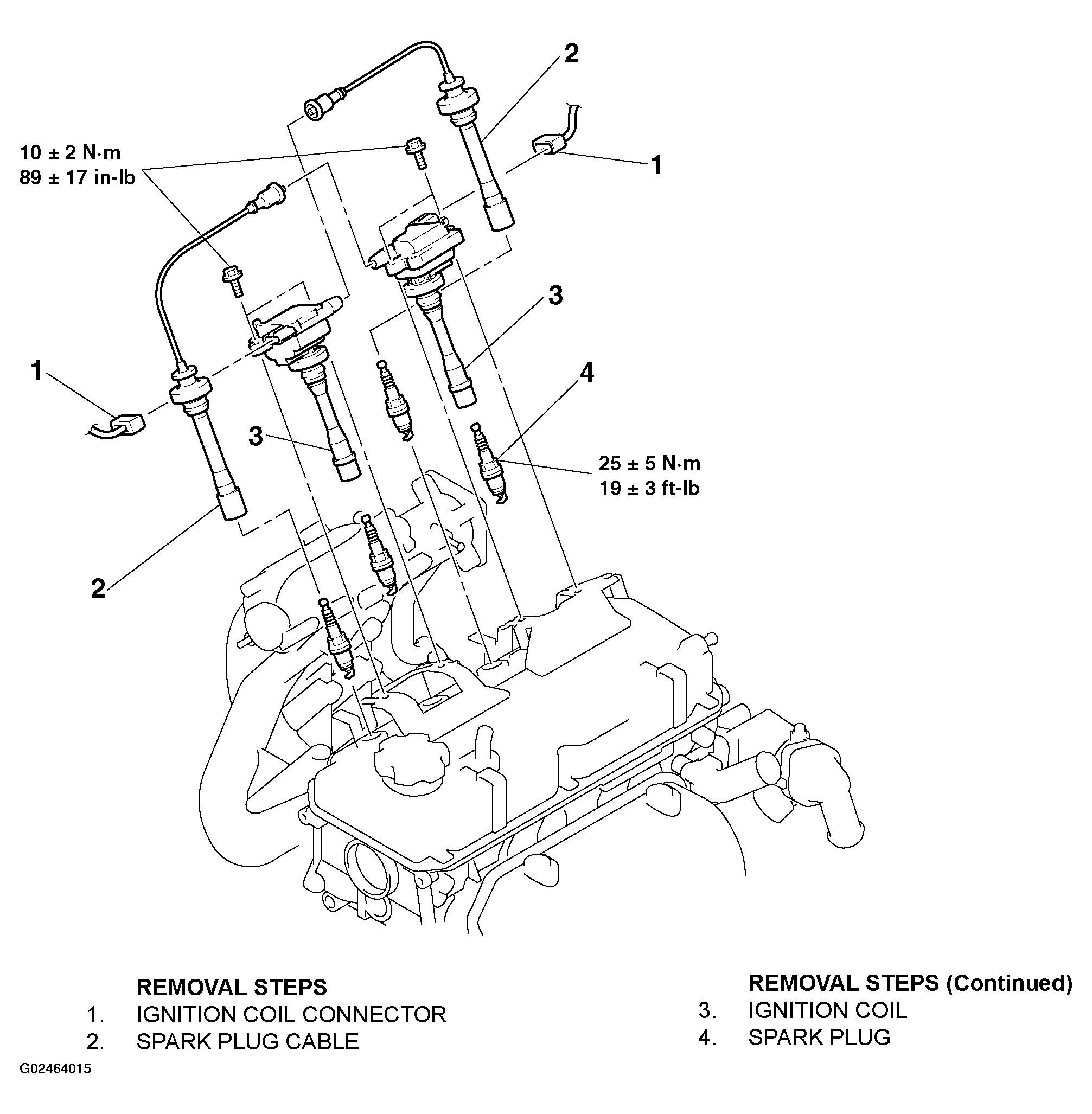

Fig 1: Removal Steps Of Ignition Coil - 2.0L Engine
G02464015Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
