Construction Diagram: Notes

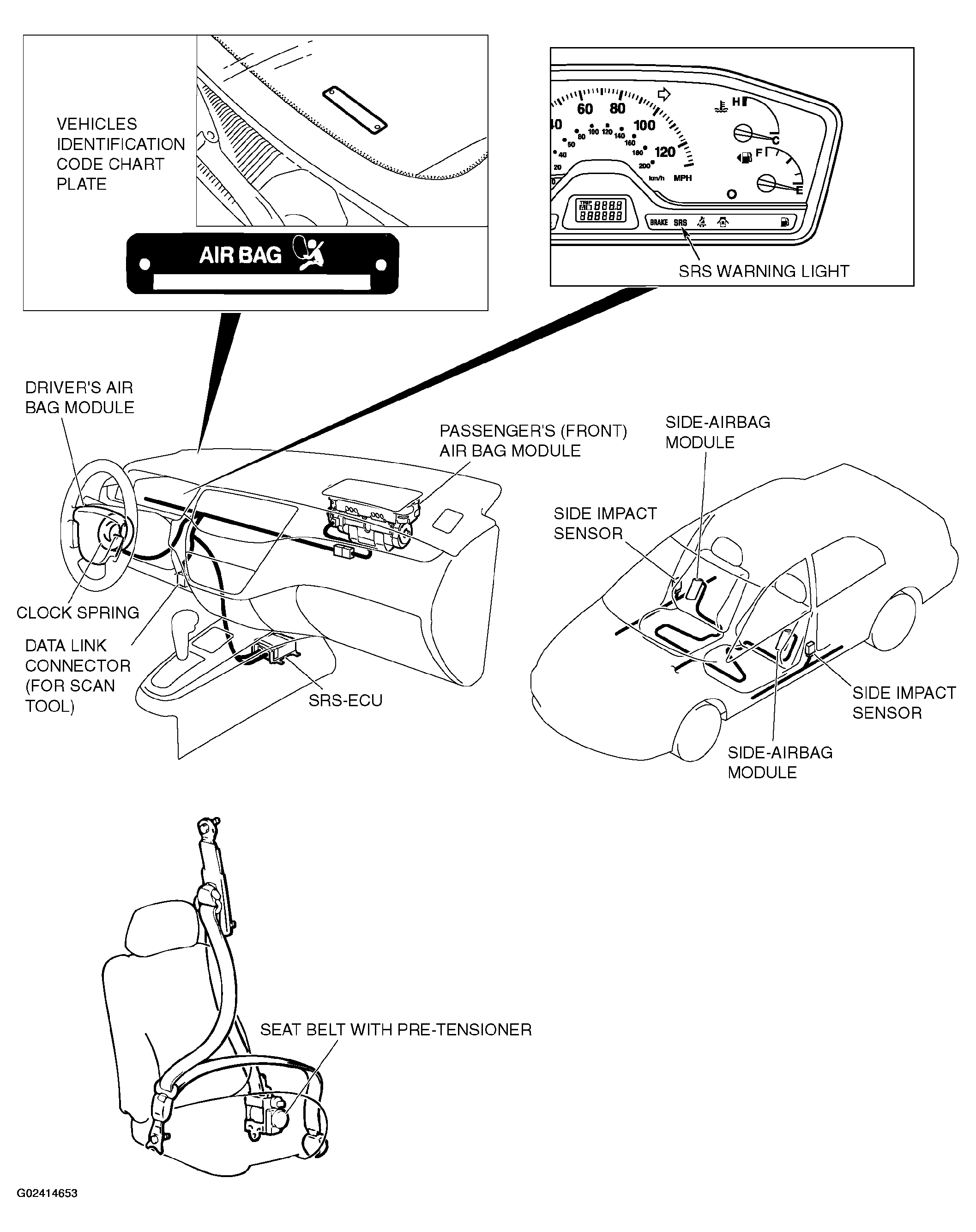

Fig 1: SRS Components Construction Diagram
G02414653Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: This construction diagram shows the general view of the SRS components. For details, refer to "SCHEMATIC ", "CONFIGURATION DIAGRAMS " and "CIRCUIT DIAGRAM "
