Warning/Caution Labels

A number of caution labels related to the SRS are found in the vehicle, as shown in the following illustration. Follow label instructions when servicing SRS. The label H is not to be removed except by owner. If the other labels are dirty or damaged, replace them.

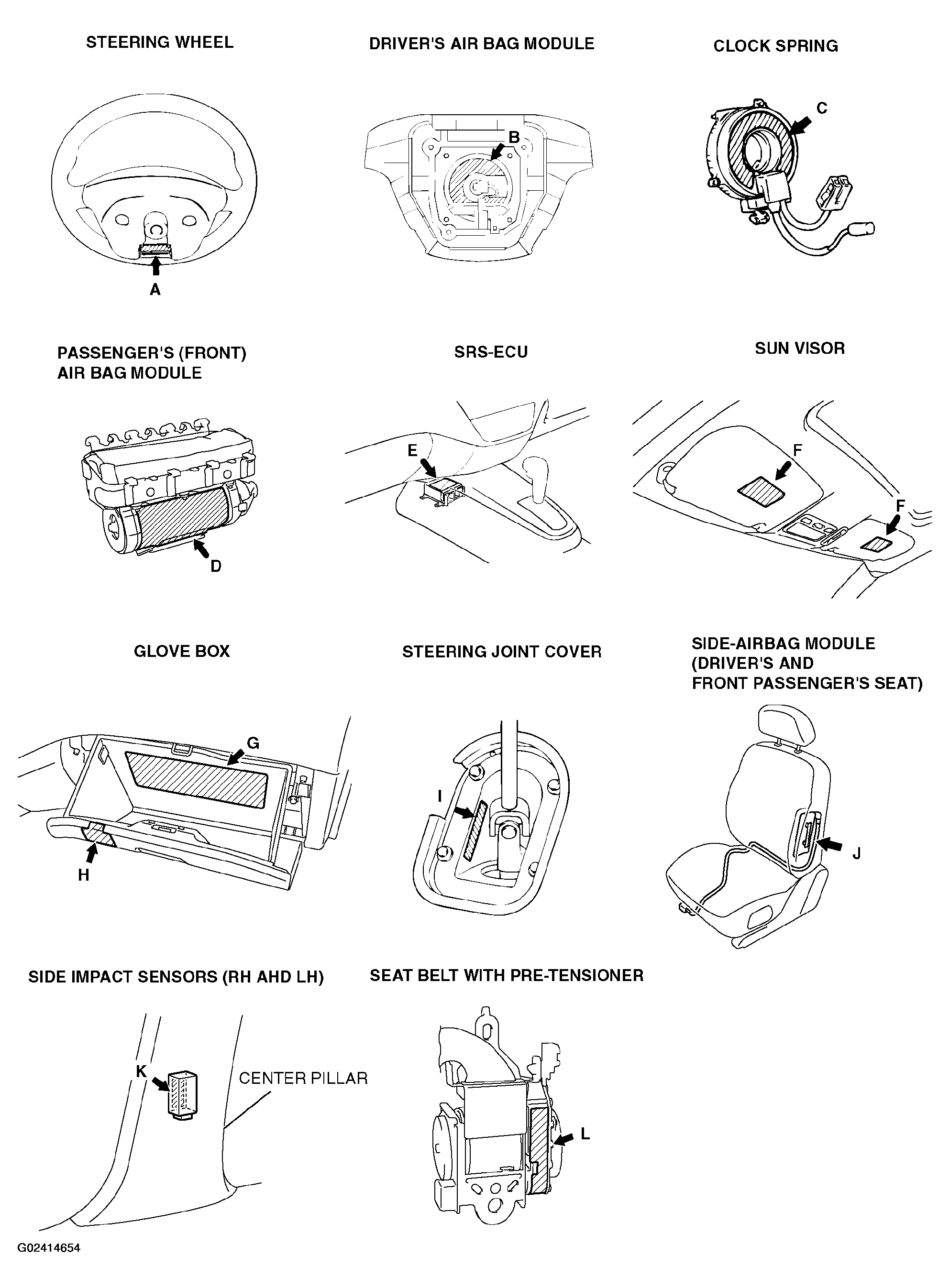

Fig 1: Identifying Caution Labels

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

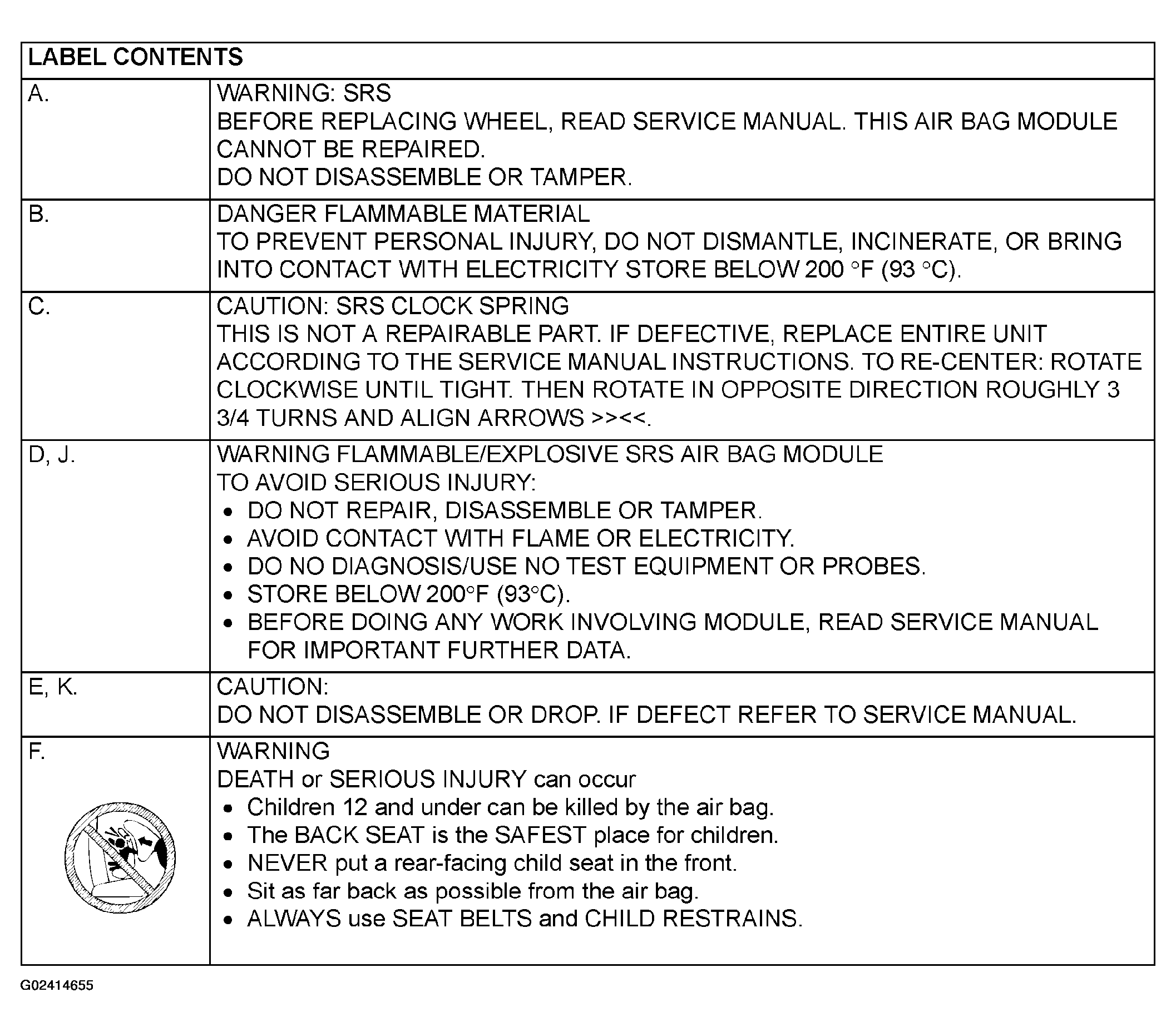

Fig 2: Identifying Label Contents (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

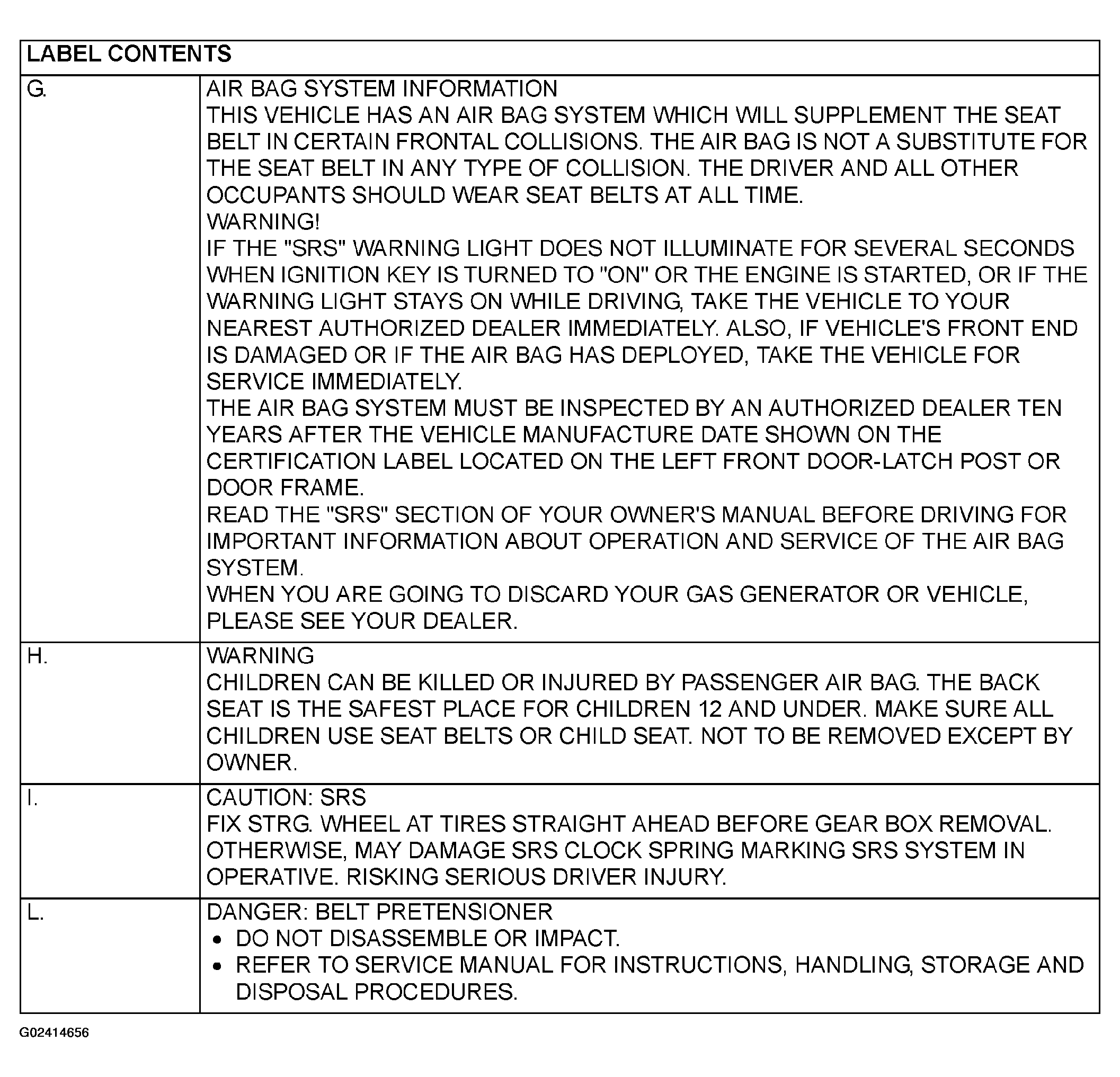

Fig 3: Identifying Label Contents (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
