Clock Spring

  1. Check the clock spring connectors and protective tube for damage, and the terminals for deformation.
  2. Visually check the case for damage.

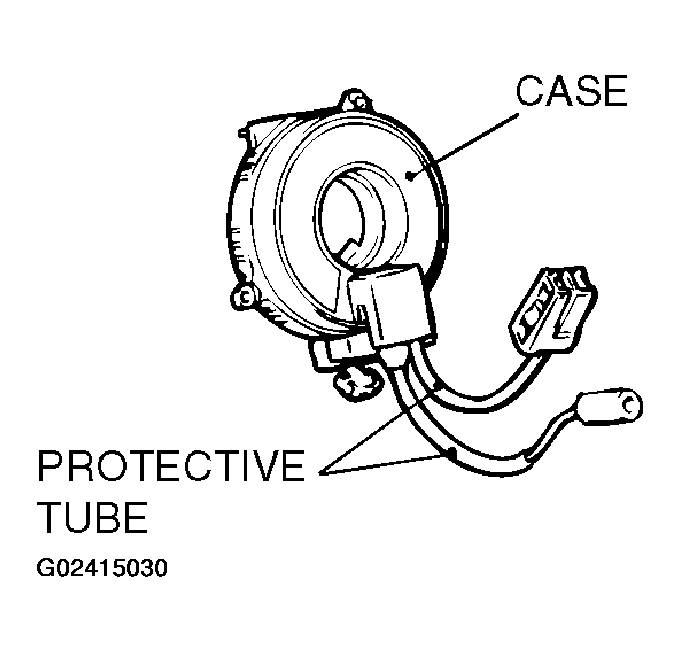

    Fig 1: Identifying Clock Spring Connectors And Protective Tube
    G02415030Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
