DTC 89, 96: Side-Airbag Module (RH) (Squib) System Fault 5 for Power Supply Circuit & Side-Airbag Module (RH) (Squib) System Fault 6 for Communication System: Diagnosis

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)
  • MB991824: Vehicle Communication Interface (V.C.I.)
  • MB991827: MUT-III USB Cable
  • MB991911: MUT-III Main Harness B (Vehicles without CAN communication system)

1. STEP 1. Check the side impact sensor (RH) (Using scan tool MB991958, read the diagnostic trouble code).
   1. Disconnect the negative battery terminal.
   2. Replace the side impact sensor (RH) with the side impact sensor (LH).
   3. Connect the negative battery terminal.
   4. Erase the diagnostic trouble code memory, and check the diagnostic trouble code.

   Q: Is DTC 79 or 93 out put?

   • YES:  Replace the side impact sensor (RH) with a new one (Refer to SIDE IMPACT SENSOR  .) Go to  Step 3.
   • NO:  Go to Step 2.
2. STEP 2. Check the harness wires for open circuit or short circuit between SRS-ECU connector C-13 (terminal No.40 and 42) and side impact sensor (RH) connector D-02 (terminal No.1 and 2.)

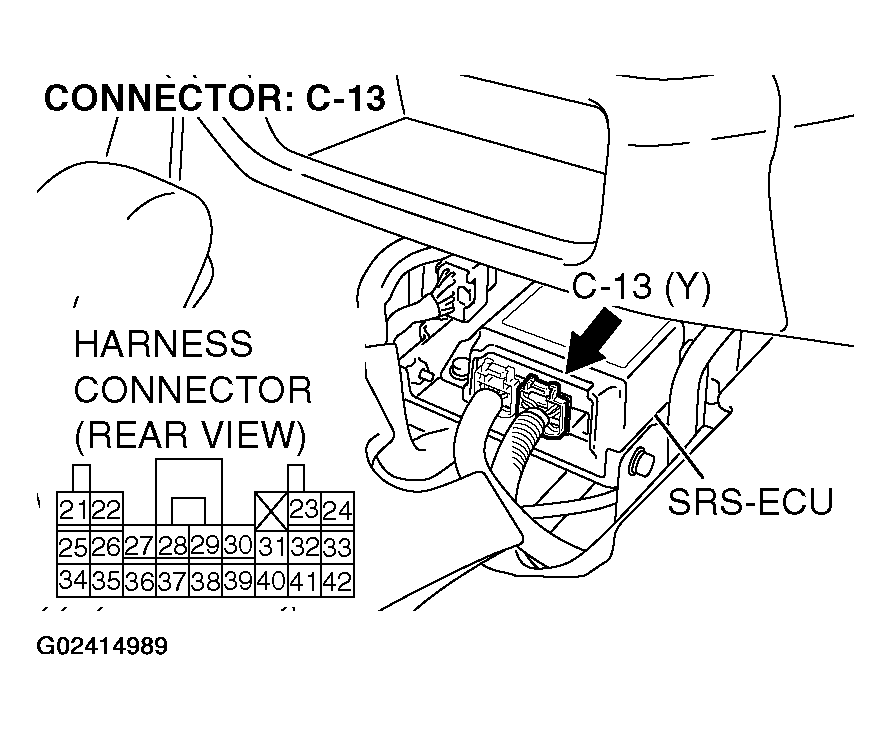

   Fig 1: Identifying Harness SRS-ECU Connector C-13

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

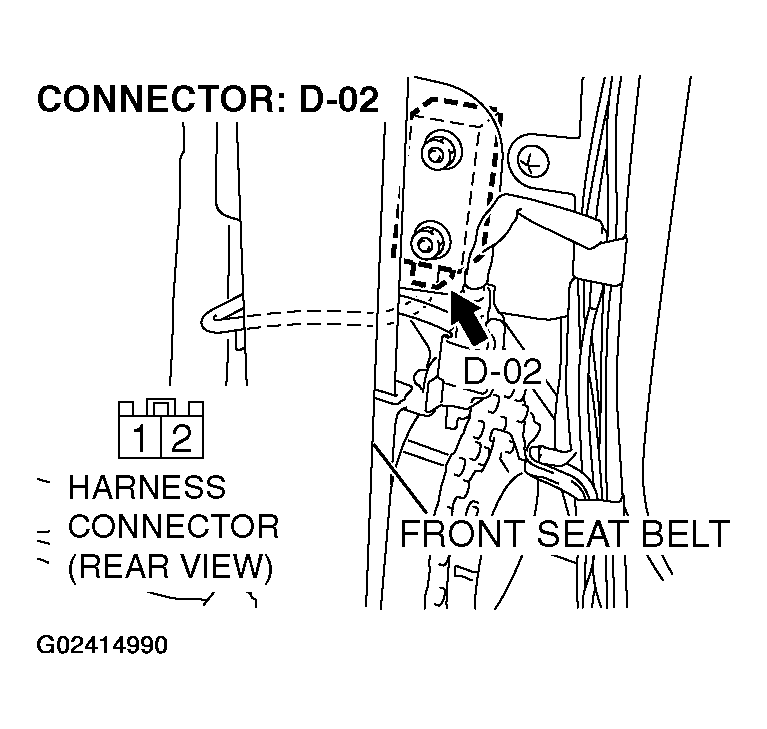

   Fig 2: Identifying Harness Connector D-02

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
   NOTE: After inspecting intermediate connector C-112 inspect the wiring harness. If the intermediate connector C-112 is damaged, repair or replace it. Refer to HARNESS CONNECTOR INSPECTION . Then go to Step 3. If harness wires are in good condition, go to Step 3. If any harness wires between SRS-ECU connector C-13 and side impact sensor (RH) connector D-02 are damaged, repair them or install the sensor cable. Refer to SIDE IMPACT SENSOR  . Then go to Step 3.

   Q: Are the harness wires between SRS-ECU connector C-13 (terminal No.40 and 42) and side impact sensor (RH) connector D-02 (terminal No.1 and 2) in good condition?

   • YES:  Erase the diagnostic trouble code memory, and check the diagnostic trouble code. If DTC 89 or 96 sets, replace the SRS-ECU (Refer to SRS CONTROL UNIT (SRS-ECU)  .) Then go to Step 3.
   • NO:  Repair the harness wires between SRS-ECU connector C-13 and side impact sensor (RH) connector D-02. Then go to Step 3.

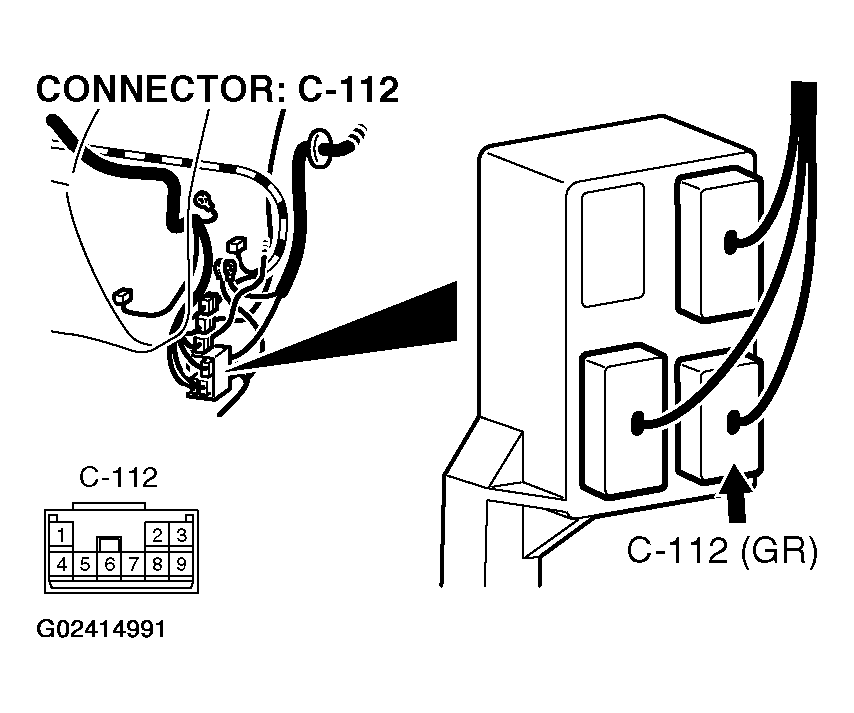

     Fig 3: Inspecting Intermediate Connector C-112

     Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. STEP 3. Recheck for diagnostic trouble code.

   Q: Is DTC 89 or 96 set?

   • YES:  Refer to  Step 1.
   • NO:  The procedure is complete (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTION .)
