Fuel Level Sensor Float Height

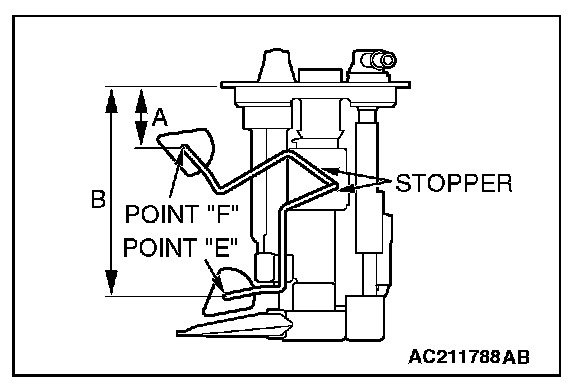

FUEL LEVEL SENSOR FLOAT HEIGHTFUEL LEVEL SENSOR (MAIN)
1. Move the float and measure height A at point "F" (highest) and B at point "E" (lowest) with the float arm touching stopper.
Standard value:
- A: 33.3 ± 2 mm (1.31 inches)
- B: 121.9 ± 2 mm (4.8 inches)
2. Adjust the float arm to the standard value, then go to the thermistor check.

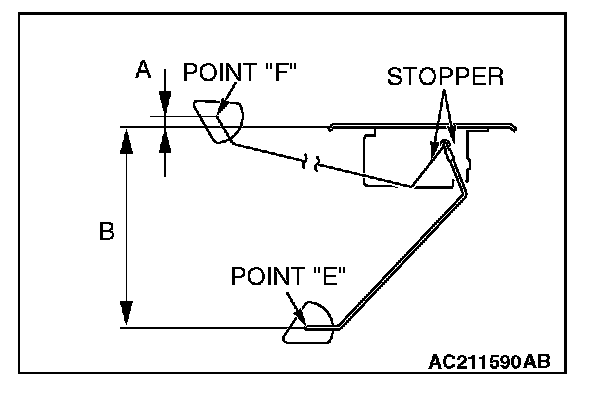

FUEL LEVEL SENSOR (SUB)
1. Move the float and measure height A at point "F" (highest) and B at point "E" (lowest) with the float arm touching stopper.
Standard value:
- A: 5.7 ± 2 mm (0.224 inch)
- B: 141 ± 2 mm (5.5 inches)
2. Adjust the float arm to the standard value, then go to the thermistor check.
