Scan Tool Testing and Procedures

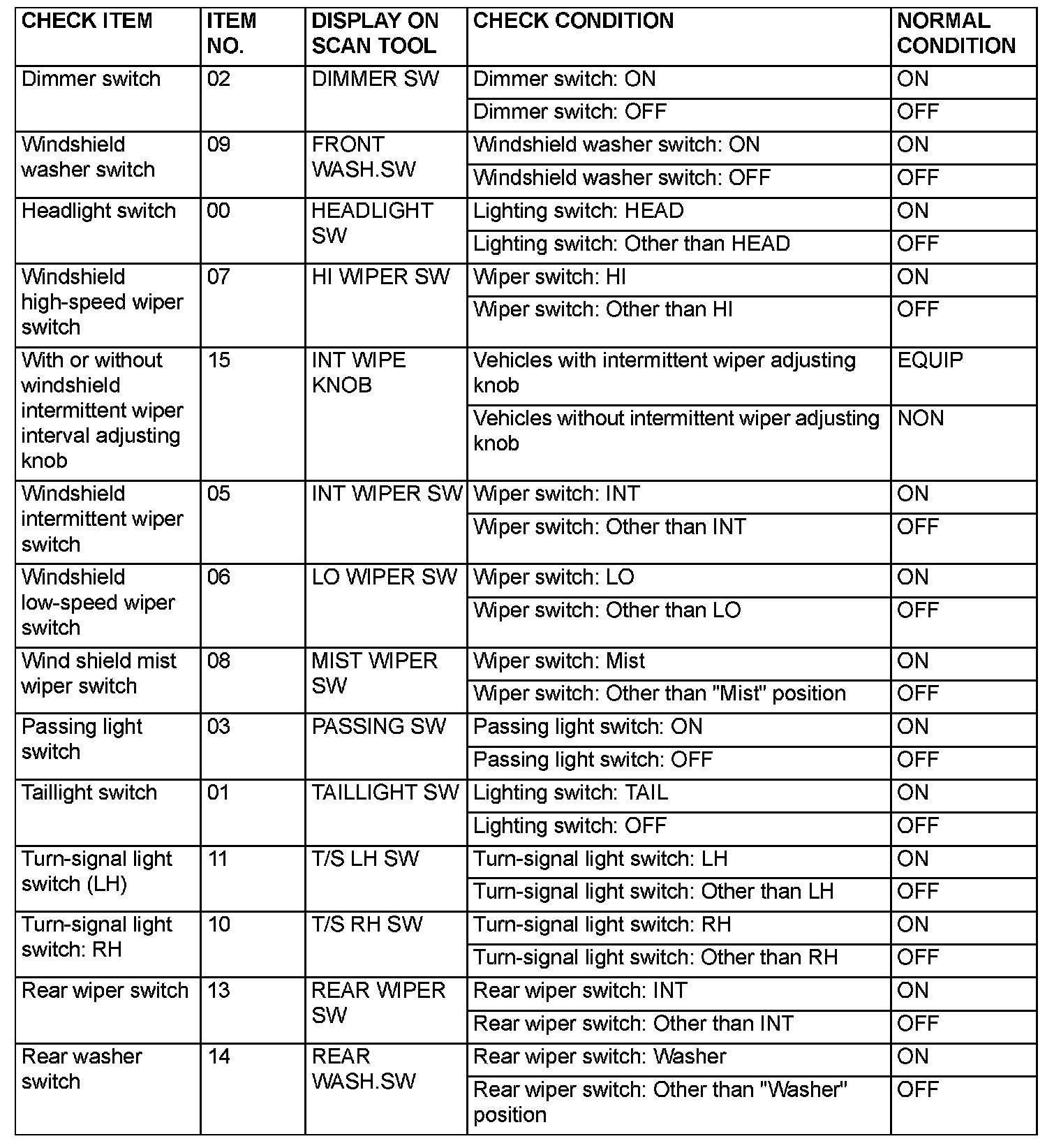

Data List REFERENCE TABLEColumn ECU (Column Switch):
COLUMN ECU (column switch)

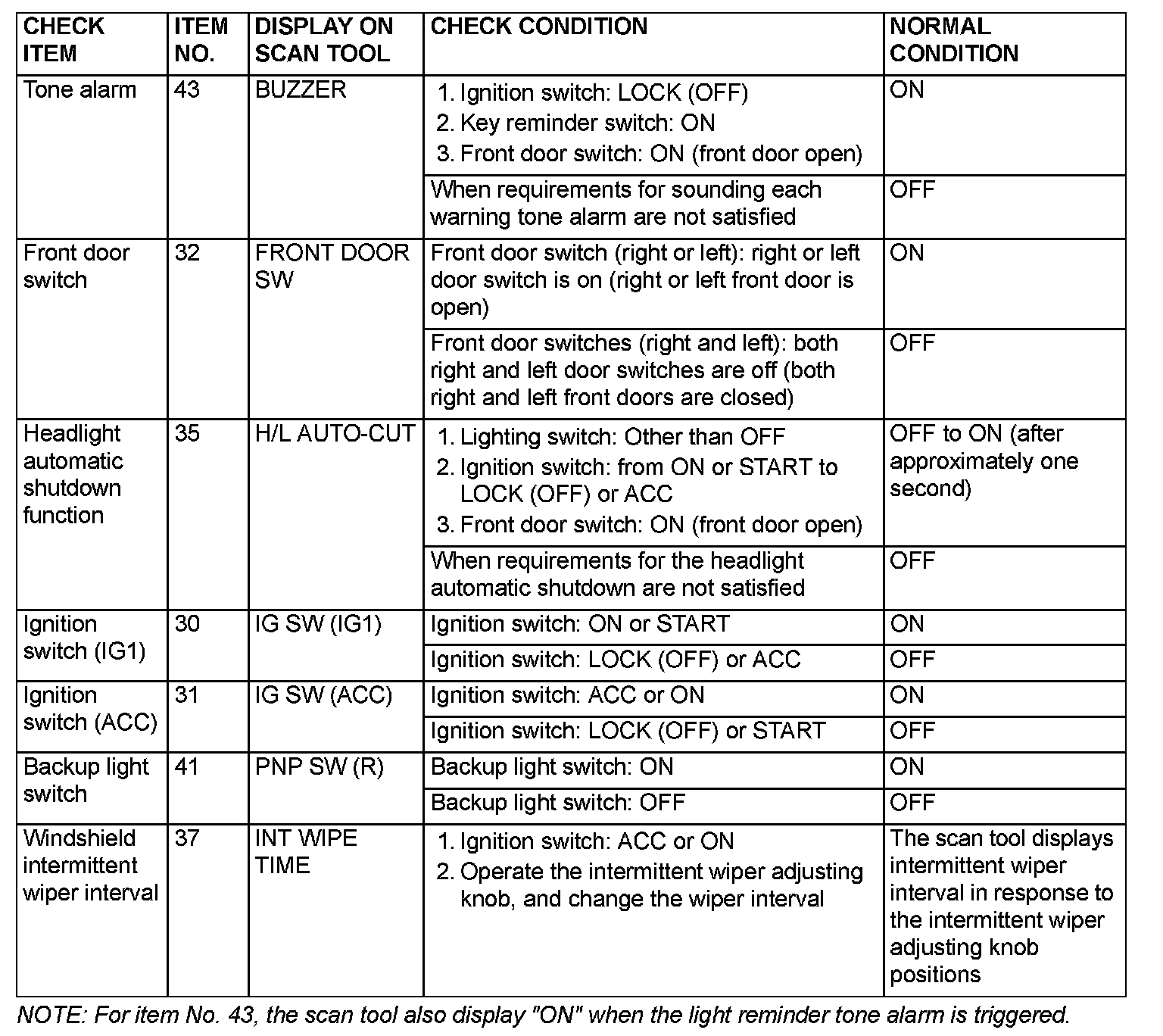

ETACS ECU:
ETACS ECU

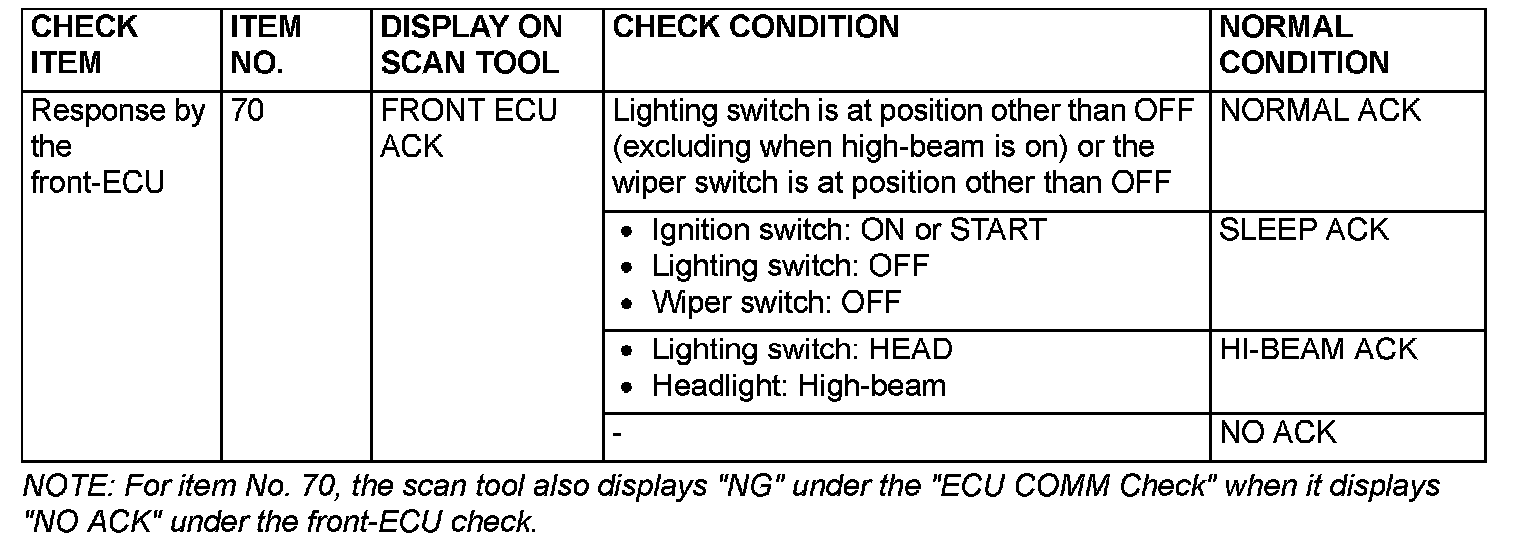

Front ECU:
FRONT ECU

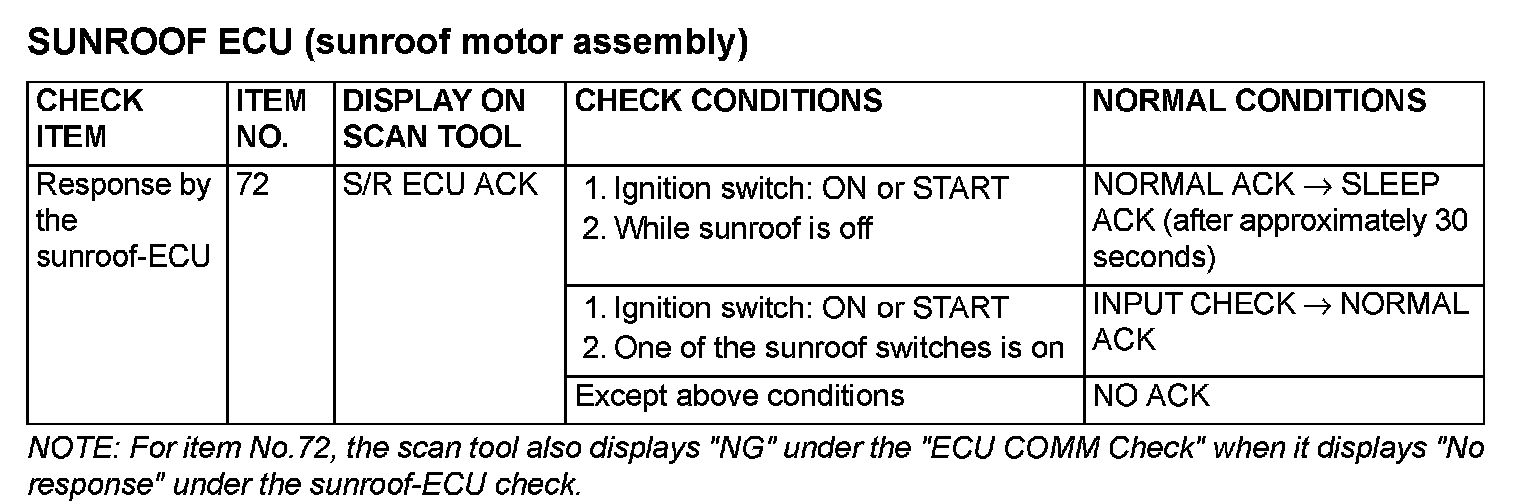

SUNROOF ECU (sunroof motor assembly)
FUNCTION DIAGNOSIS
The table shows the service data and their normal condition, which are displayed during the "Function Diag." The column "Normal conditions" shows values which are shown when each operation is made.

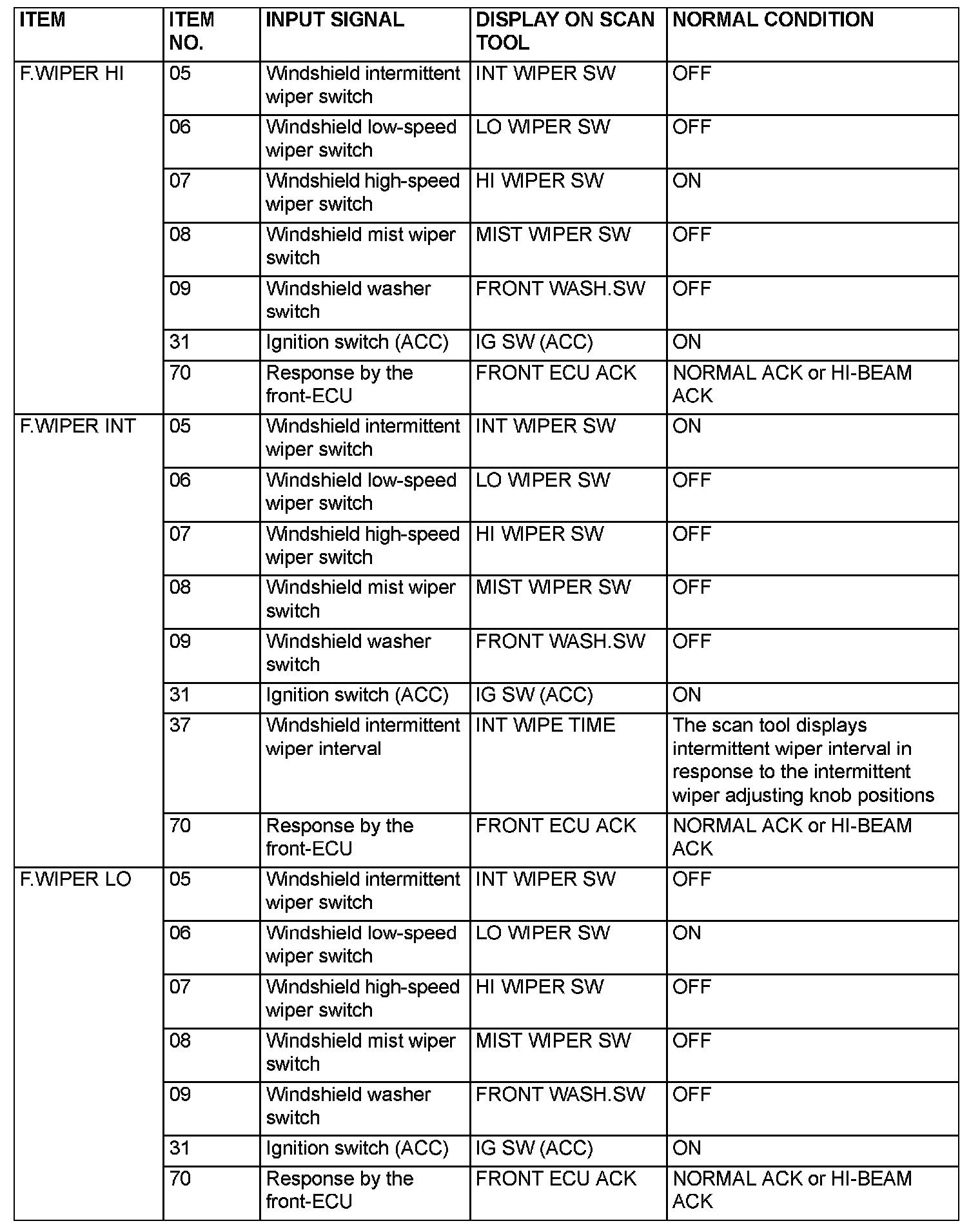

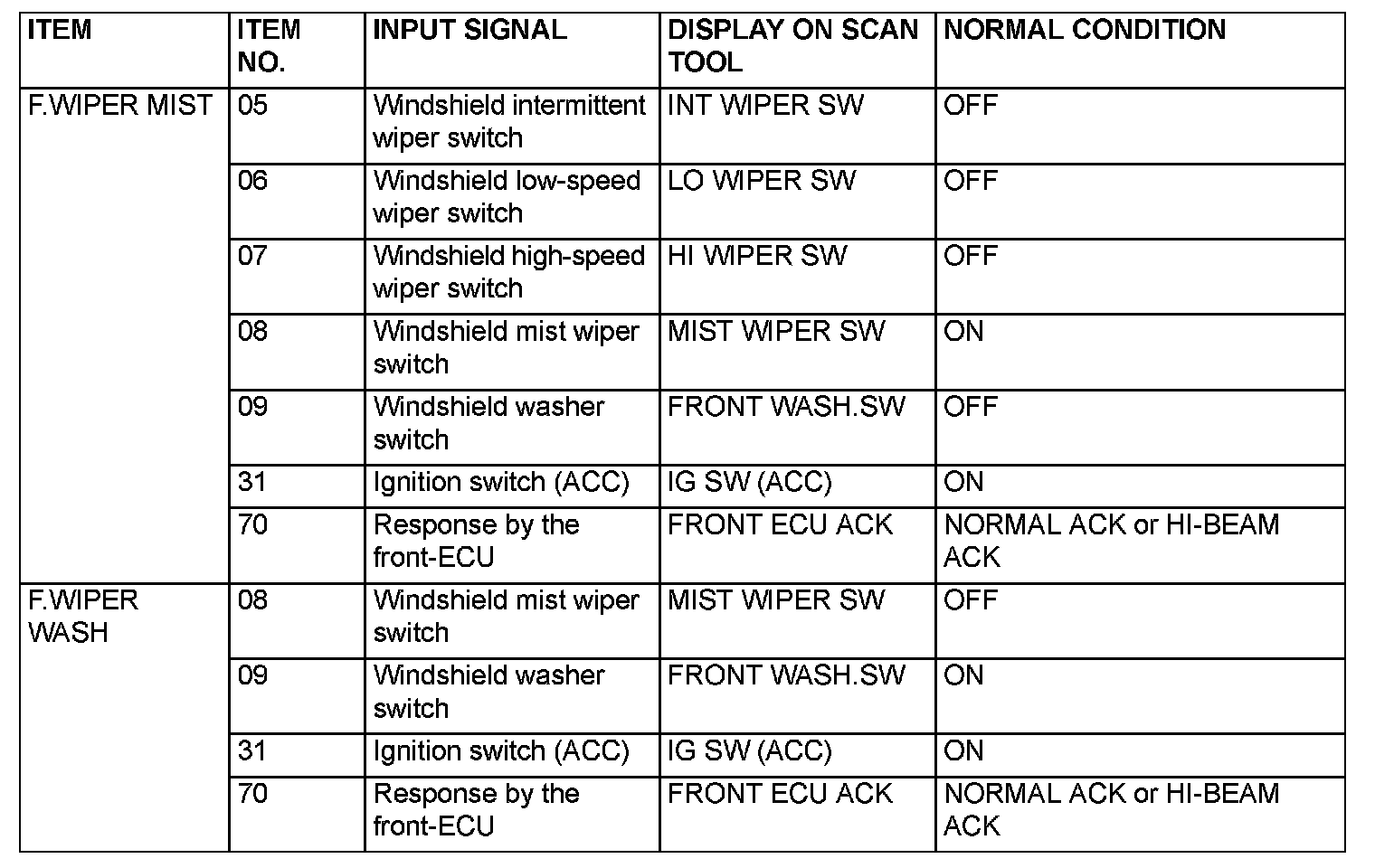

WIPER Part 1:
WIPER Part 2:
WIPER

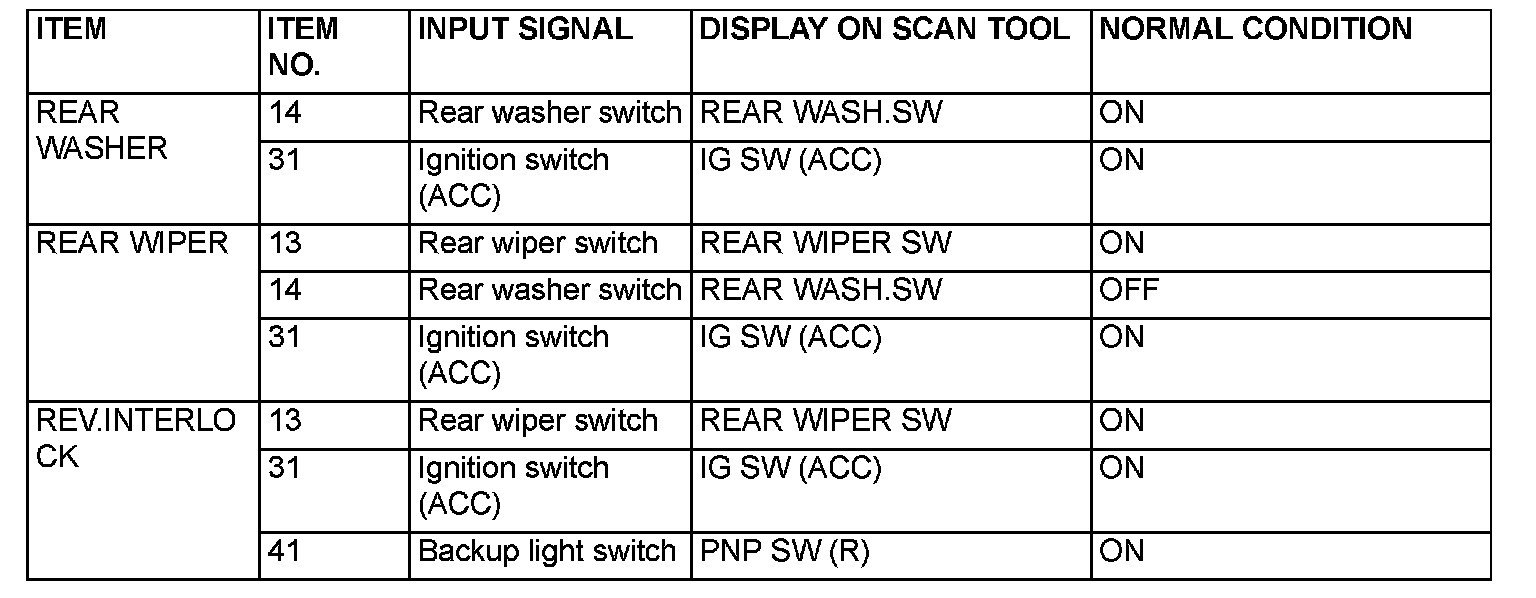

Rear Wiper:
REAR WIPER

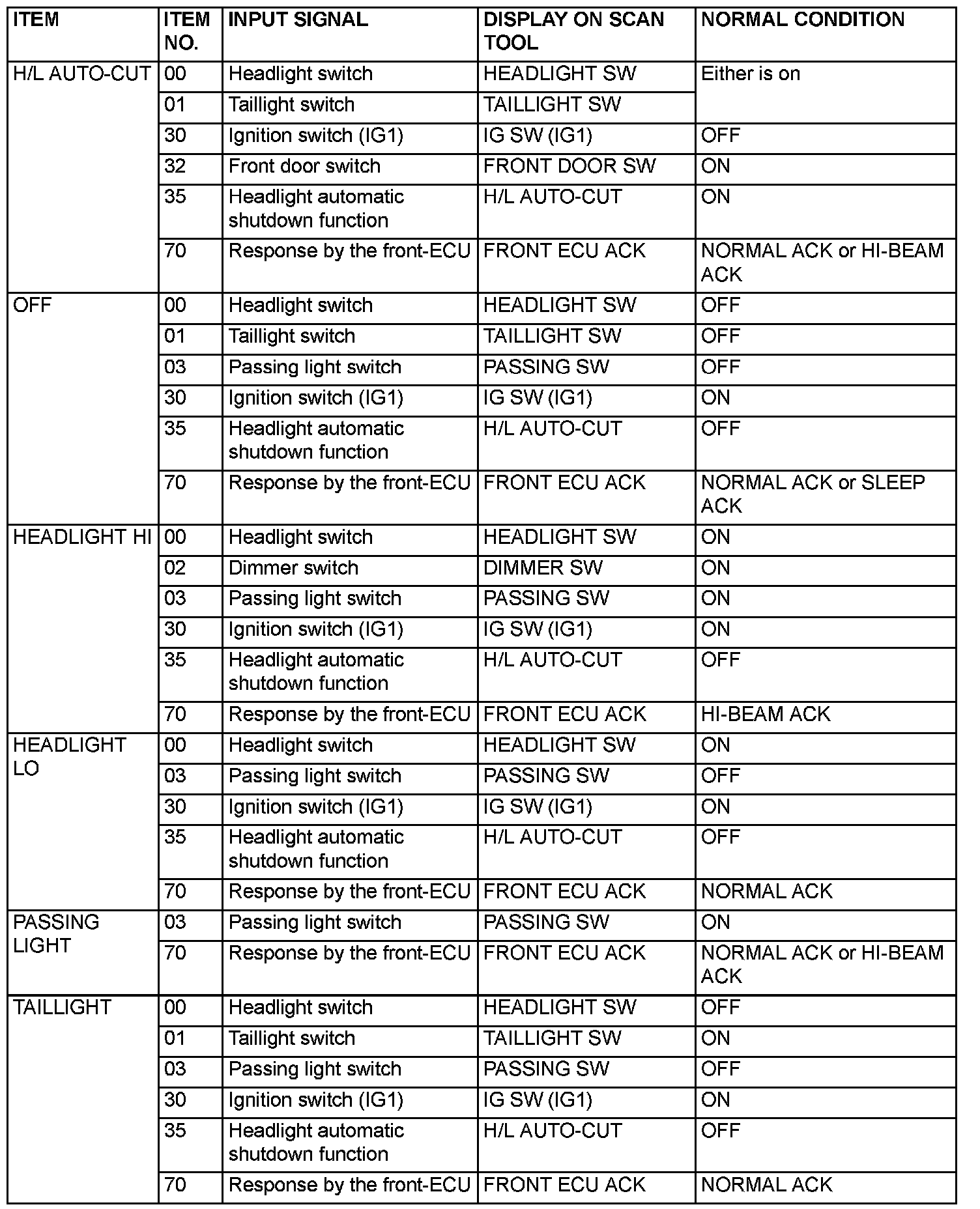

Lighting:
LIGHTING
NOTE: When checking the input signals (off, tail, low-beam or high-beam), turn the ignition switch to the "ON" position in order to disable the headlight automatic shutdown function. However, the headlight operation does not depend on the ignition switch positions, the scan tool does not display the title "IGNITION SWITCH". For checking item "HI (High-beam)", the scan tool displays "OFF" on the item No.2 "Dimmer SW" when the headlights are at high-beam. Therefore, the scan tool should display "ON" momentarily when the dimmer switch is operated.

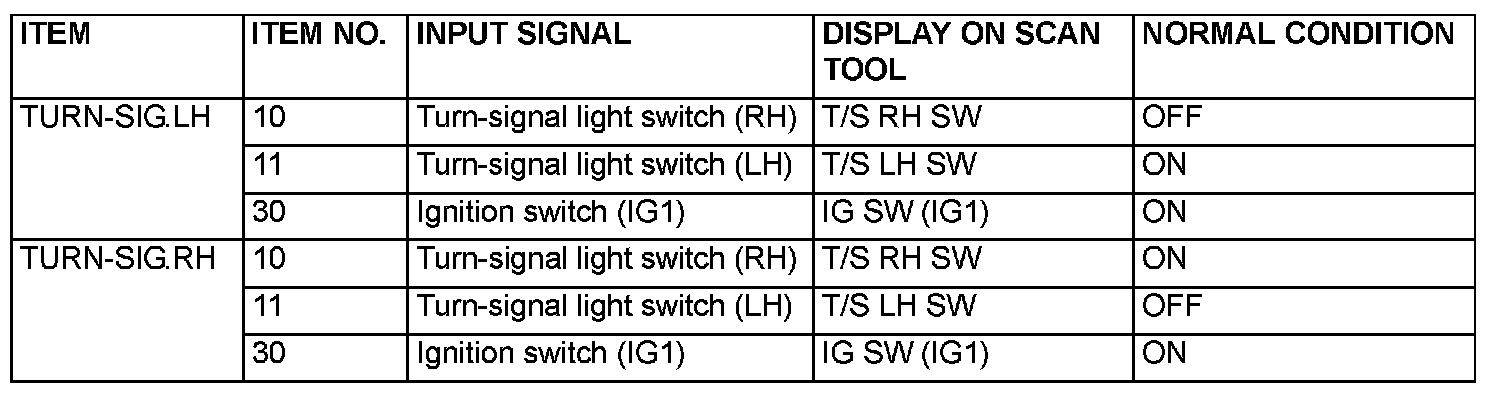

Turn Signal:
TURN SIGNAL

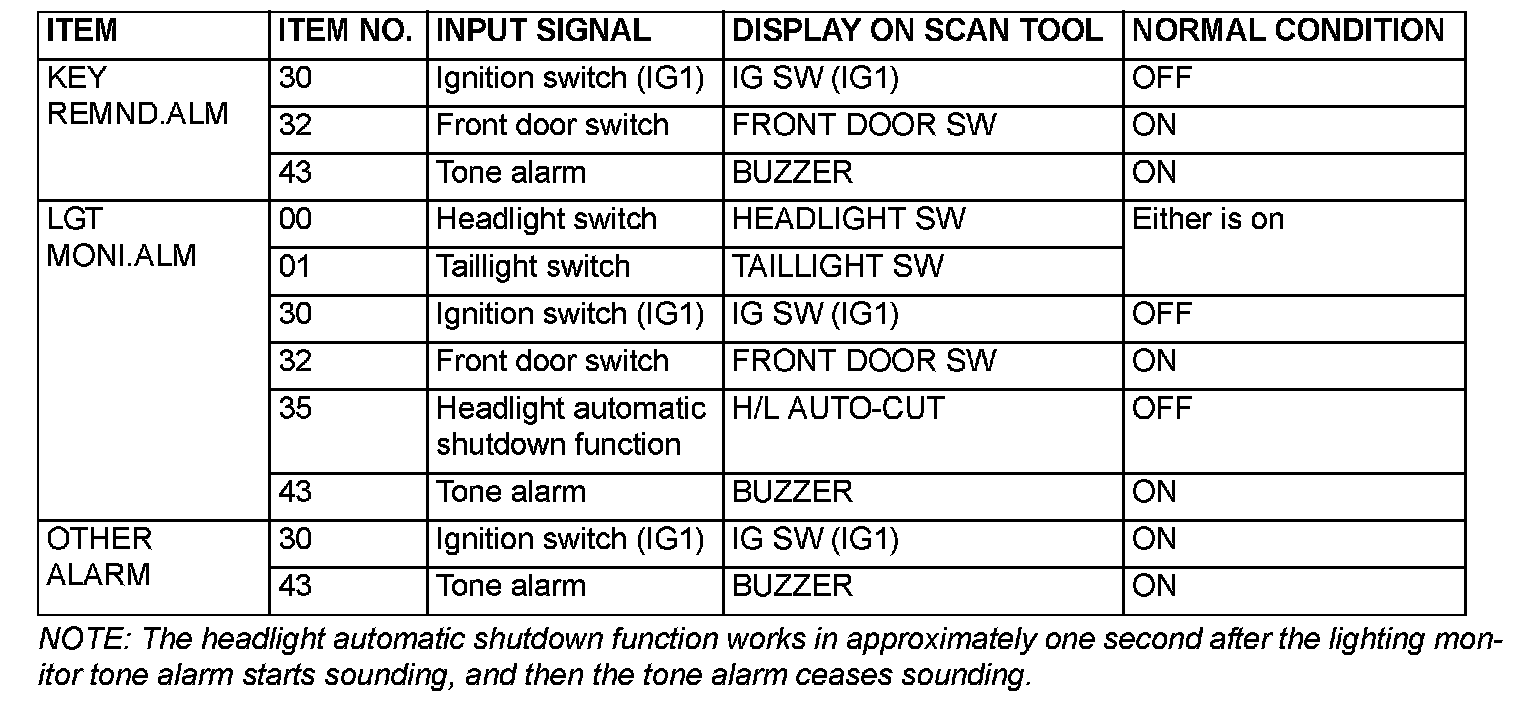

Buzzer:
BUZZER

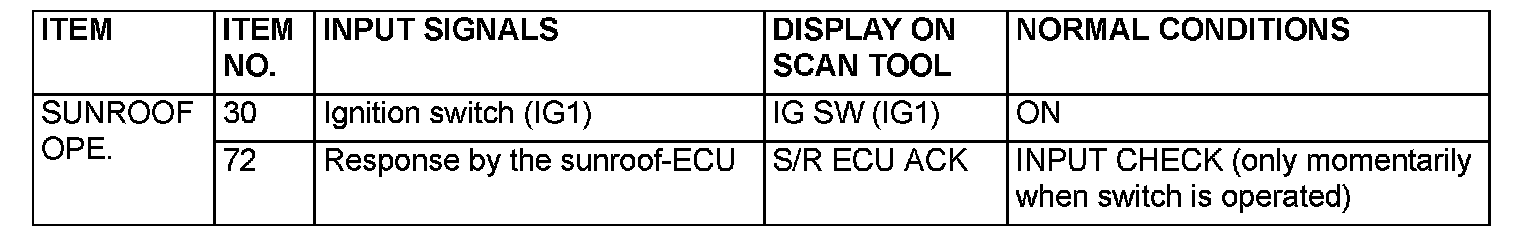

Sunroof:
SUNROOF
