>> B << 3RD-4TH Synchronizer Hub / Synchronizer Key / Synchronizer Sleeve

CAUTION: The synchronizer hub is not reusable.
  1. Assemble the 3rd-4th synchronizer hub and synchronizer sleeve together as shown in the illustration.

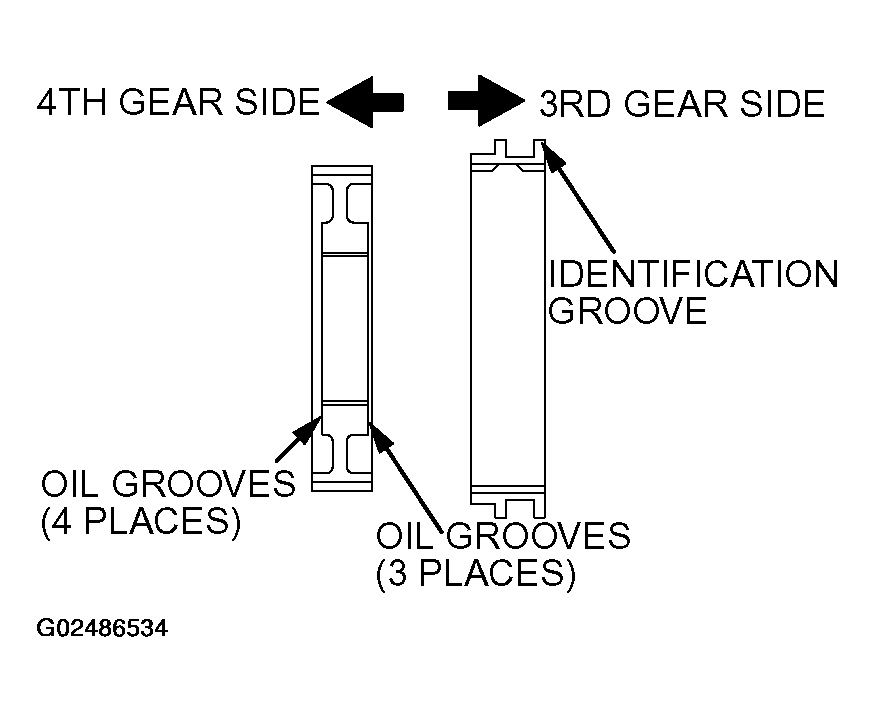

    Fig 1: Assembling 3rd-4th Synchronizer Hub And Synchronizer Sleeve
    G02486534Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Install the synchronizer springs on the synchronizer keys so that the center steps on both springs are not positioned on the same key.
  2. Install the synchronizer keys and synchronizer springs as shown in the illustration.

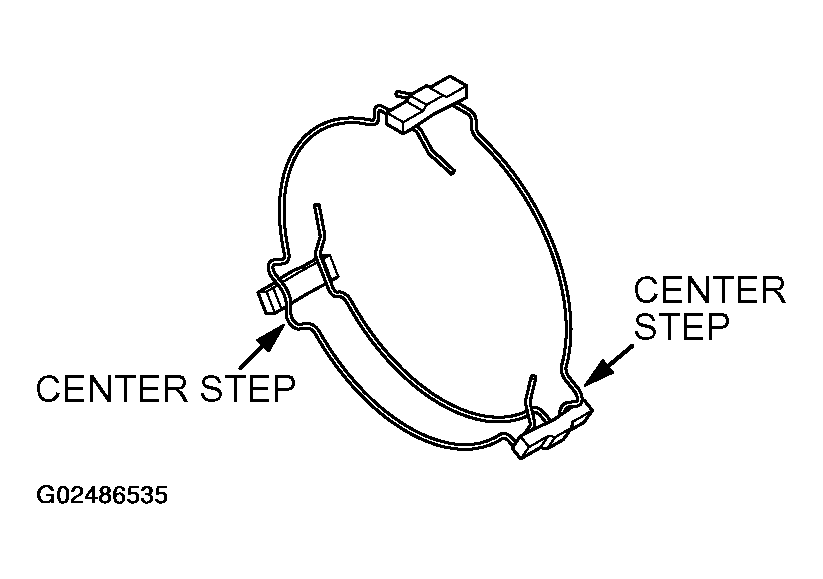

    Fig 2: Installing Synchronizer Keys And Synchronizer Springs
    G02486535Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
