>> C << 3RD-4TH Synchronizer Assembly Installation

CAUTION: When press fitting the synchronizer assembly onto the main shaft, make sure that the synchronizer rings do not get caught in the hub.

Using special tools MD998801, MD998812, MD998813 and MD998823, install the 3rd-4th synchronizer assembly.

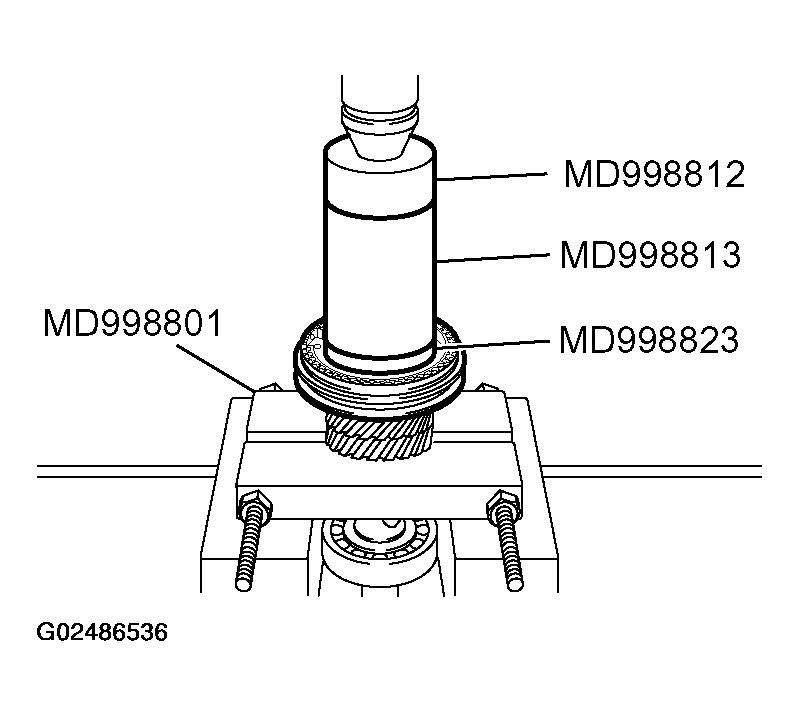

Fig 1: Installing 3rd-4th Synchronizer Assembly
G02486536Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
