>> G << 5TH-6TH Synchronizer Hub / Synchronizer Keys / Synchronizer

CAUTION: The synchronizer hub is not reusable.
  1. Assemble the 5th-6th synchronizer hub and synchronizer sleeve together as shown in the illustration.

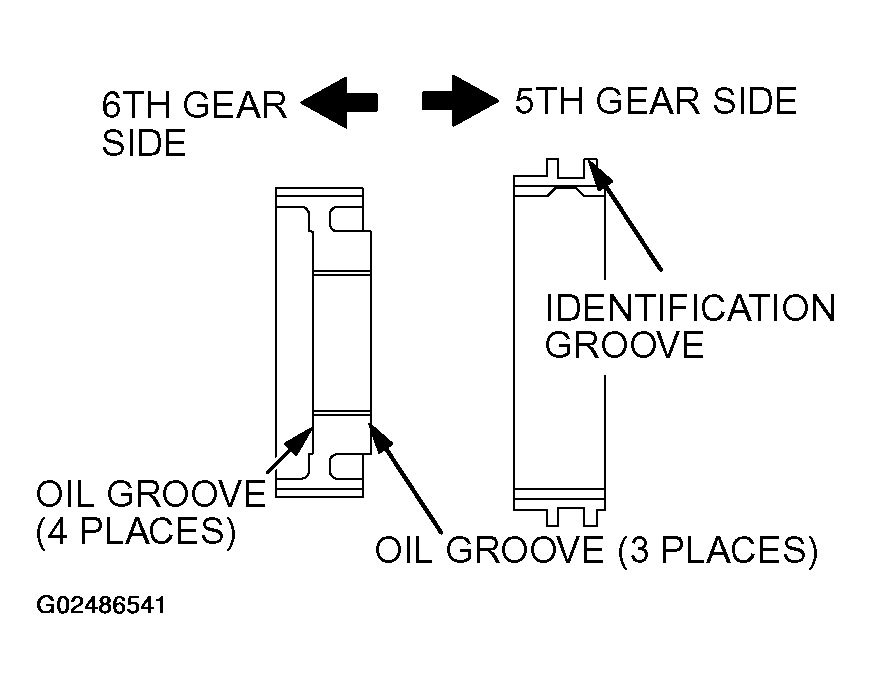

    Fig 1: Assembling 5th-6th Synchronizer Hub And Synchronizer Sleeve
    G02486541Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Install the synchronizer keys and synchronizer springs as shown in the illustration.

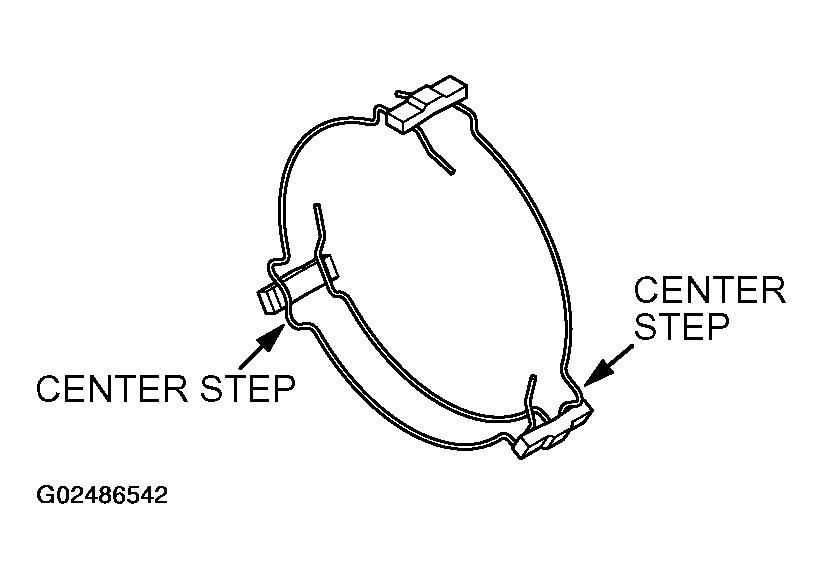

    Fig 2: Installing Synchronizer Keys And Synchronizer Springs
    G02486542Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
