>> H << 5TH-6TH Synchronizer Assembly Installation

CAUTION: When press fitting the synchronizer assembly onto the main shaft, make sure that the synchronizer rings do not get caught in the hub.

Using special tools MD998801, MD998812, MD998813 and MD998822, install the 5th-6th synchronizer assembly.

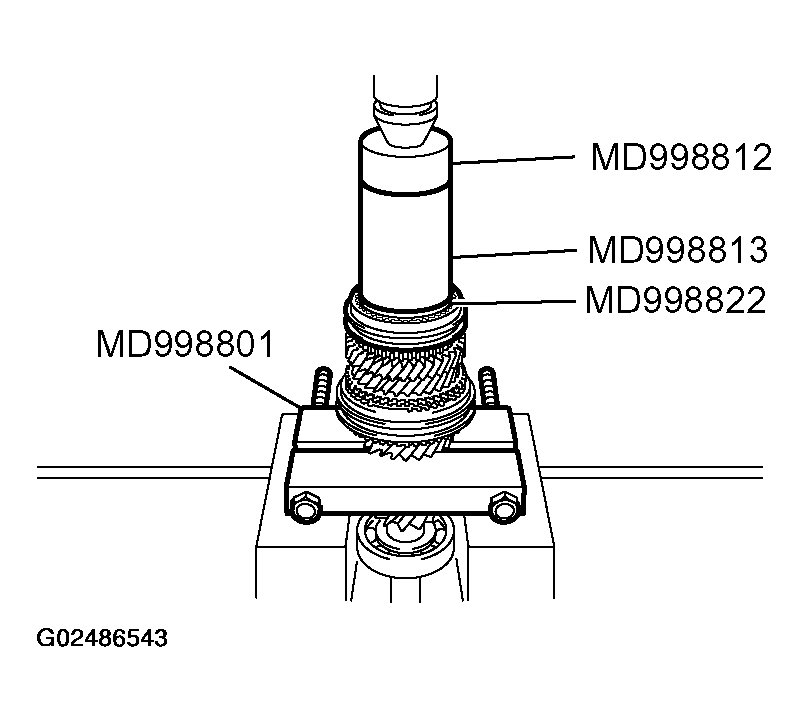

Fig 1: Installing 5th-6th Synchronizer Assembly
G02486543Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
