Disassembly And Assembly: Notes

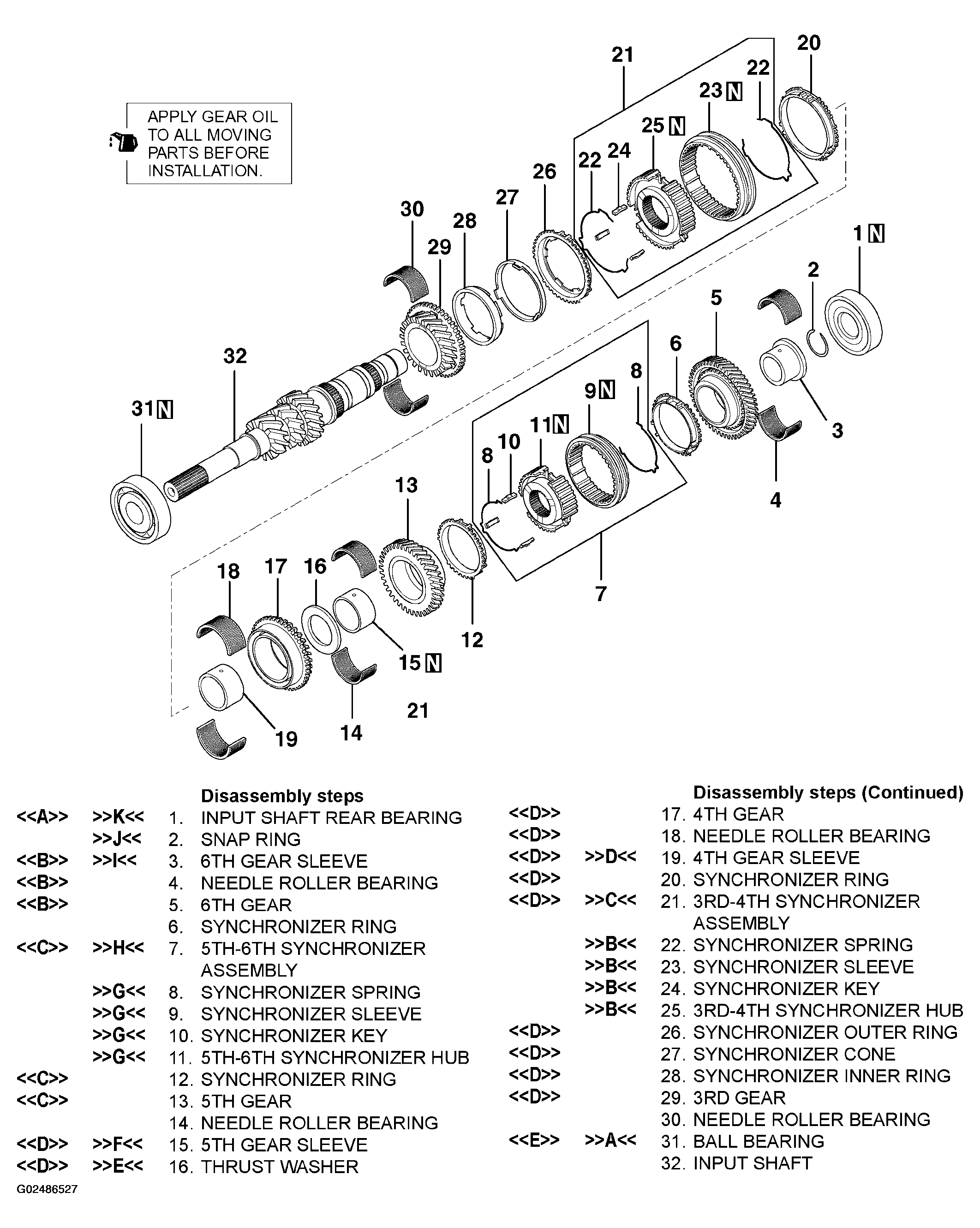

Fig 1: Disassembling/Assembling Input Shaft

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998801: Bearing remover
• MD998812: Installer cap
• MD998813: Installer 100
• MD998817: Bearing remover
• MD998818: Installer adapter
• MD998822: Installer adapter
• MD998823: Installer adapter
