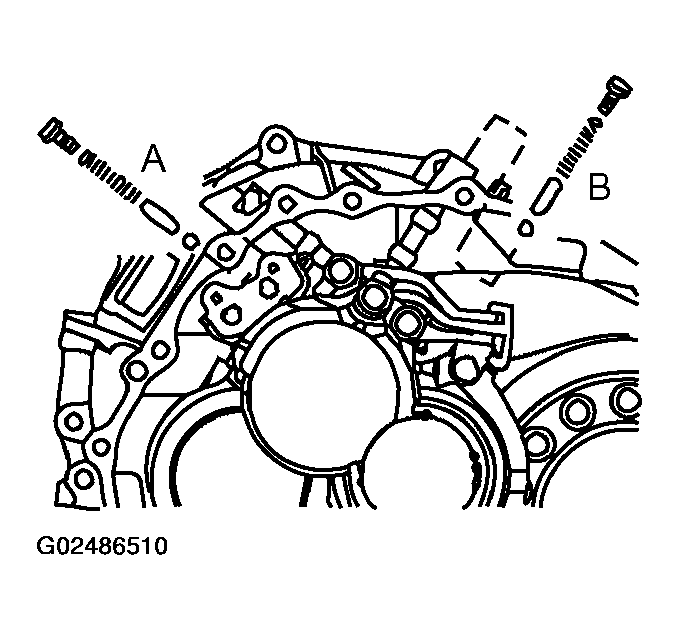

>> J << Shift Check Sleeve / Check Ball / Check Spring / Check Ball Plug Installation
CAUTION:
- The check balls are not reusable.
- Confirm the lengths of the shift check sleeves and check springs before installing them. (A: short, B: long)
- Be careful not to let the check balls drop into the air breathing grooves in the clutch housing.
Install the two shift check sleeves, two check balls, two check springs and two check ball plugs into position.
