>> K << Ball Bearing Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using special tool MD998801, support the 2nd speed gear portion of the input shaft, and then set them on the press.
  2. Using special tools MD998812 and MD998819, press install the ball bearing in the input shaft.

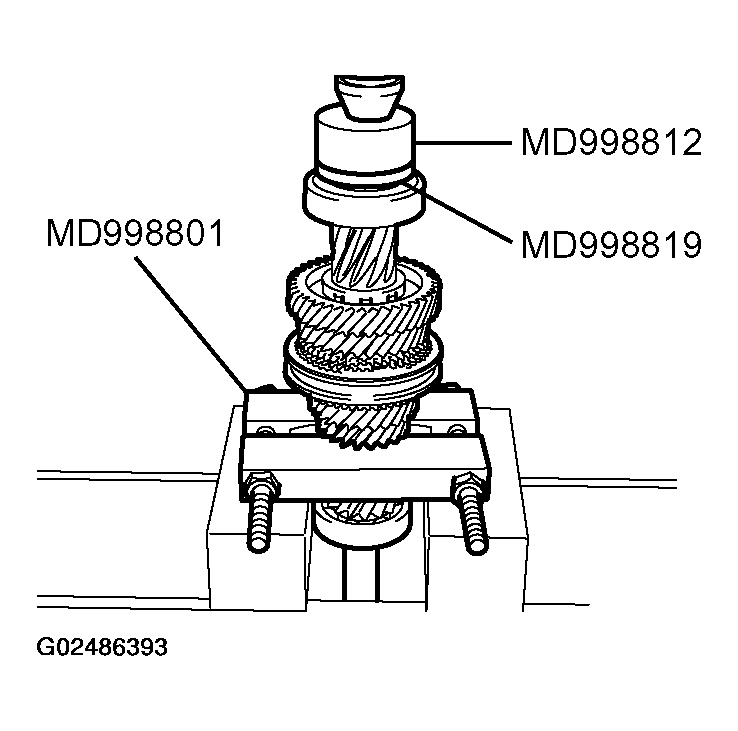

    Fig 1: Installing Ball Bearing
    G02486393Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
