>> I << Snap Ring Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the thickest snap ring that can be fitted in the groove of output shaft.
  2. Make sure that the 3rd speed gear end play meets the standard value.
    • Standard value: 0 - 0.09 mm (0 - 0.0035 inch)

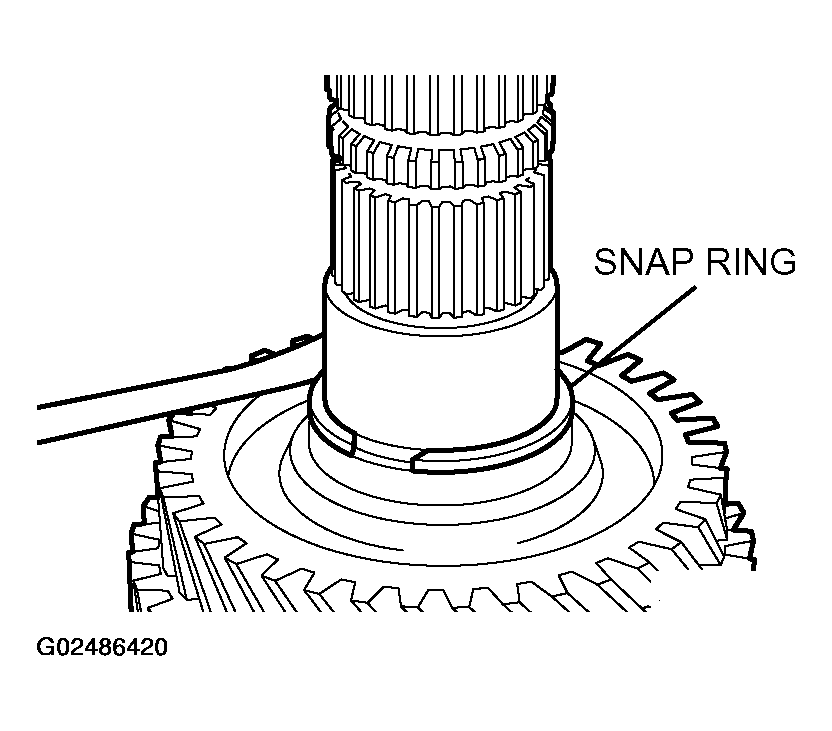

    Fig 1: Measuring 3rd Speed Gear End Play
    G02486420Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
