>> Q << Snap Ring Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the thickest snap ring that can be fitted in the groove of output shaft.
  2. Make sure that the taper roller bearing end play meets the standard value.
    • Standard value: 0 - 0.09 mm (0 - 0.0035 inch)

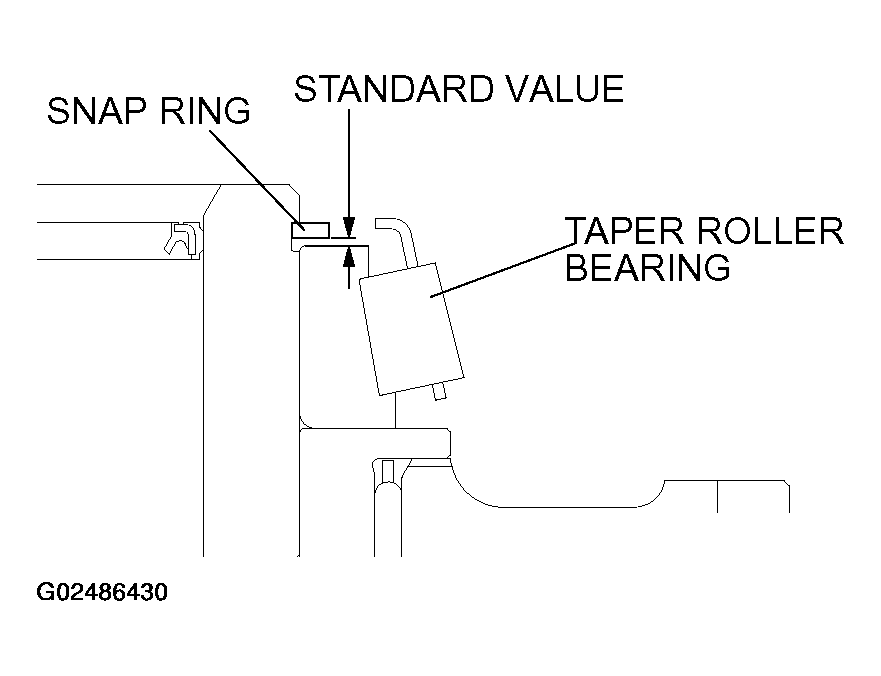

    Fig 1: Identifying Taper Roller Bearing End Play
    G02486430Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
