>> F << Under Cover Installation

WARNING: This page is about a different variant/trim than selected.
CAUTION: Squeeze out the sealant uniformly, while making sure that it is not broken or excessively applied.
  1. Apply a 2 mm (0.08 inch) diameter bead of sealant (Mitsubishi genuine part number MD997740 or equivalent) to the illustrated position of the transaxle case.
    NOTE: Be sure to install the case quickly while the sealant is wet (within 15 minutes).
  2. Install the under cover to the transaxle case and tighten the bolts to specified torque.
    • Tightening torque: 6.9 +/- 0.9 N.m (61 +/- 7 in-lb)
    NOTE: After installation, keep the sealed area away from oil for approximately one hour.

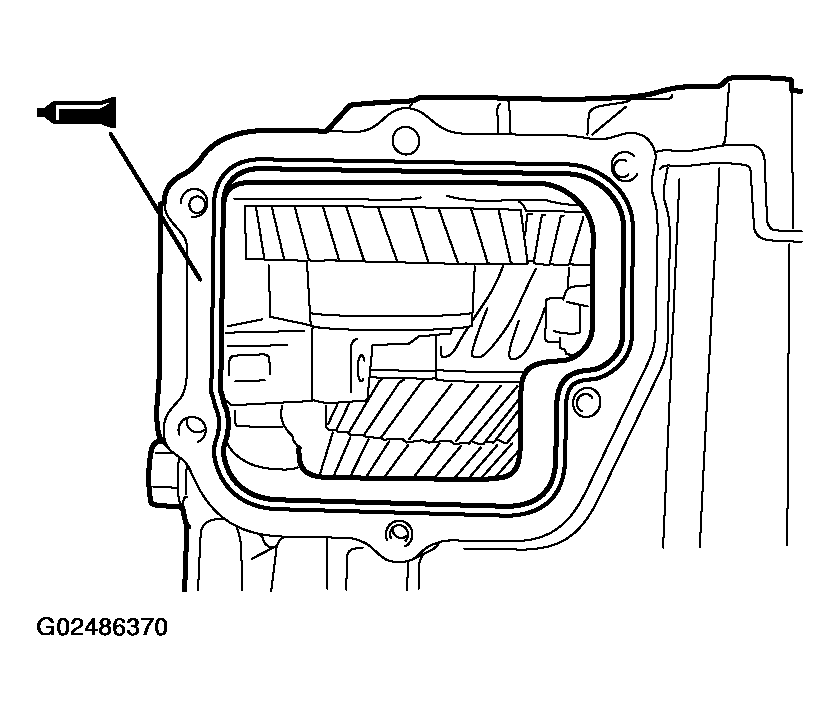

    Fig 1: Applying Sealant To Transaxle Case Under Cover
    G02486370Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
