<< A >> Spring Pin Removal

WARNING: This page is about a different variant/trim than selected.
  1. Shift the 5th-reverse shift fork in the direction shown in the illustration.
  2. Using a pin punch, remove the spring pin from the shift fork and rail.

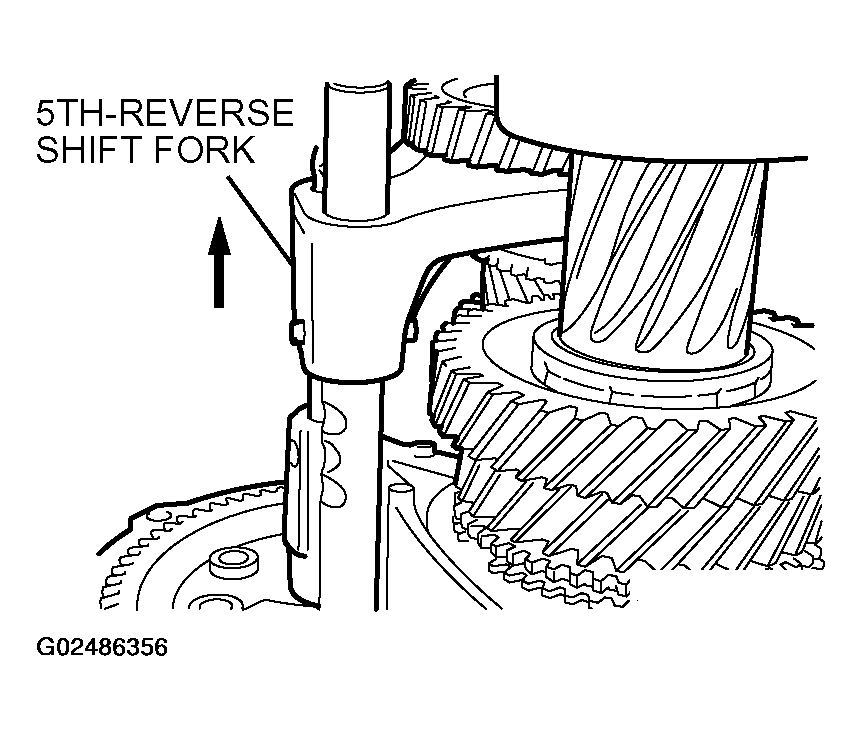

    Fig 1: Identifying Shifting Direction Of 5Th-Reverse Shift Fork
    G02486356Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
