>> A << Bushing Installation

WARNING: This page is about a different variant/trim than selected.

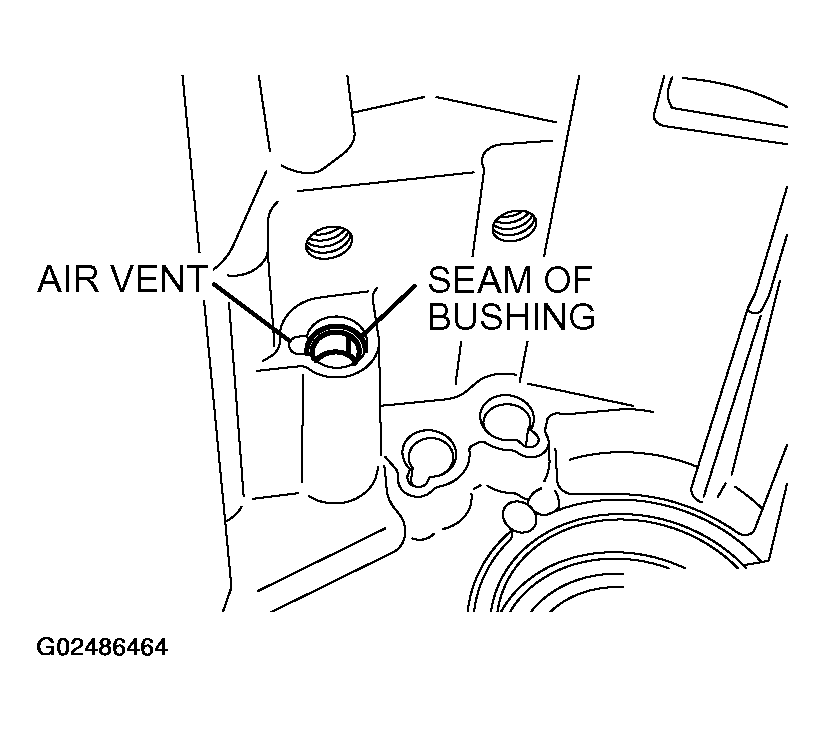

  1. Press fit the bushing so the seam is away from the air vent.
    Fig 1: Fitting Bushing
    G02486464Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

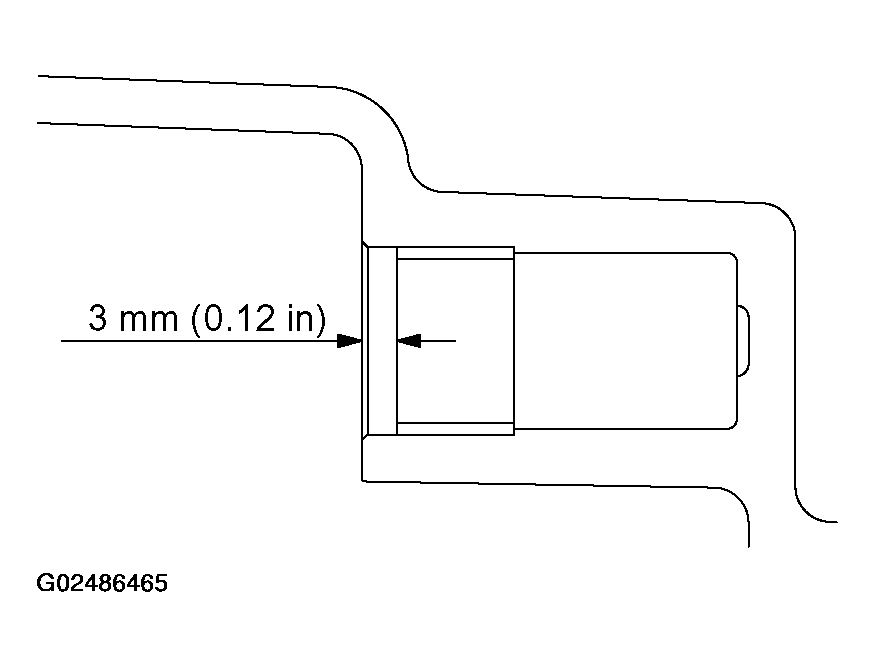

  2. Be sure the bushing is fully seated as shown. It must be 3 mm (0.12 inch) below the housing surface.
    Fig 2: Identifying Clearance Between Bushing And Housing Area
    G02486465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
