<< E >> Air Bag Module Removal (Front Passenger's Side)

WARNING:
  • When the passenger's air bag module is removed, do not damage the engagement of the pawls.
  • The removed passenger's air bag module should be stored in a clean, dry place with the deployment surface facing up.

    Insert the screwdriver (-) into the position specified in the figure and lift the screwdriver upward to release the pawls engaged, and then remove the passenger's air bag module.

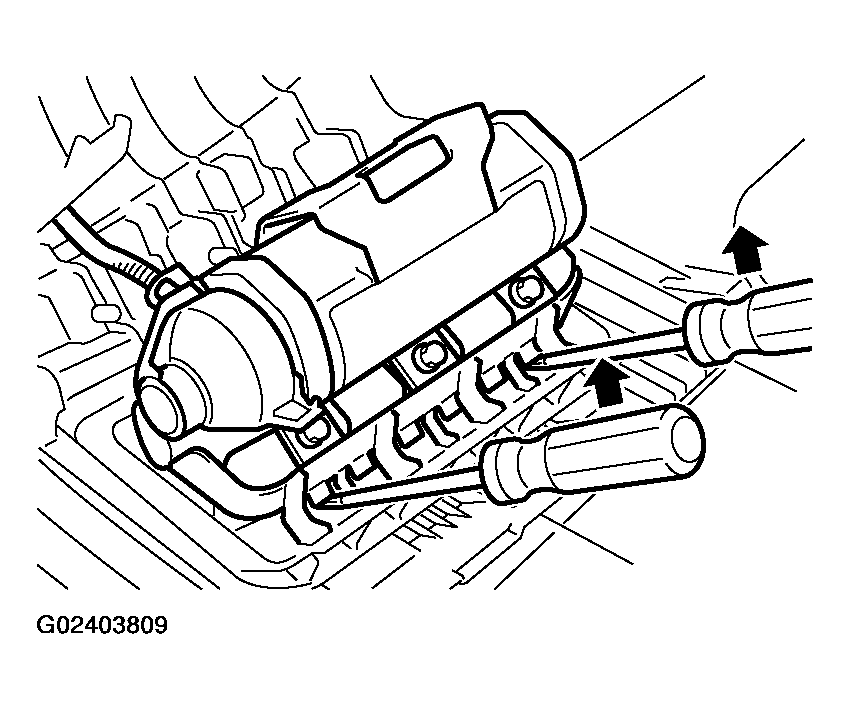

    Fig 1: Removing Passenger's Air Bag Module
    G02403809Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
