>> A << Upper Spring Seat Installation

If the upper spring seat peeled off the pad, adhere the seat and the pad with a double-sided tape.

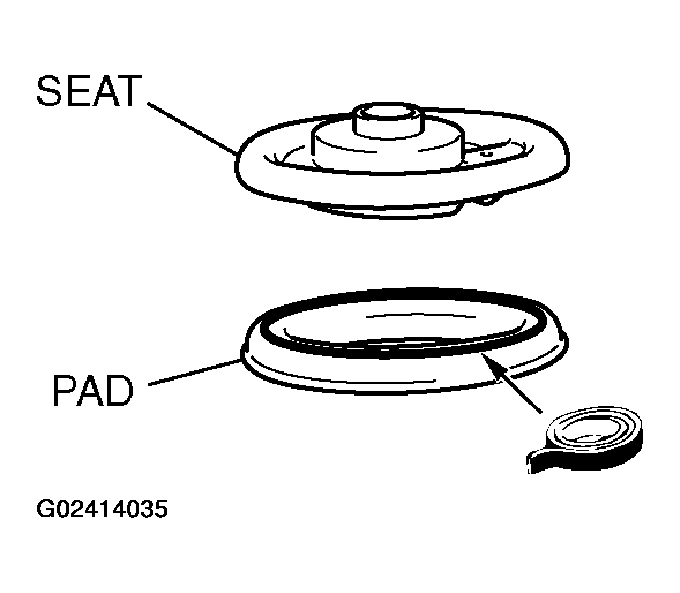

Fig 1: Identifying Upper Spring Seat
G02414035Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
