>> M << 5TH Speed-Reverse Synchronizer Hub Installation

  1. Set the output shaft on the press support stand.
  2. Make sure that the synchronizer ring is fitted correctly on the cone of the 5th speed gear.
  3. Check that the 5th speed-reverse synchronizer hub is oriented correctly for installation, and fit it on the output shaft.

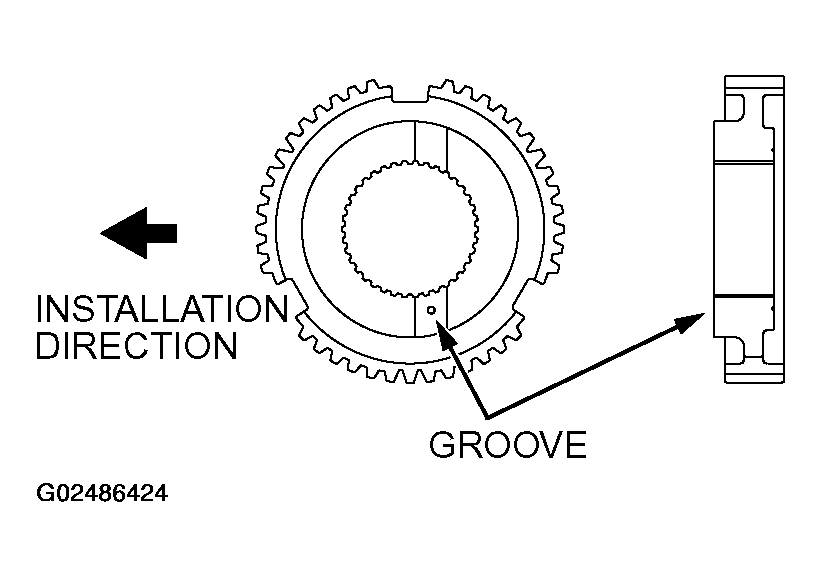

    Fig 1: Identifying 5th Speed-Reverse Synchronizer Hub Installation Direction
    G02486424Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Using special tools MD998812, MD998813, MD998821 and MD998364, press install the 5th speed-reverse synchronizer hub with the press.
  5. Make sure that the synchronizer ring on the 5th speed gear side can rotate freely.

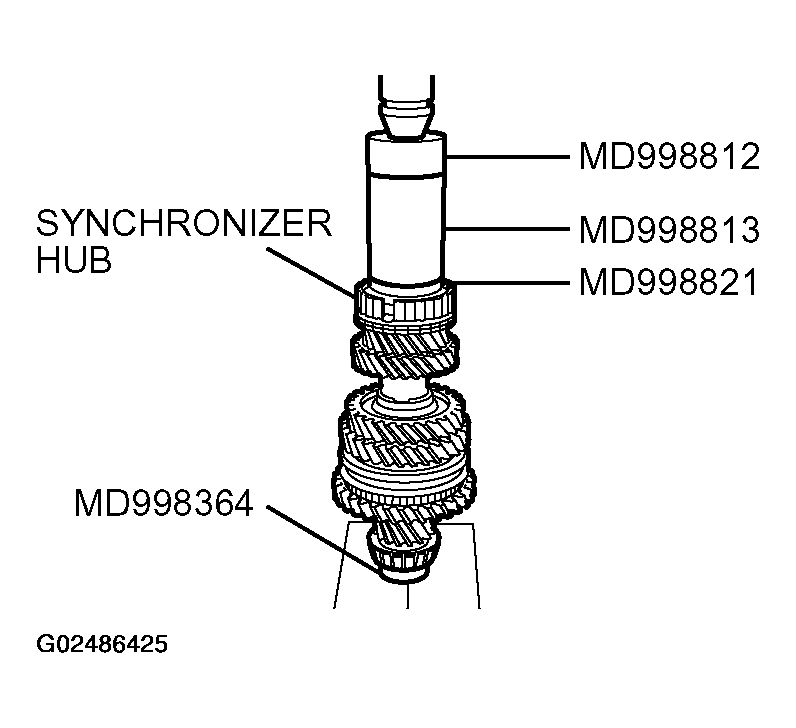

    Fig 2: Installing 5th Speed-Reverse Synchronizer Hub
    G02486425Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
