Pad Wear Check

WARNING: This page is about a different variant/trim than selected.

WARNING:

Always replace both brake pads on each wheel as a set (both front wheels or both rear wheels). Failure to do so will result in uneven braking, which may cause unreliable brake operation.
If there is significant difference in the thickness of the pads on the left and right sides, check the sliding condition of the piston and slide pins.

Measure thickness at the thinnest and most worn area of the pad.

Replace the pad assembly if pad thickness is less than the limit value.

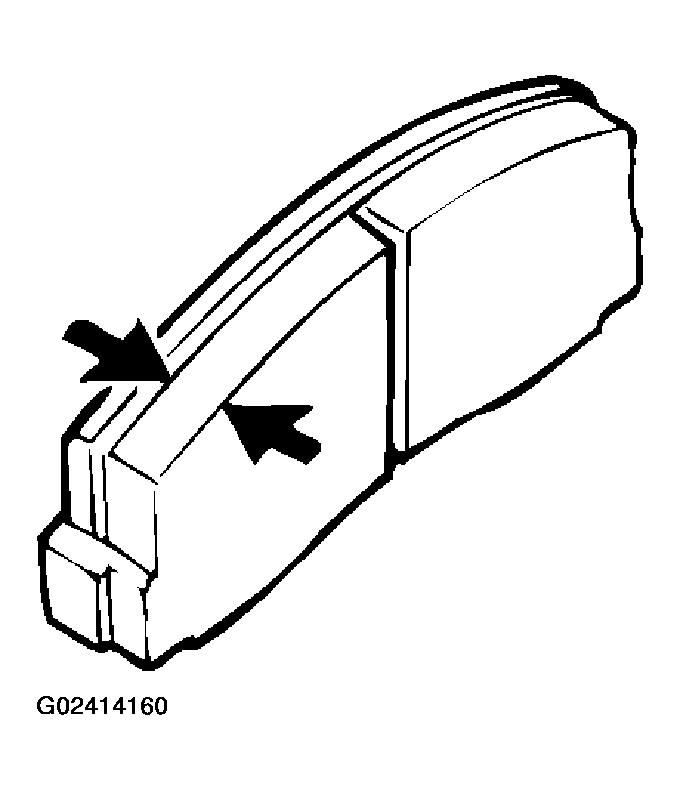

Fig 1: Identifying Pad Thickness

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
