Removal And Installation: Notes

WARNING: This page is about a different variant/trim than selected.

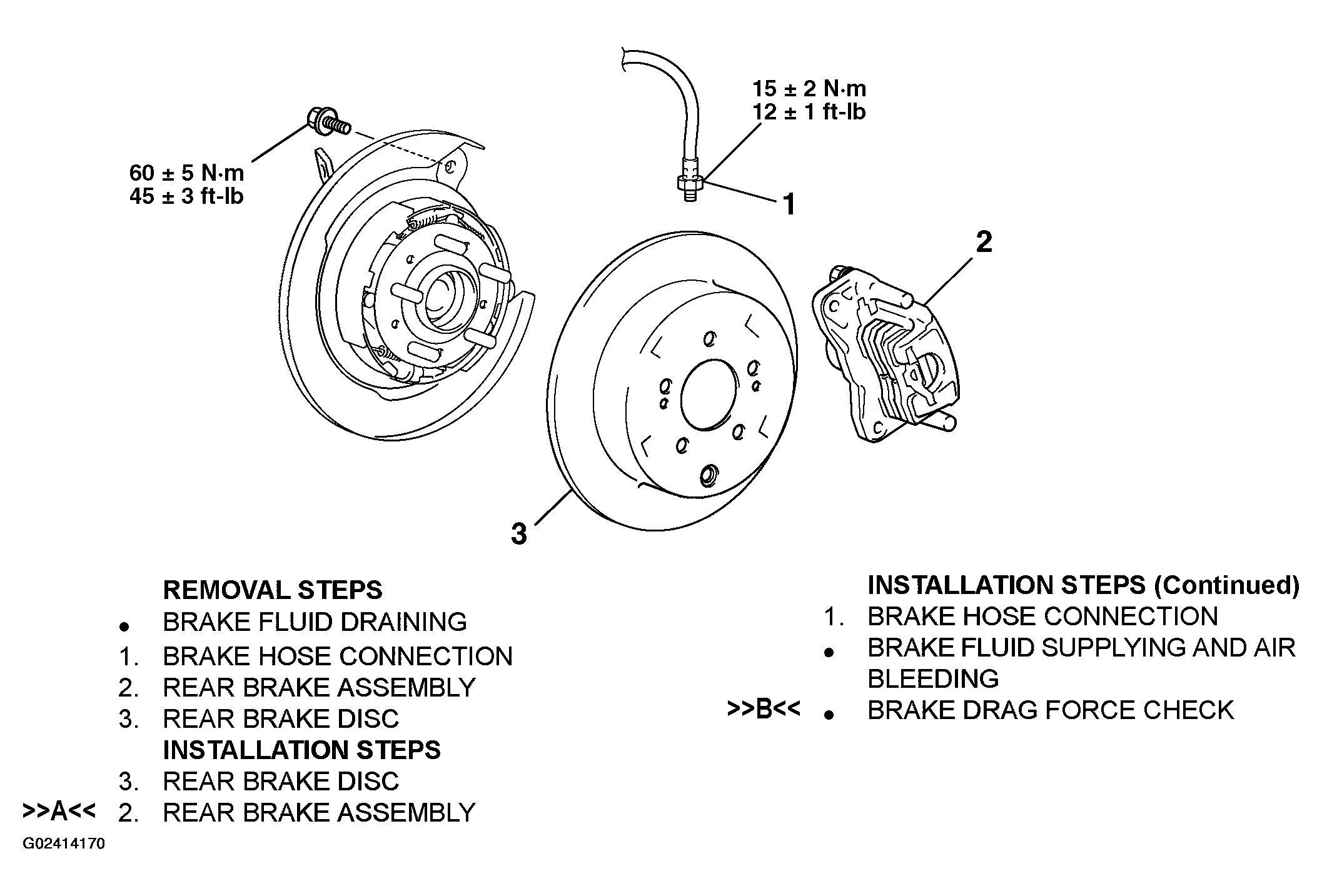

Fig 1: Removing Rear Disc Brake Assembly
G02414170Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
