Assembly/Shoe-To-Lever Spring/Auto Adjuster Assembly Installation

WARNING: This page is about a different variant/trim than selected.

Assemble the shoe and lever assembly, the adjuster lever, the shoe and lining assembly, the shoe-to-lever spring, the automatic adjuster assembly temporarily.

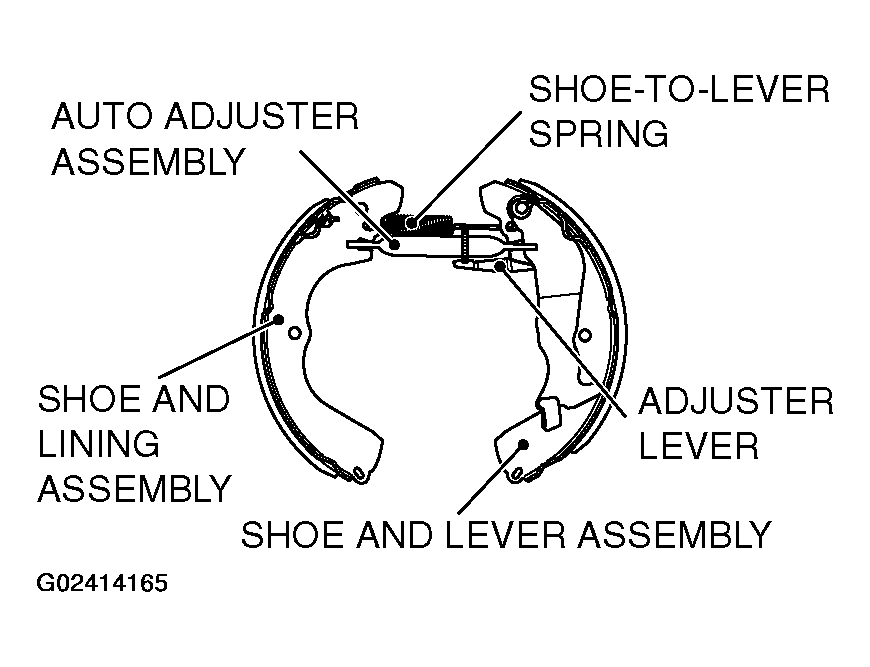

Fig 1: Assembling Shoe And Lever Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Depress the wheel cylinder piston by hand.

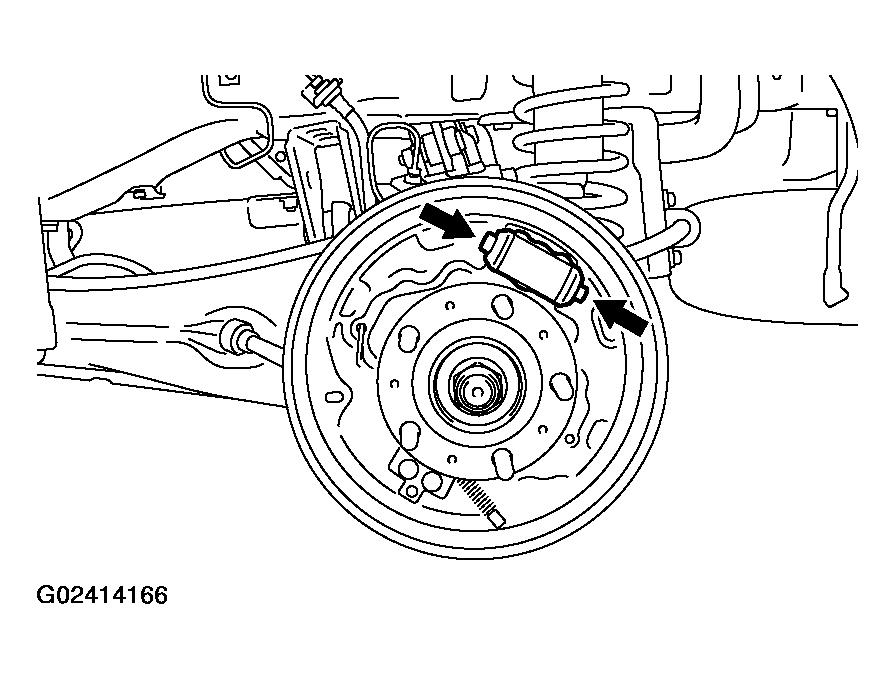

Fig 2: Depressing Wheel Cylinder Piston
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the assembly to the backing plate carefully.

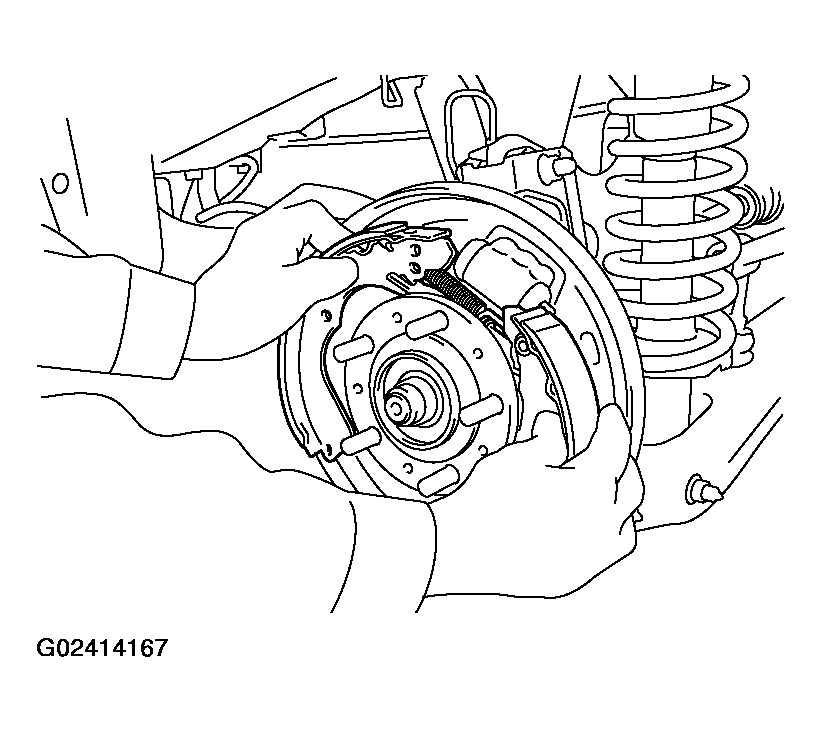

Fig 3: Installing Auto Adjuster Assembly To Backing Plate
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
