INSPECTION PROCEDURE G-2: Windshield Wiper And Washer: The Windshield Wipers Do Not Work When The Windshield Wiper Switch Is At "INT" Or "MIST" Position Or The Windshield Washer Switch Is At "ON" Position. However, The Wipers Work At Low Speed When The Windshield Wiper Switch Is At "LO" Or "HI".: Notes

NOTE: This troubleshooting procedure requires the use of scan tool MB991958 and SWS monitor kit MB991813. For details on how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR ."

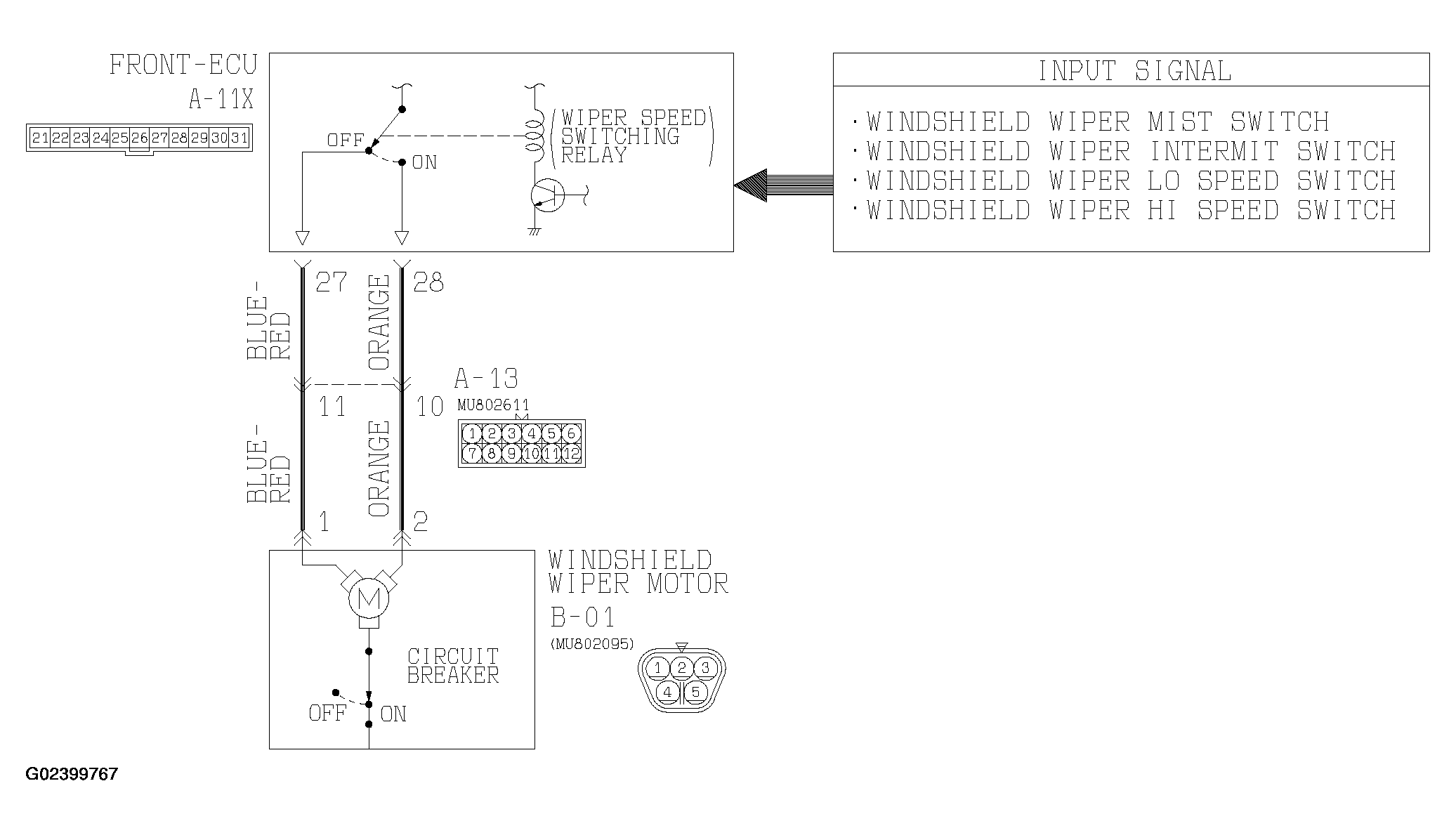

Fig 1: Windshield Wiper Motor Drive Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
