Fog Light Relay Check

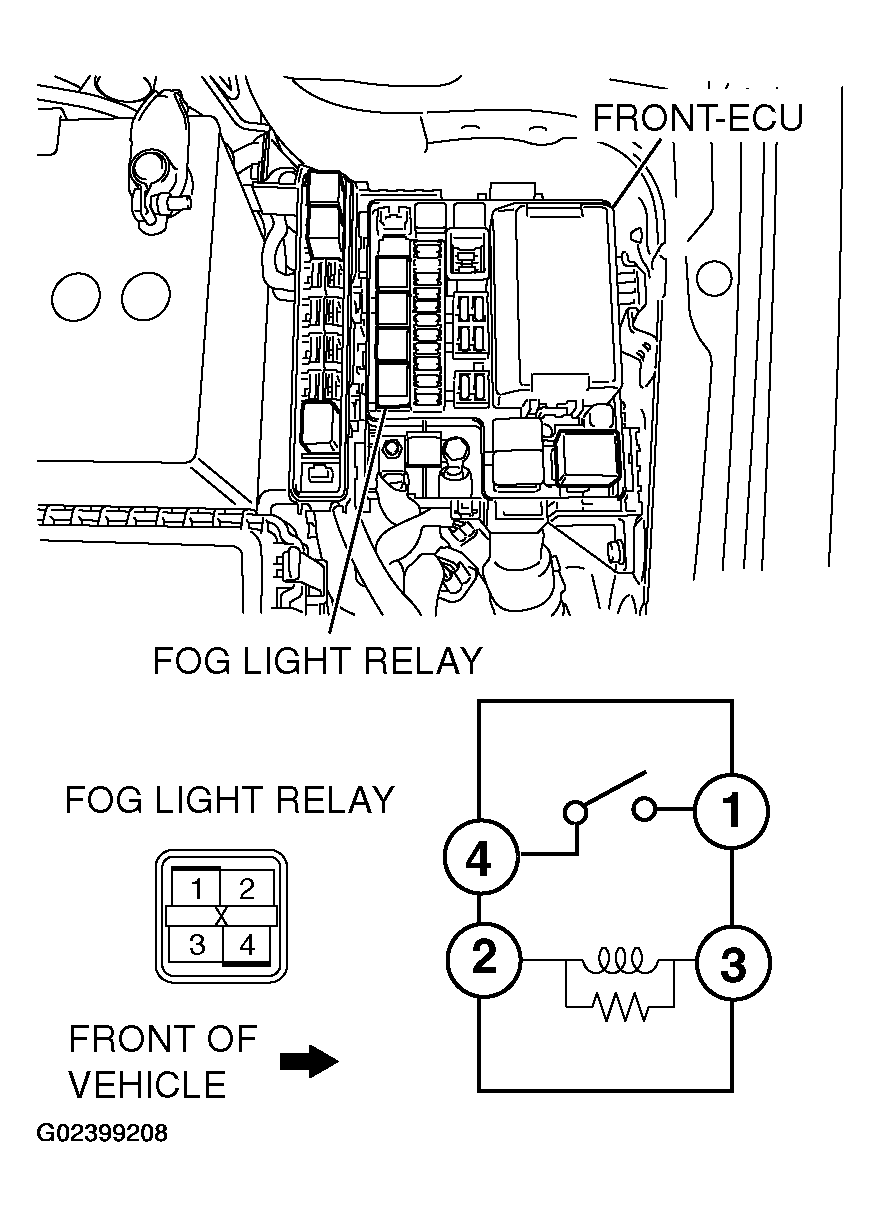

Fig 1: Checking Fog Light Relay
G02399207Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

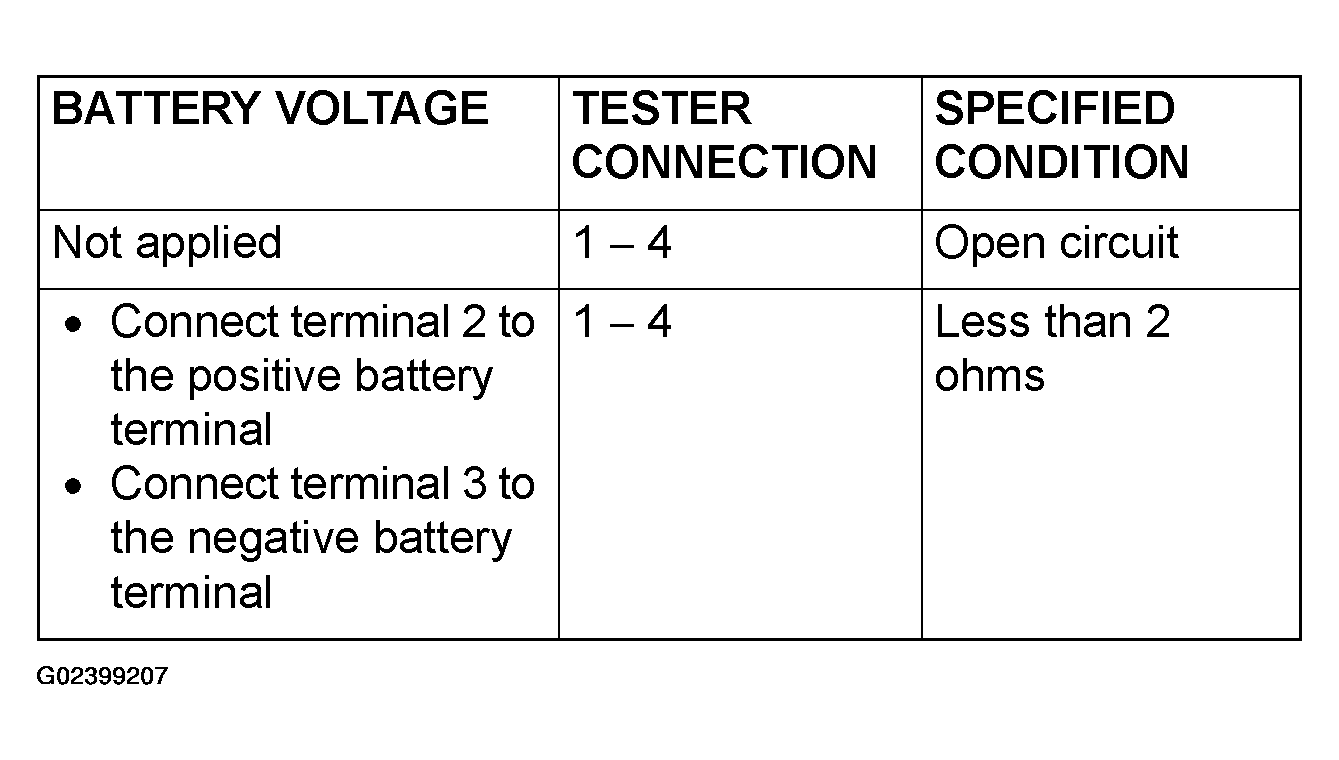

Fig 2: Tester Connection Specified Condition Chart
G02399208Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
