Front Turn Signal Light Bulb

  1. Remove the splash shield.
  2. Screw out the front turn signal socket.

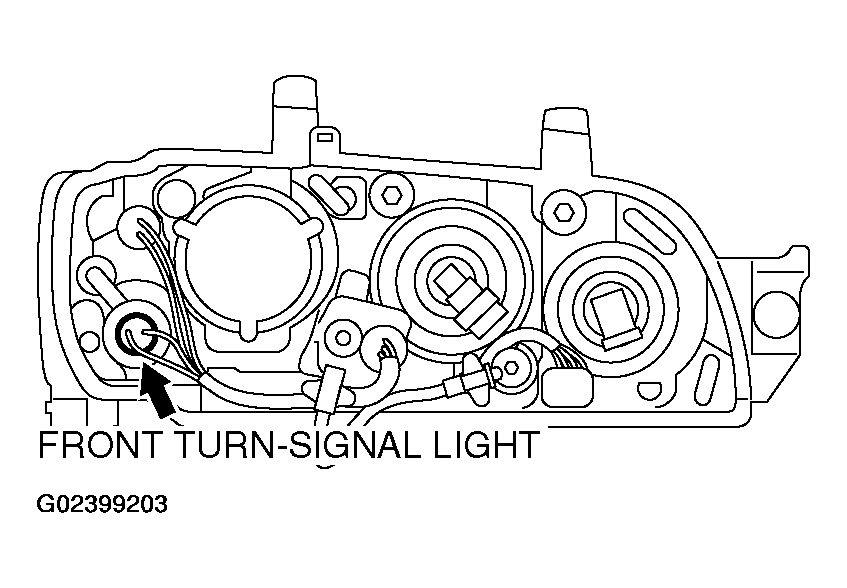

    Fig 1: Identifying Front Turn Signal Socket
    G02399203Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
