Position Light Bulb

  1. Remove the splash shield.
  2. Screw out the position light socket.

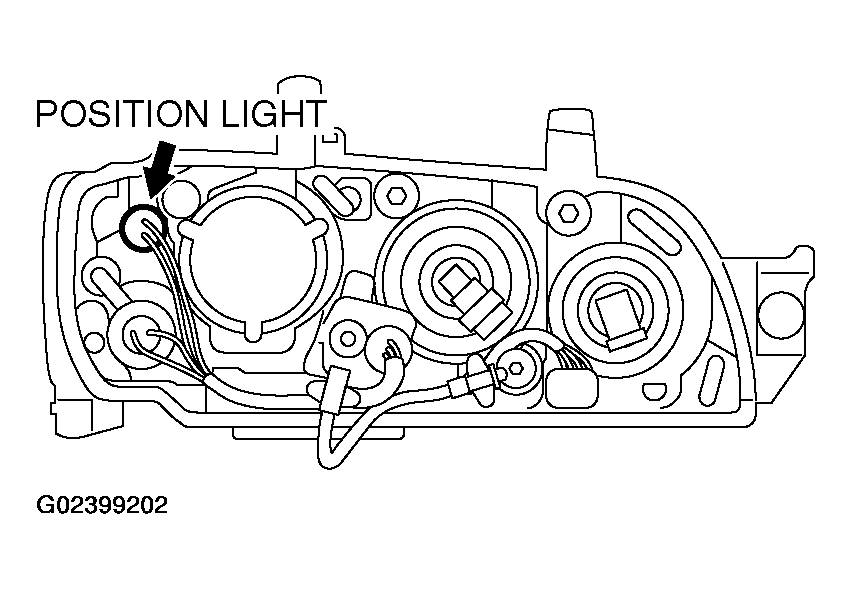

    Fig 1: Turning Position Light Bulb
    G02399202Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
