INSPECTION PROCEDURE 1: When Power Switch is Turned "ON," No Power is Available.: Notes

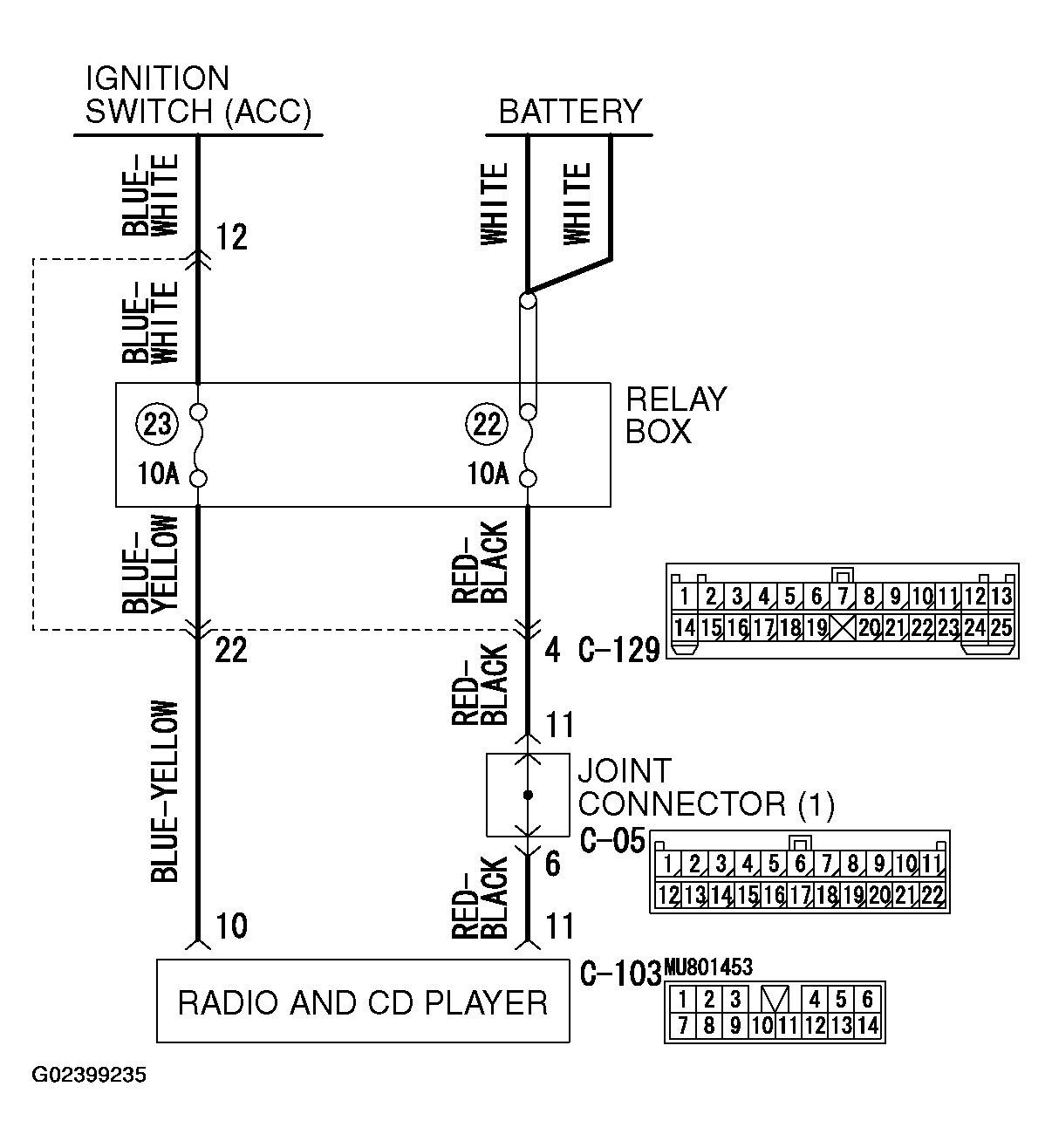

Fig 1: Power Switch Is Turned On And No Power Is Available - Circuit Diagram
G02399235Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

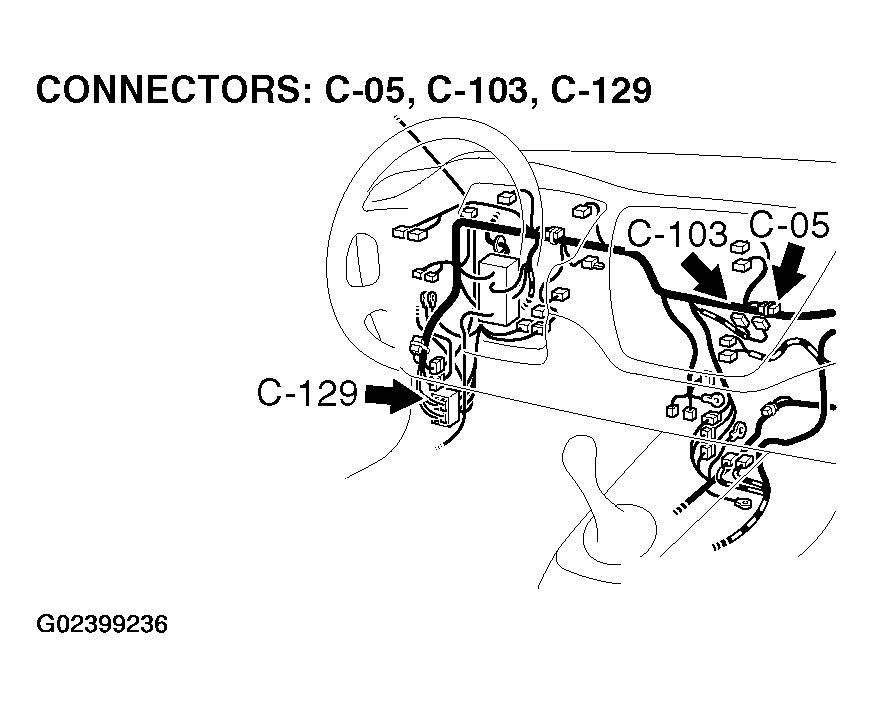

Fig 2: Identifying Connector C-05, C-103 And C-129 Terminal
G02399236Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
