DTC 32: Longitudinal G-Sensor System: Notes

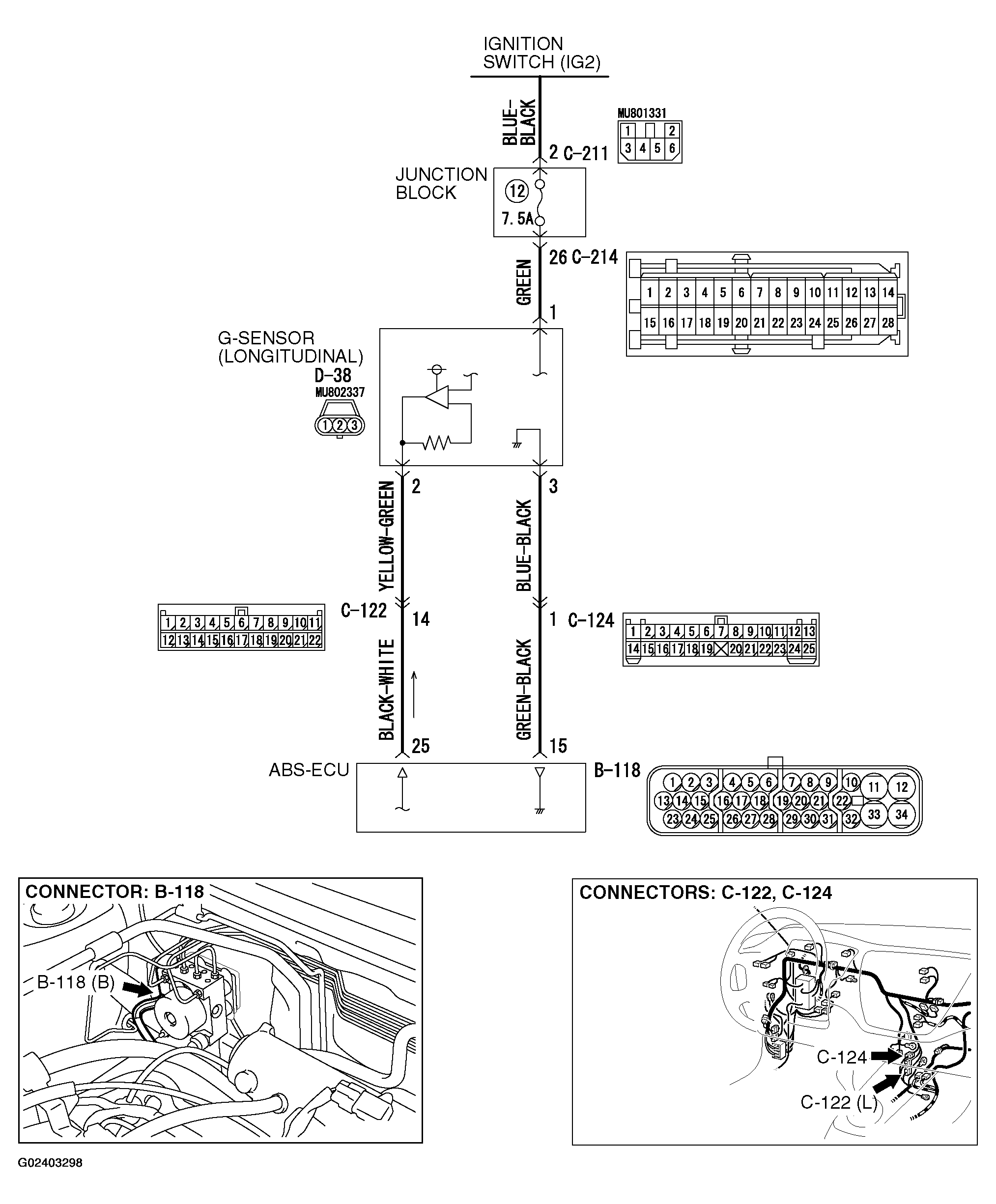

Fig 1: Longitudinal G-Sensor Circuit
G02403298Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

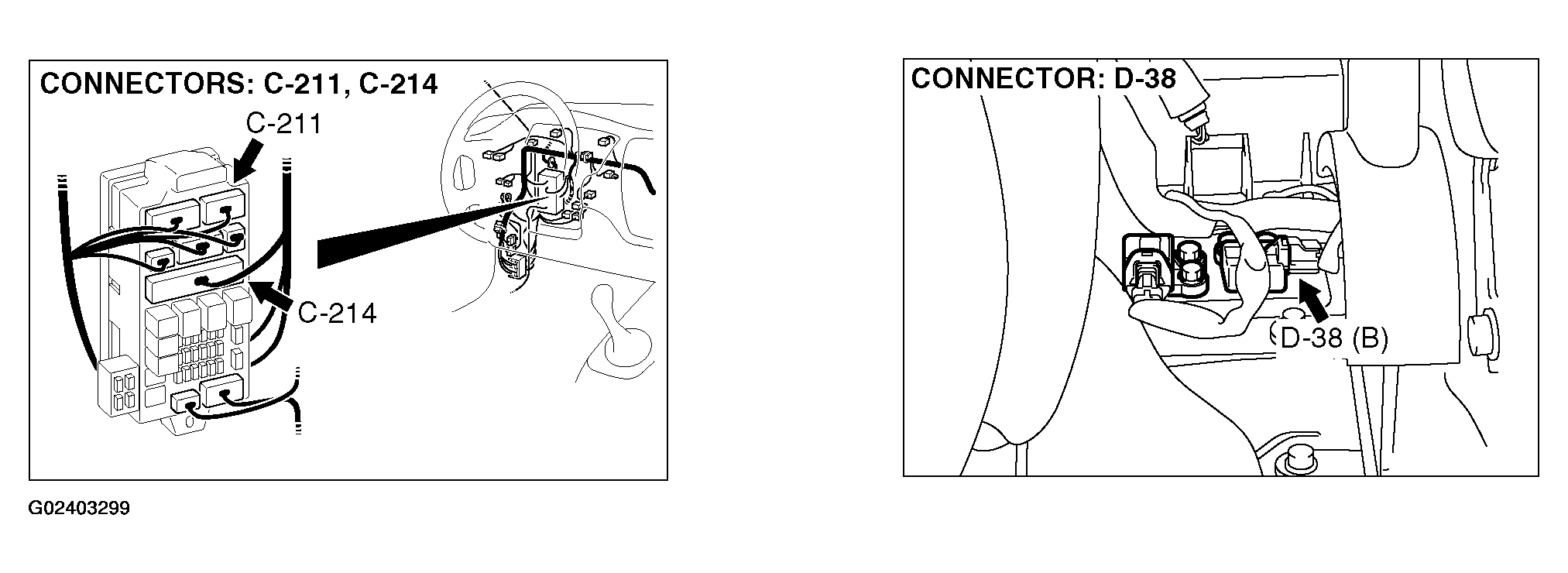

Fig 2: Identifying Connector Terminal Location
G02403299Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
