DTC 81, 82, 83: Steering Angular Velocity Sensor System: Notes

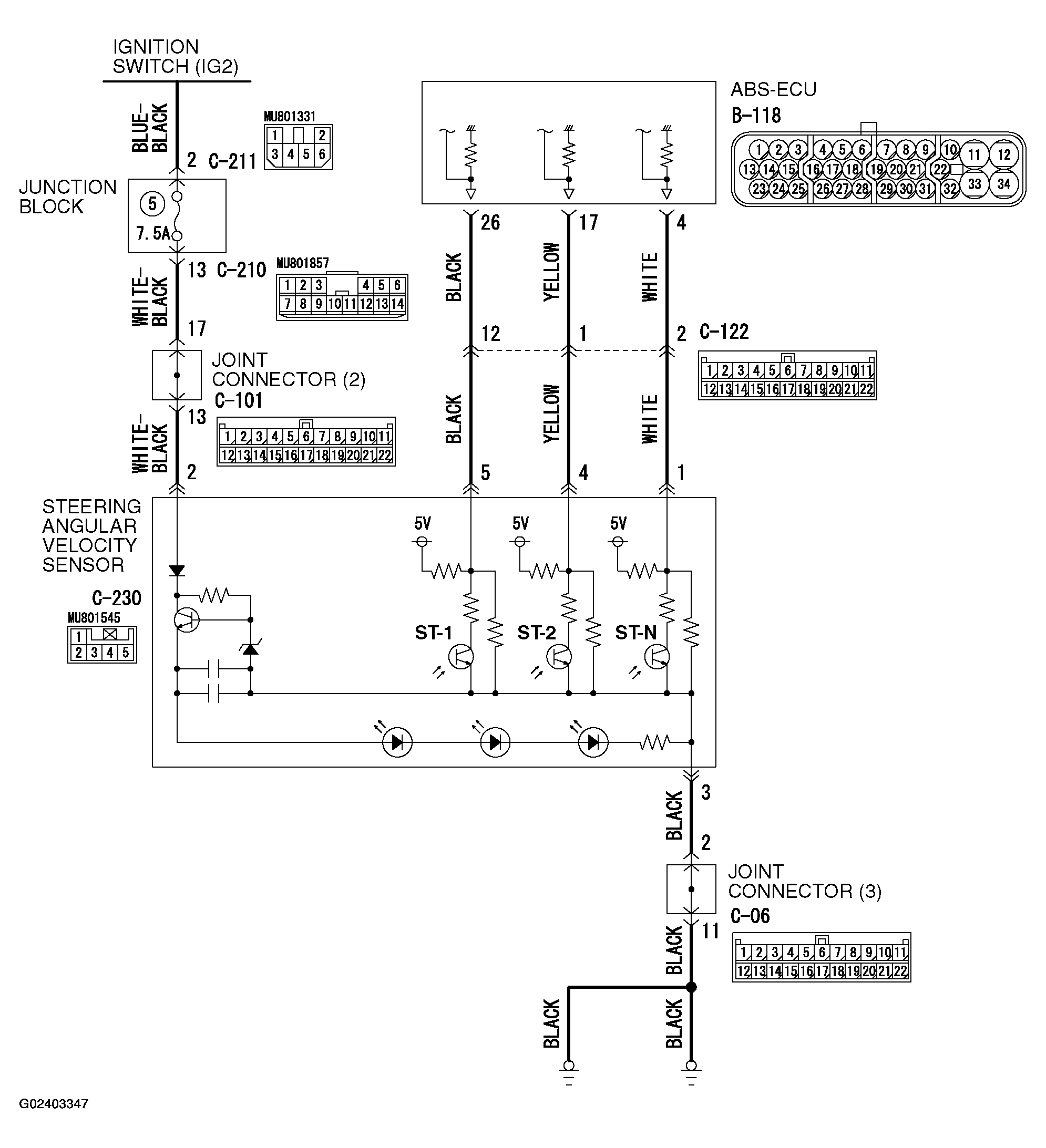

Fig 1: Steering Angular Velocity Sensor Circuit
G02403347Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

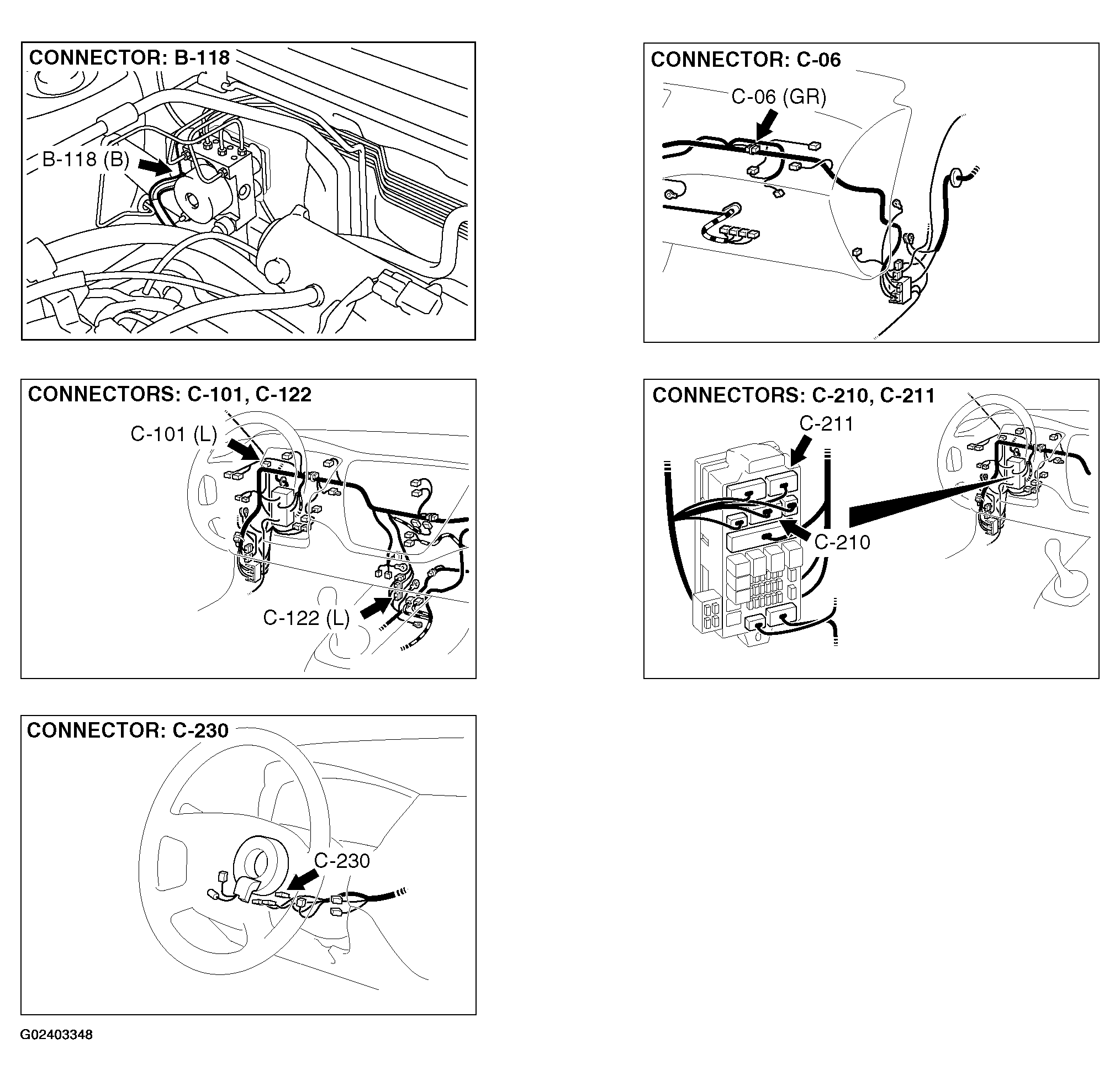

Fig 2: Identifying Connector Terminal Location
G02403348Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
