INSPECTION PROCEDURE 1: Communication between the Scan Tool and all the Systems is Not Possible.: Diagnosis

Required Special Tool:

  1. STEP 1. Check the power supply circuit. Measure the voltage at data link connector C-14.

    Measure the voltage between terminal 16 and ground. It should measure approximately 12 volts (battery positive voltage).

    Q: Is battery positive voltage (approximately 12 volts) present?

    • YES :  Go to  Step 4.
    • NO :  Go to Step 2.

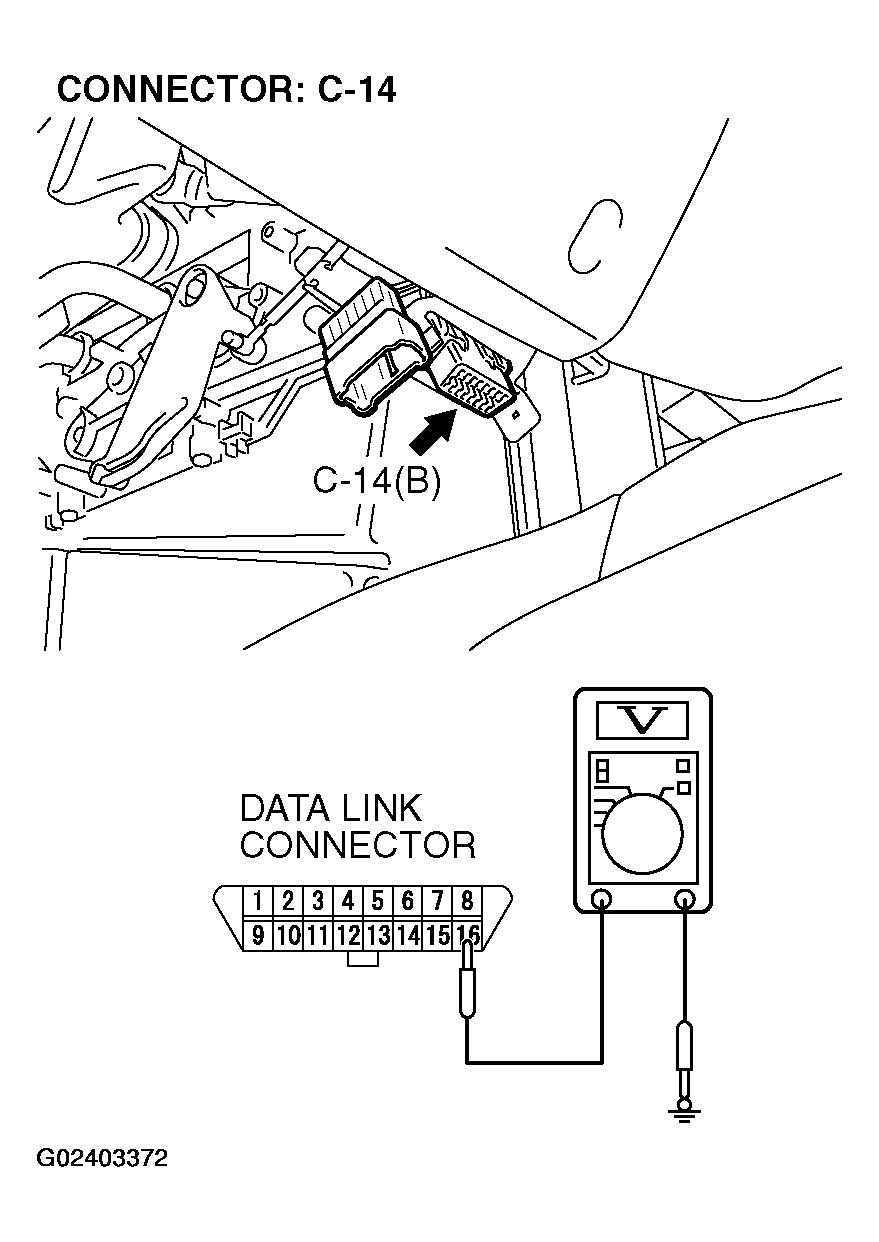

    Fig 1: Measuring Voltage Between Terminal 16 And Ground
    G02403372Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. STEP 2. Check the following connectors.
    • Data link connector C-14

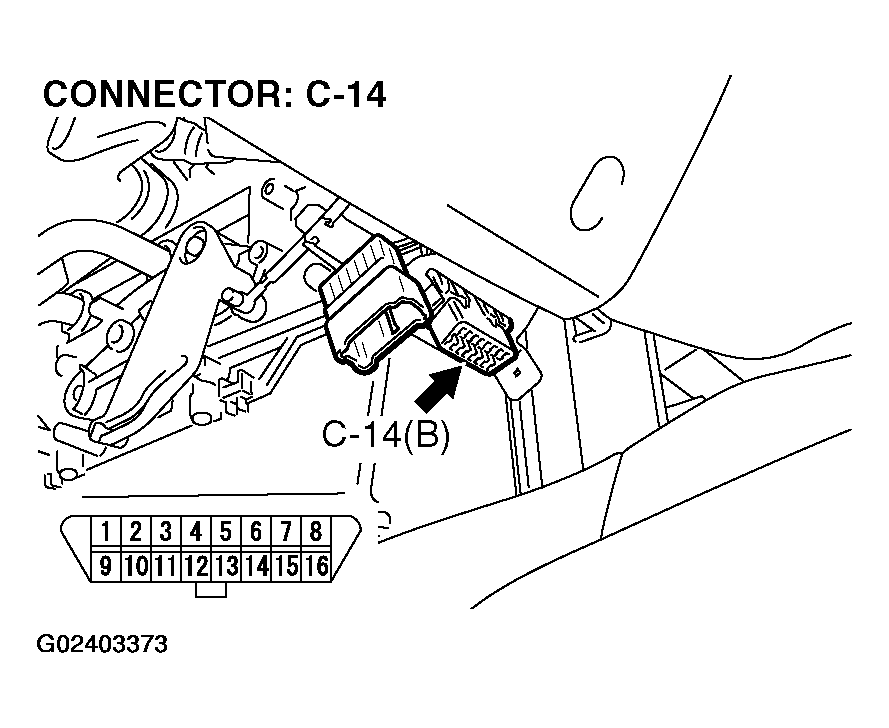

      Fig 2: Identifying Data Link Connector C-14
      G02403373Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    • Junction block connectors C-212, C-214

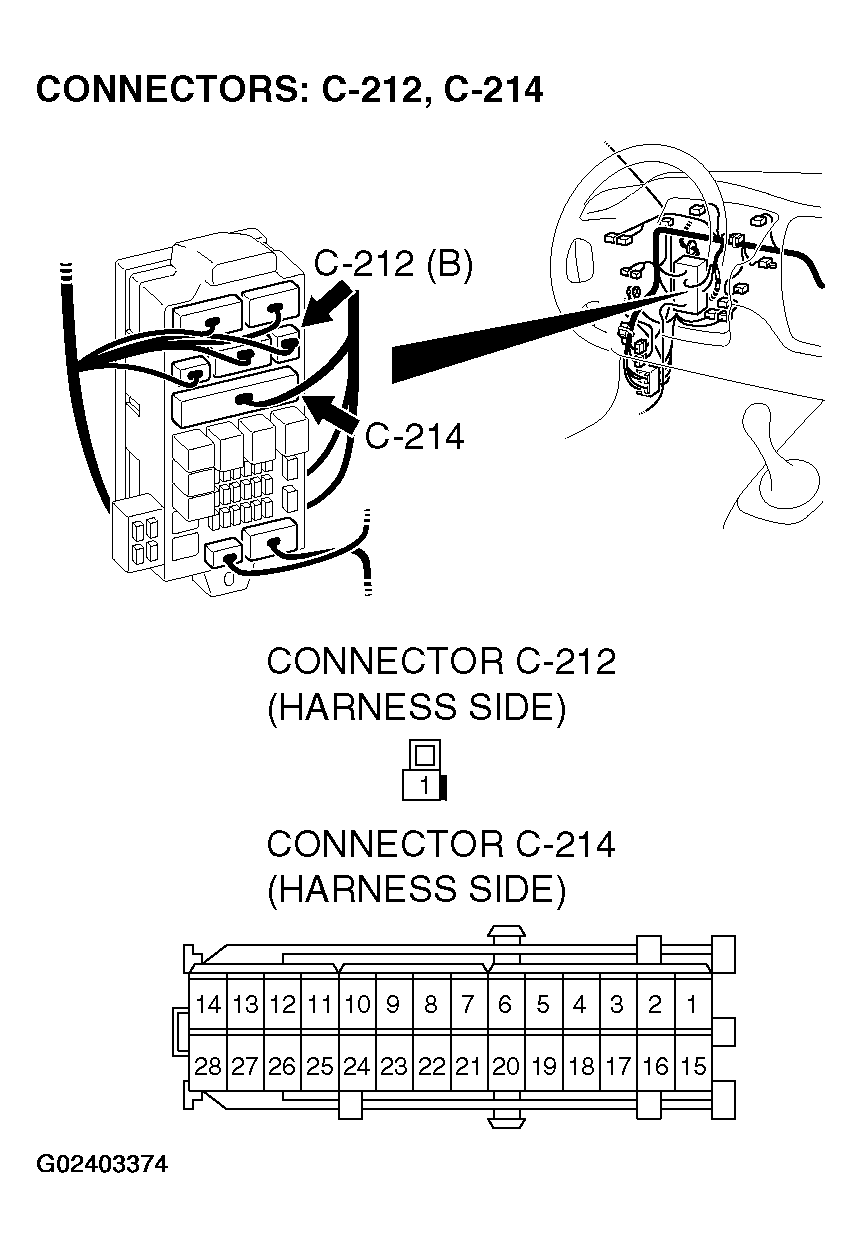

      Fig 3: Identifying Junction Block Connectors C-212, C-214
      G02403374Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    • Intermediate connector C-126

    Check the connectors for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are the connectors and terminals in good condition?

    • YES :  Go to Step 3.
    • NO :  Repair it and then go to  Step 7.

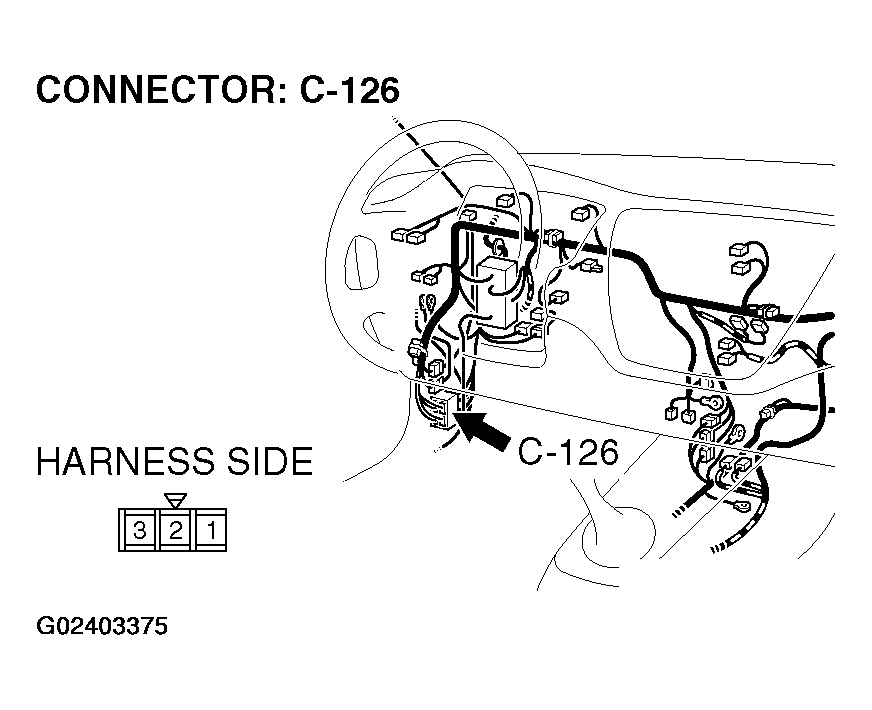

    Fig 4: Identifying Intermediate Connector C-126
    G02403375Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. STEP 3. Check the following harness wire.

    The wire between data link connector C-14 (terminal 16) and junction block connector C-212 (terminal 1)

    Q: Is the harness wire damaged?

    • YES :  Repair or replace it and then go to  Step 7.
    • NO :  Go to  Step 7.
    Fig 5: Identifying Data Link Connector C-14
    G02403376Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

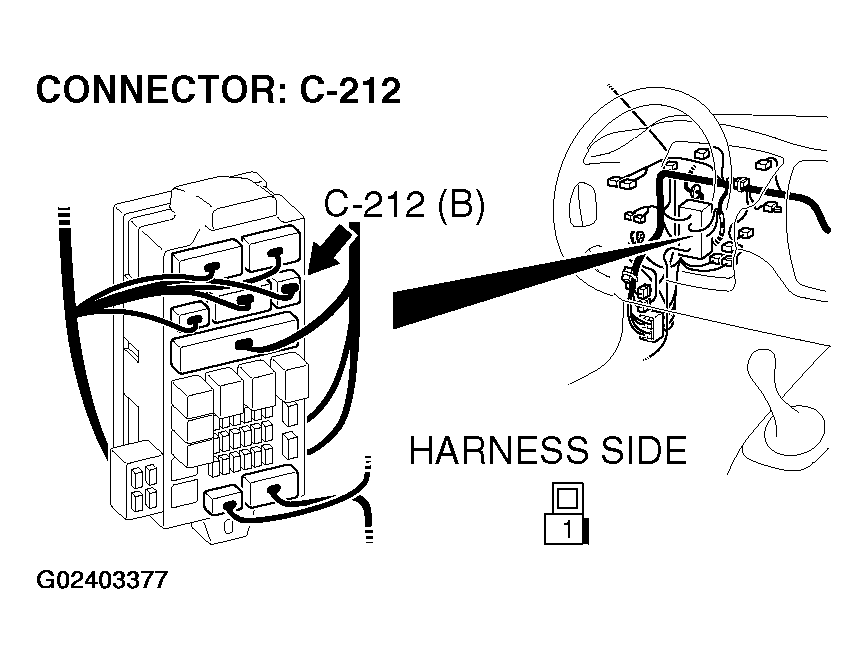

    Fig 6: Identifying Junction Block Connector C-212
    G02403377Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. STEP 4. Check the ground circuit. Measure the resistance at data link connector C-14.

    Measure the resistance between terminal 4 and ground, and terminal 5 and ground. It should measure less than 2 ohms.

    Q: Is the resistance 2 ohms or less?

    • YES :  Replace the scan tool and then go to  Step 7.
    • NO :  Go to Step 5.

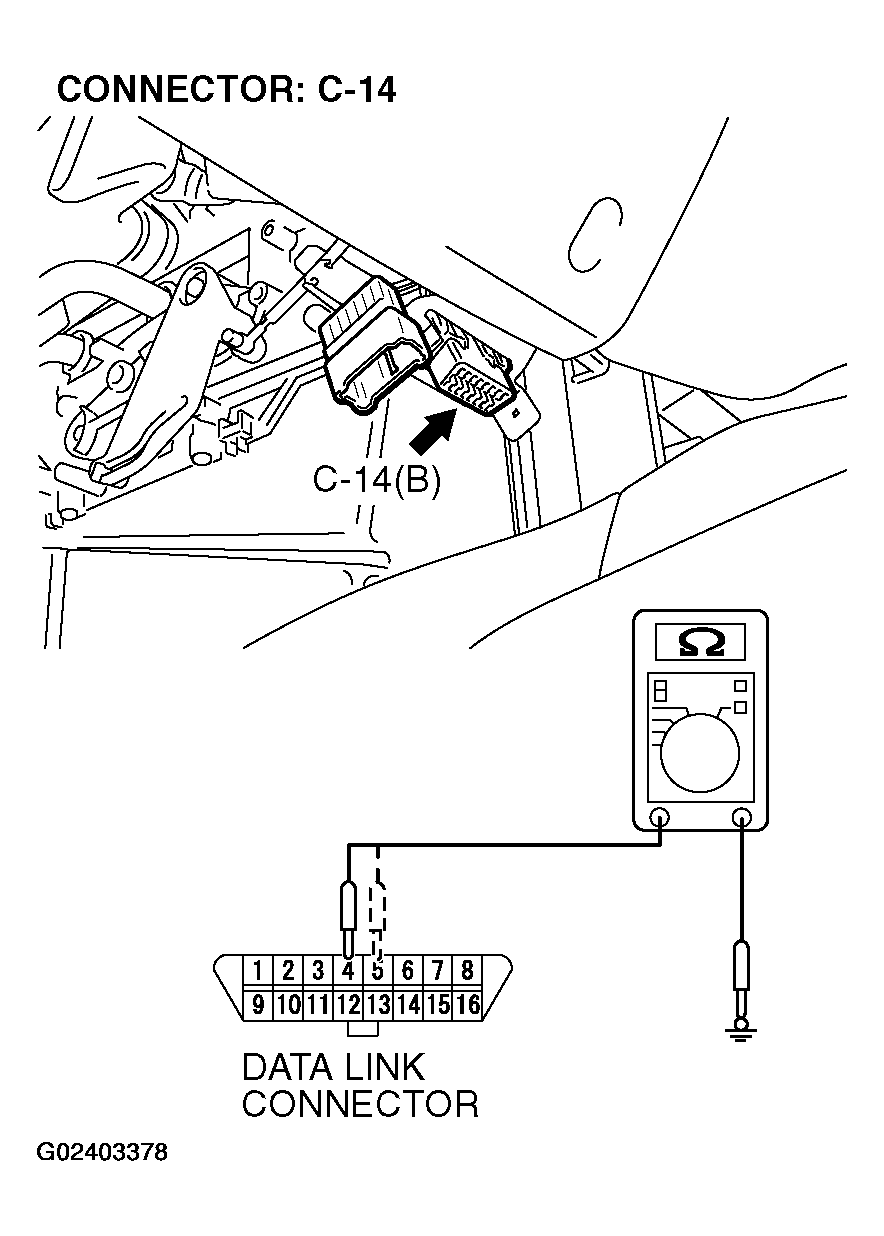

    Fig 7: Measuring Resistance Between Connector C-14 Terminal 4 And Ground
    G02403378Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. STEP 5. Check the following connector.
    • Data link connector C-14

    Check the connector, for loose, corroded or damaged terminals, or terminals pushed back in the connector.

    Q: Are the connector and terminals in good condition?

    • YES :  Go to Step 6.
    • NO :  Repair it and then go to  Step 7.
    Fig 8: Identifying Data Link Connector C-14
    G02403379Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. STEP 6. Check the following harness wires.
    • The wire between data link connector C-14 (terminal 4) and ground (No. 7)
    • The wire between data link connector C-14 (terminal 5) and ground (No. 7)

    Q: Is any harness wire damaged?

    • YES :  Repair or replace it and then go to Step 7.
    • NO :  Go to Step 7.

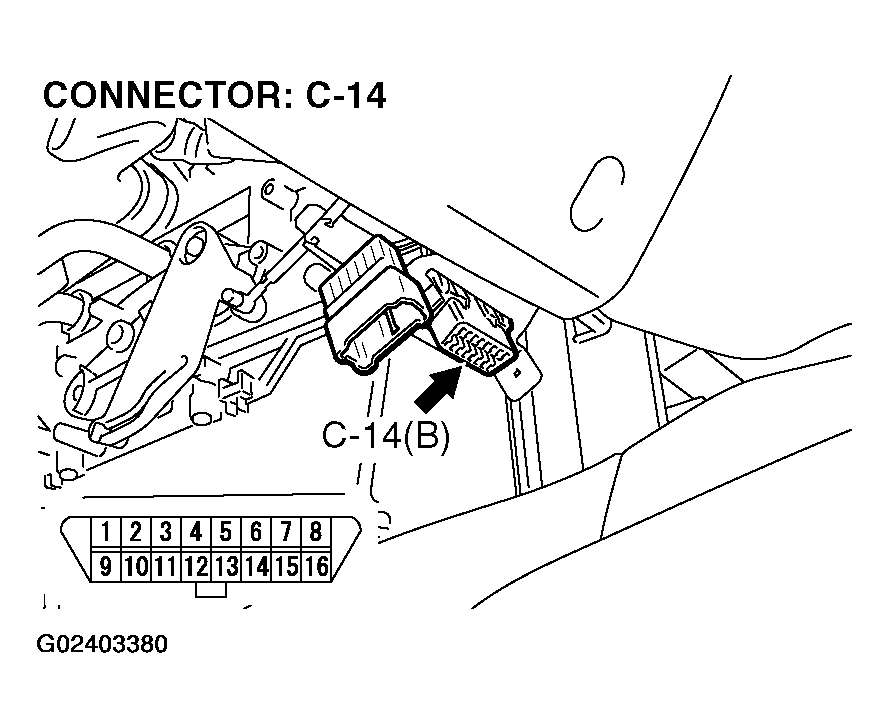

    Fig 9: Identifying Data Link Connector C-14
    G02403380Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

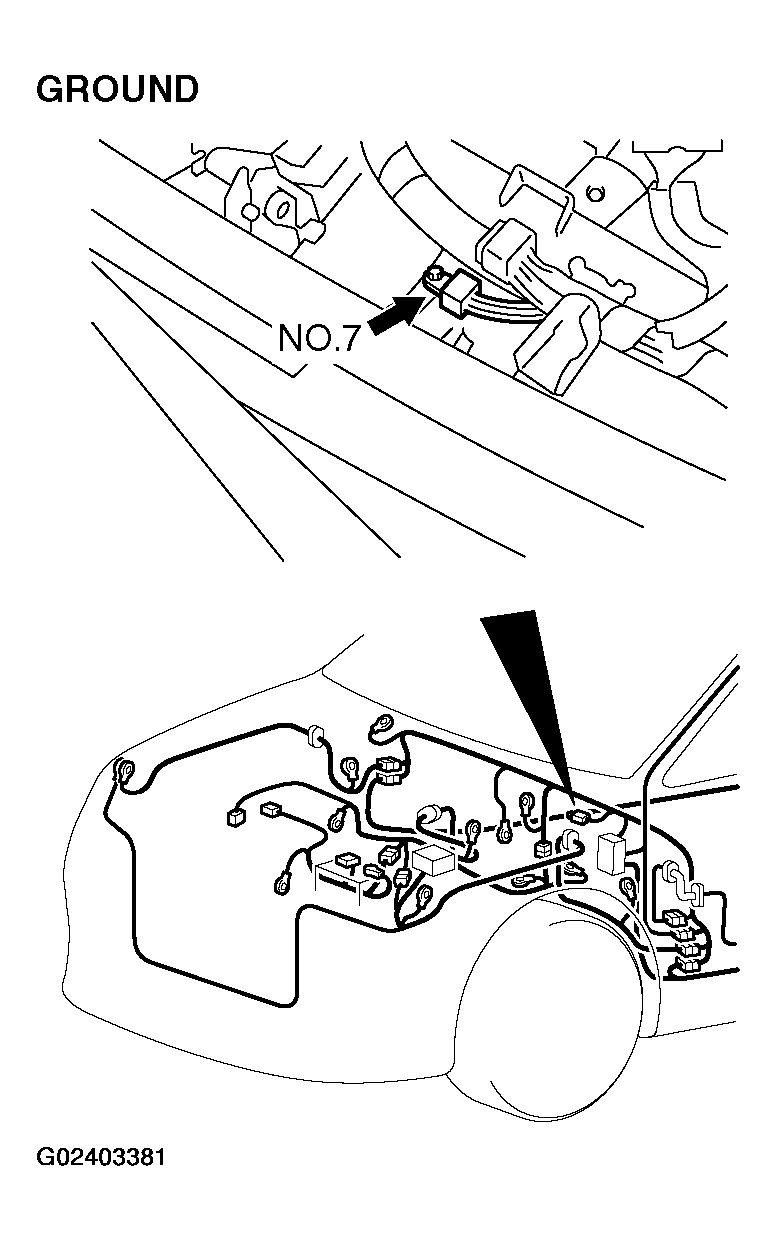

    Fig 10: Identifying Harness Connector
    G02403381Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. STEP 7. Retest the system.

    Q: Does the scan tool communicate with the whole system?

    • YES :  The procedure is complete.
    • NO :  Return to Step 1.
