INSPECTION PROCEDURE 6: The Neutral Position Learning of the Steering Angular Velocity Sensor is not Detected.: Notes

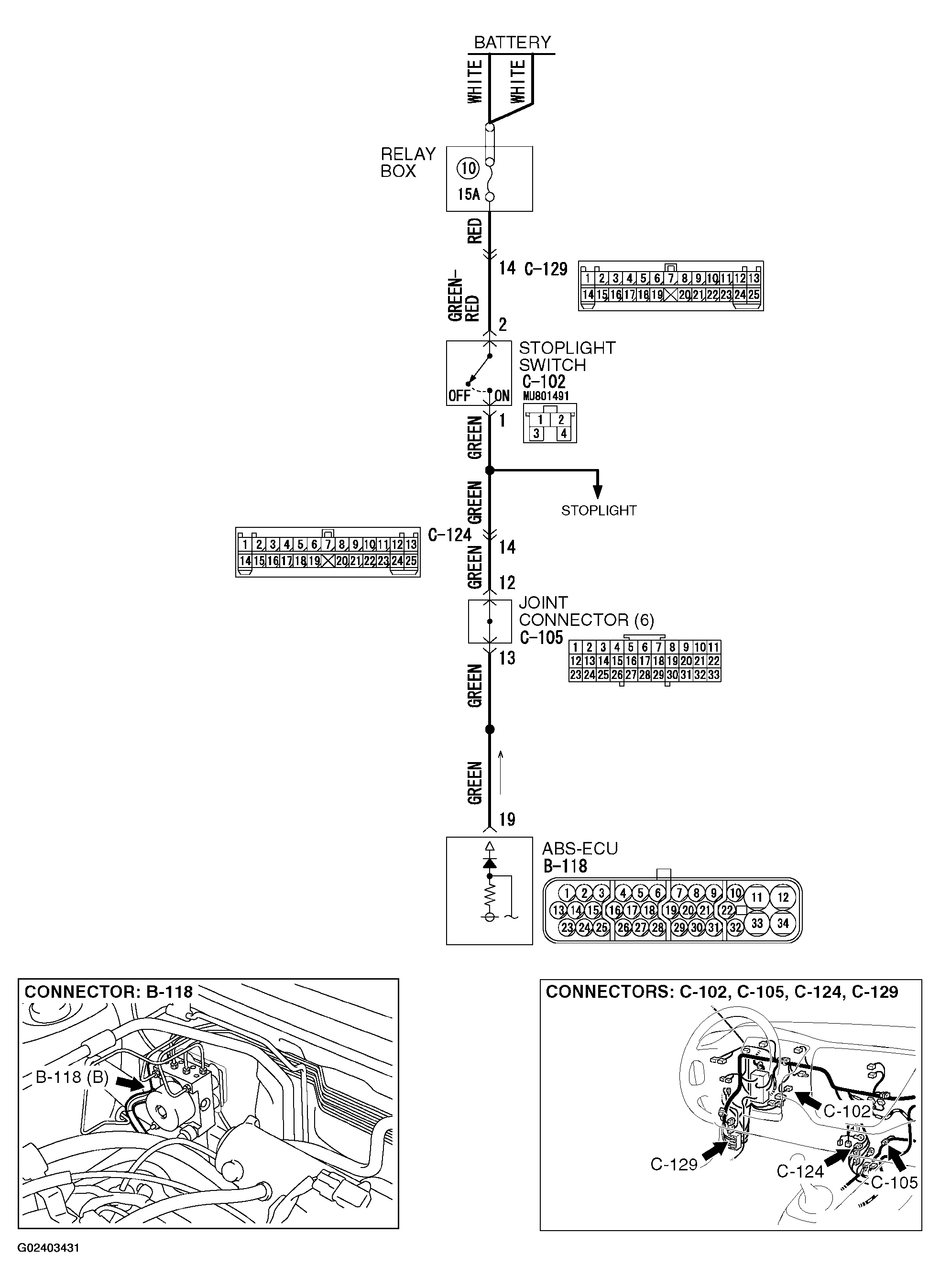

Fig 1: Stoplight Switch Circuit (1 Of 2)
G02403431Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

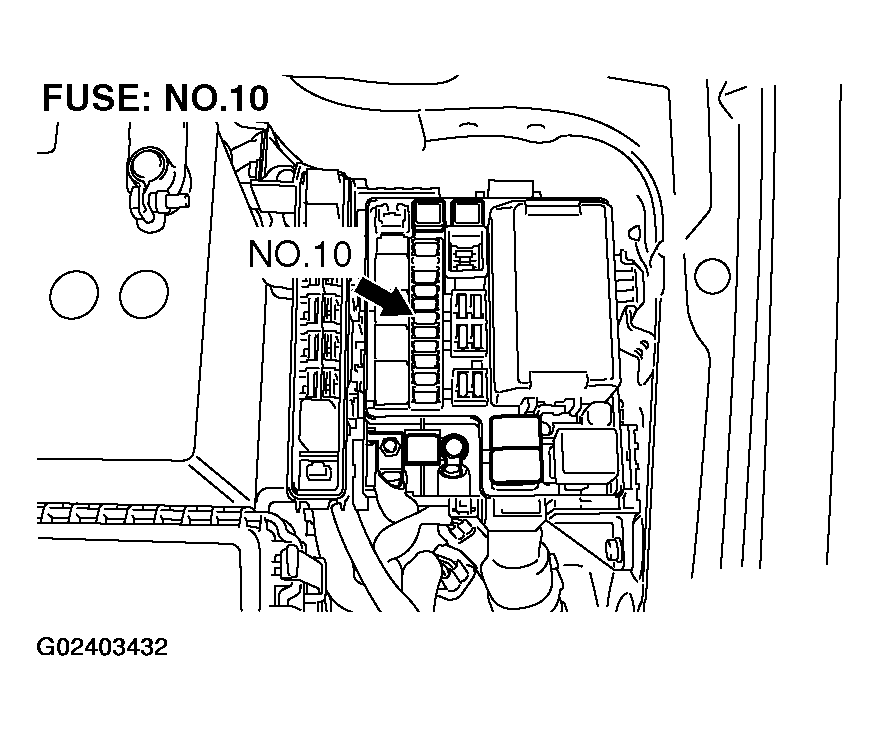

Fig 2: Stoplight Switch Circuit (2 Of 2)
G02403432Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
