<< A >> Front Wheel Hub Assembly Removal

  1. If the front wheel hub is seized, remove the knuckle together with front wheel hub and fix them with a vise.
  2. Use special tools MB990244(MB990241), MB991354 and MB990211 to pull out the front wheel hub from the knuckle.

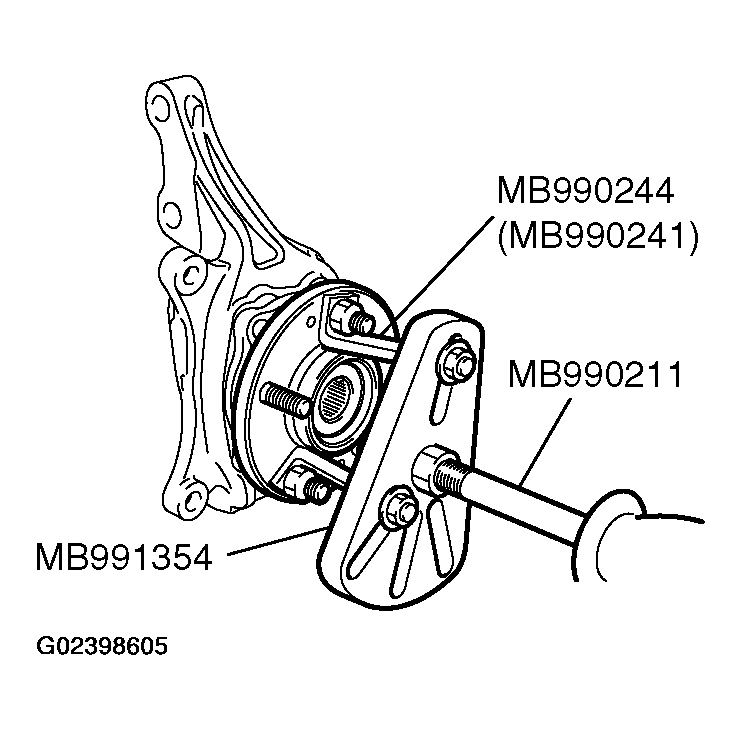

    Fig 1: Pulling Out Front Wheel Hub From Knuckle
    G02398605Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
