INSPECTION PROCEDURE A-3: Communication With The ETACS-ECU Is Not Possible.: Notes

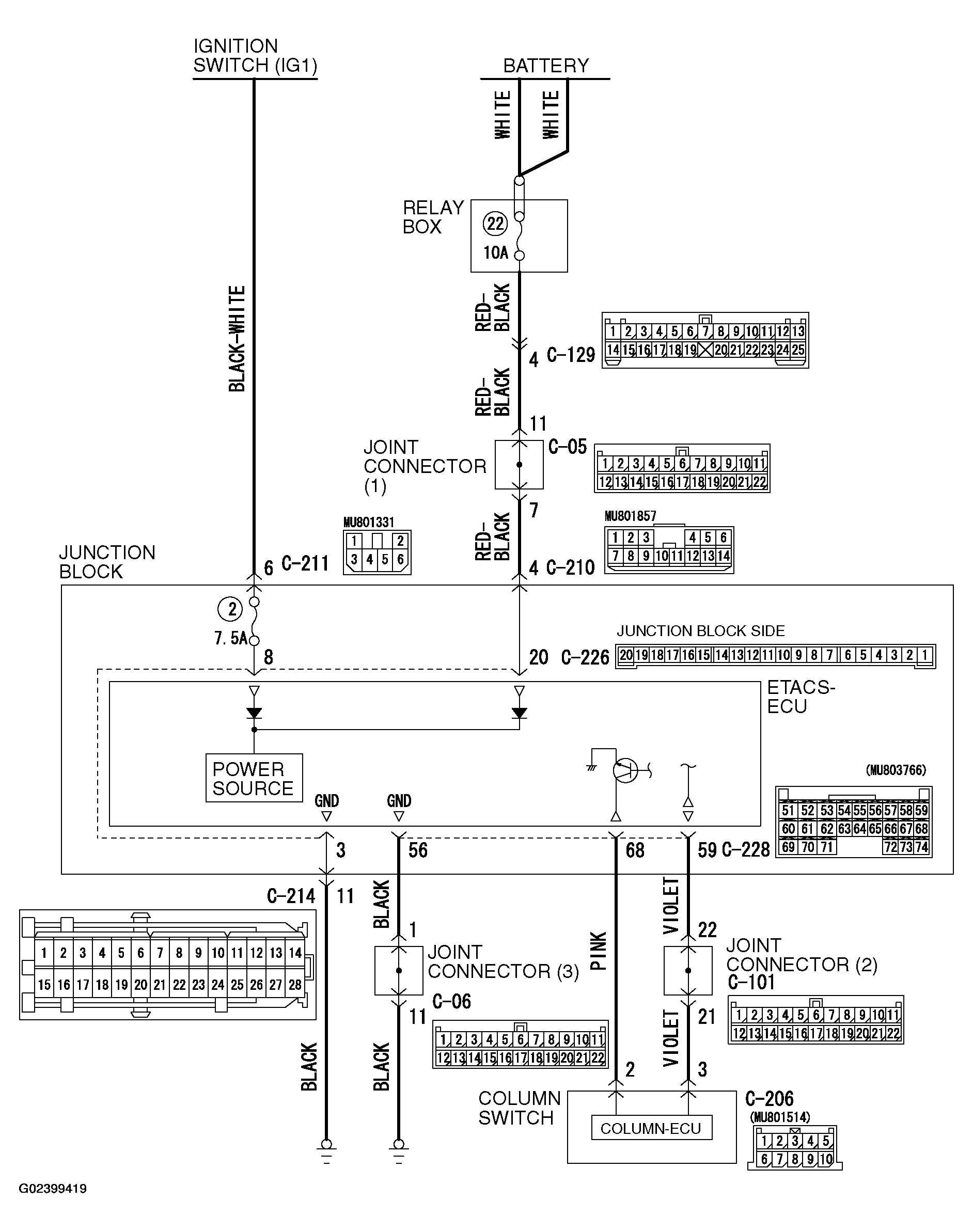

Fig 1: ETACS-ECU Power Supply And SWS Communication Circuit Diagram
G02399419Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

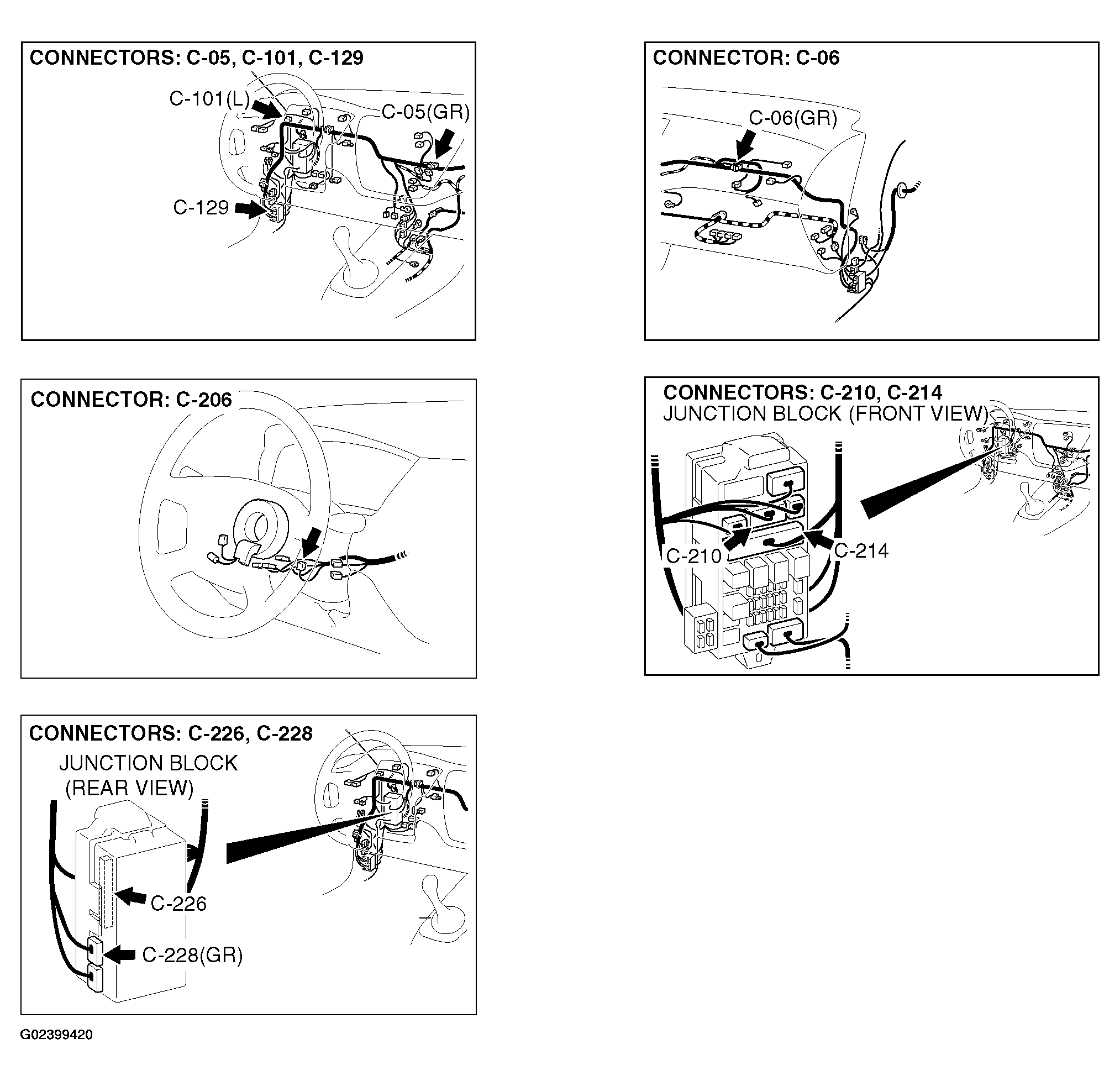

Fig 2: Identifying Connectors
G02399420Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
